Remote Control Application Board creates 2-way wireless link.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Nov 21, 2012 Bi-directional control device, BL118, uses half duplex radio transceiver to establish 2-way wireless link for remote control applications. Radio link operates continuously, providing valid communication link indication; boards are used in pairs, master/initiator and slave/responder; and relays are activated when state of input on one board changes and vice-versa. With 10 mW BiM1-173.225-10 module fitted, average current consumption is 1 mA (relay off), achieving 500+ m open-field range.

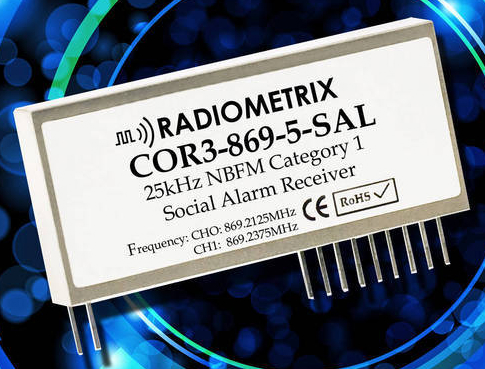

Multi-Channel Radio Receiver Module is Category 1 compliant.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Nov 01, 2011 Intended for social alarm applications, COR3-869-5-SAL receiver complies with EN300-220-2 V2.3.1 (2010-02) Category 1 standard. This 32-channel receiver is available on license-exempt European 869.2-869.250 MHz sub-band for Social Alarms as well as custom frequencies between 865-870 MHz. When paired with EST3 transmitter, wireless data link with 500+ m range can be achieved. With 25 kHz channel spacing, narrowband receiver has receive sensitivity of -120 dBm typ and incorporates RSSI.

RF Transceiver operates in 869 MHz frequency band.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Dec 09, 2010 Utilizing pan-European 869.4-869.65 MHz allocation, Model FPX3-869-20 offers ½ W RF power output in 67 x 30 x 12 mm footprint. Receiver circuits, featuring -115 dBm sensitivity and 80 dB blocking, enable adaptable data link transceiver to achieve range of over 3 km. Basic 20 kbps module operates on 1 of 2 user-selectable channels and features Rx-to-Tx switching time under 3 msec. Requiring +5 V supply, module draws 50 mA in receive and under 450 mA in transmit.

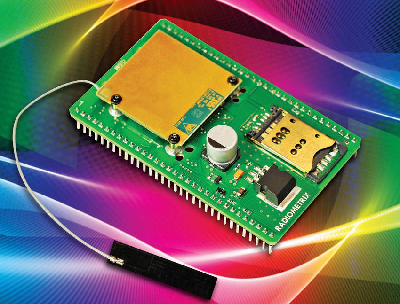

GSM/GPRS Platform integrates into variety of systems designs.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Oct 29, 2010 Designed to support Cinterion M2M Evolution GSM modems, self-contained Model GTC01 features plug-in module form factor with PIC-based, 8-bit Flash microcontroller watchdog IC; SIM holder; RS232-compliant serial interconnections; and set of user interfaces. Device supports SMS messaging, emailing, and voice, as well as web connectivity through TCP/IP stack. Housed in 51 x 84 mm DIL package, module requires 5-13.8 Vdc supply and draws less than 40 mA when inactive.

Code-Hopping Receiver enables secure RF remote control system.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Sep 07, 2010 Offered with basic antenna included, Model KDEC uses 32-bit encrypted hop-code, which is encrypted using 64-bit manufacturer code and 28-bit serial number for security. Decoder has standard frequency of 433.92 MHz and is optimized for use with KFX2 key-fob transmitters or KTX2 transmitter modules. Powered by 9-16 Vdc supply, receiver is suitable for security/alarm systems, status reporting/monitoring secure systems, industrial controls, HVAC controls, and wireless door entry systems.

Radio Modems operate on European 433 MHz ISM band.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Aug 13, 2010 Acting as transparent serial cable to attached host, TXL2/RXL2 Modules provide preamble, synchronization, bit balancing, and error checking along with automatic noise squelching. Simplex, multi-channel OEM radio modems feature baud rate of 9,600 bps, transmit power of +10 dBm at 10 mW, and receiver sensitivity of -107 dBm for 1% BER. For multiple radio systems, TXL2/RXL2 can be set to 1 of 8 unique addresses and allow operation on 1 of 5 pre-set frequencies in 433 MHz band.

RF Board enables remote control applications.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Aug 10, 2010 Suited for industrial/commercial telecommand applications, Model CTA88 provides 8-channel digital I/O implementations of remote control functions, using multichannel UHF/VHF band or single frequency FM band wireless radio modules. Unit consists of 2 CTA88-000-DIL chips, CTA88 encoder, CTA88 decoder, ¼ wavelength monopole or helical antennas, 4 jumpers for mode configuration, DIP switches for address and frequency channel configuration, 8 opto-isolated digital inputs, and 8 relay outputs.

UHF Narrowband Transceiver supports data rates up to 10 kbps.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
Jun 18, 2010 Optimized for industrial environments, NTR2 module delivers RF power output of 10 dBm and receiver sensitivity of -118 dBm, with usable range extending beyond 500 m. It conforms to ETSI EN 300 220-3 and EN 301 489-3 standards and has operating temperature range of -10 to + 60°C. Available in 434.075, 434.650, and 458.700 MHz versions, and in customized options across 433 MHz (EU) and 458 MHz (UK) license-exempt bands, module consumes only 20 mA for transmitting and 15 mA for receiving.

Transmitter/Receiver Modules offer remote control switching.

Radiometrix Ltd.    Watford Hertfordsh, WD19 5EZ
May 11, 2010 Narrowband VHF/UHF CXR receiver has better than -118 dBm usable calling sensitivity and draws 20 mA from 3.1-15 V rail. Matching CXT transmitter is offered in 10 or 100 mW version to meet specific band regulations. Providing remote control switch function without need for external circuitry, modules support data rates of up to 5 kbps and provide 32 frequency channel operation in UK, Australia, and EU frequency bands. Units have range of up to 1 km in operating temperatures from -20 to +55°C.
