Latest New Product News from DSL
Industrial Panel PCs can be DIN rail mounted if required.DSL Hertfordshire, SG6 1LP
Aug 10, 2012 With Socket G2 support, ACS-2695 Series can run 2nd Generation Intel Core i7, i5, or i3 processors with Intel QM67 PCH chipset and two 204-pin DDR3 SO-DIMM from 4 GB single slot, up to 16 GB 1,066/1,333 MHz. Storage is supported by two 2.5 in. SATA HDDs and external CompactFlash slot, while PCIe and PCI slots provide expansion. Operating from 9-32 Vdc power input, fanless PCs include 4 serial ports and 4 USB 2.0 ports along with dual GbE LAN, DVI-I, and HDMI.
Embedded HMI Computer meets needs of diverse applications.DSL Hertfordshire, SG6 1LP
Jul 05, 2012 Powered by 1.8 GHz dual core Intel® Atom(TM) D525 processors, fanless AHM-6XX6 series includes 8-19 in. panel computers with resistive touchscreens and 2 GB DDR3 RAM. Flexible storage is provided via 2.5 in. removable SATA HDD and CompactFlash socket, while connectivity is fostered by Gb LAN, 4 USB ports, and 3 serial ports. Supporting Windows® OS, HMIs have IP65-rated front panels and can be VESA wall mounted or panel mounted with 12 Vdc or optional 11-32 V input.
Panel PC combines Intel Core 2 Duo power, HD resolution.DSL Hertfordshire, SG6 1LP
Jun 12, 2012 Equipped with 21.5 in., high-brightness TFT LCD and Intel® Core(TM) 2 Duo/Quad CPU with up to 4 GB RAM, APC-3228 suits industrial and factory automation and control applications. IP65-sealed resistive touchscreen display provides 1,920 x 1,080 resolution, and CRT, DVI-D, and HDMI outputs are also available. Designed to be VESA or panel mounted, PC offers dual Gigabit LAN, PCI expansion slot, COM port, 4 USB 2.0 ports, and 3 serial ports as well as support for 2.5 in. HDD or CompactFlash.

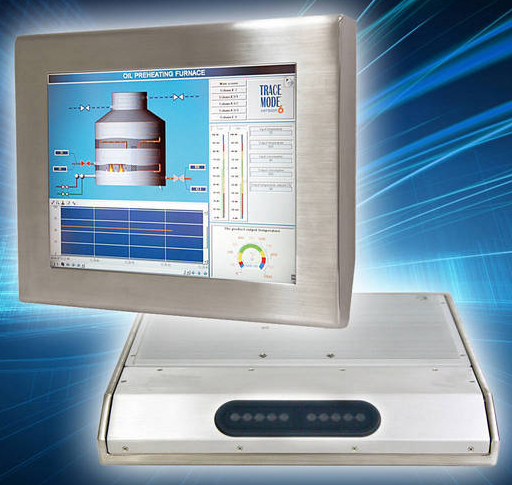

Stainless Steel Panel PCs feature capacitive touchscreen.DSL Hertfordshire, SG6 1LP
May 10, 2012 Constructed with IP65-rated stainless steel housing and full flat bezel, APC-3x92 Series is available with 15 or 19 in. resistive touchscreens or advanced projective capacitive touchscreen technology. Units are based on fanless, 1.8 GHz Intel Atom dual core CPU with up to 2 GB RAM. For connectivity, PCs are equipped with 2 USB 2.0 ports and 2 serial ports along with 10/100/1000 Mbps LAN and optional support for WiFi and Bluetooth.
Fanless Panel PCs suit jobs not requiring full IP65 rating.DSL Hertfordshire, SG6 1LP
Apr 12, 2012 Available with 15 or 19 in. LCD resistive touchscreens, APC-3x82 and AP-3x83 dual-core Intel® Atom(TM) D525 PCs feature 2 GB onboard RAM. Model APC-3x82 is fully IP65 rated apart from rear I/O ports, which have rubber cover with IP42 rating. Ports include dual 10/100/1000Mbps LAN, 4 USB 2.0, and 2 serial. Standard storage options include 2.5 in. HDD bay and internal CompactFlash drive. Slot provides optional external high-speed industrial Compact Flash card.
Waterproof Panel PCs are IP65 rated.DSL Hertfordshire, SG6 1LP
Mar 15, 2012 Offering 8, 12, and 15 in. models, ruggedized APC-3x98 panel PCs include waterproof LCD touchscreens and stainless steel chassis. Computer features low power consumption, based on fanless 1.1 GHz Intel® Atom(TM) Z510P or 1.6 GHz Z530P processor and 1 GB DDR2 with 400 MHz memory on board. Connectivity provides flexibility with 10/100 Mbps Ethernet LAN, two USB 2.0 ports, up to two serial ports, one DB-9 RS-232 port, and one RS-422/485 port.

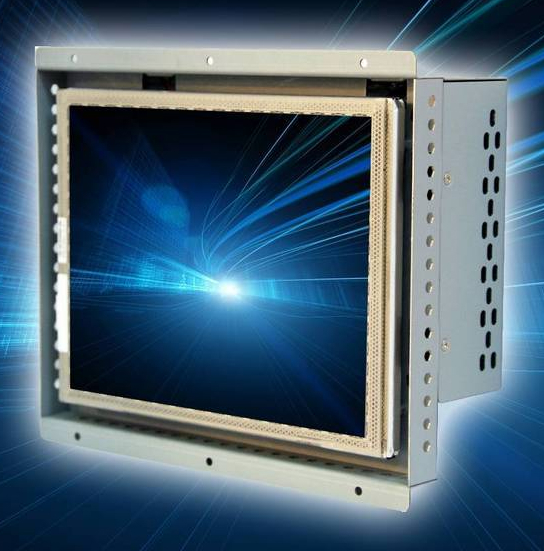

Fanless Panel PC features open frame design.DSL Hertfordshire, SG6 1LP
Feb 02, 2012 Suited for diverse applications, OPC-5xx7 panel PCs are available with 8, 12, 15, or 19 in. LCD screens with resistive touchscreen options. Each PC is powered by fanless 1.6 GHz Intel® Atom(TM) CPUs with up to 2 GB RAM on solid capacitor motherboard. In addition to support for CompactFlash or SATA HDD and 11-32 Vdc input, products offer dual 10/100/1000 Mbps LAN, 4 USB 2.0 ports, and 3 serial ports to accommodate connectivity requirements.
Flat Panel PCs feature NEMA4 IP65-compliant design.DSL Hertfordshire, SG6 1LP
Jan 09, 2012 Built around Samsung S3C2440A-40 400 MHz CPU and SI SM502 graphics controller, AHM 6xx0 Series features 128 MB SDRAM and 16 MB video memory. SD/SDHC Plug and Play card slot provides up to 32 GB of additional storage. Housed in steel chassis with VESA mount, PCs are available with 5.7, 8, 10.4, or 12 in. molded plastic front panels and optional resistive touchscreens. Interfaces include 9-32 Vdc input, 2 DB9 com ports, 2 USB 1.1 host ports, RJ45 LAN port, and line out.
Embedded Controller offers applicational flexibility.DSL Hertfordshire, SG6 1LP
Dec 12, 2011 Featuring 800 MHz Vortex86DX CPUs with up to 512 MB DDR2 RAM, ICOP-6326 x86 embedded controllers are suited for applications in data acquisition, industrial automation, process control, intelligent vehicle management, and robotics applications. Connectivity options, in addition to 16-bit GPIO, include triple 10/100 Mbps LAN, 4 serial ports, and 3 USB ports. This is further complemented by CompactFlash socket, LCD/LVDS interfaces, and redundancy capabilities.

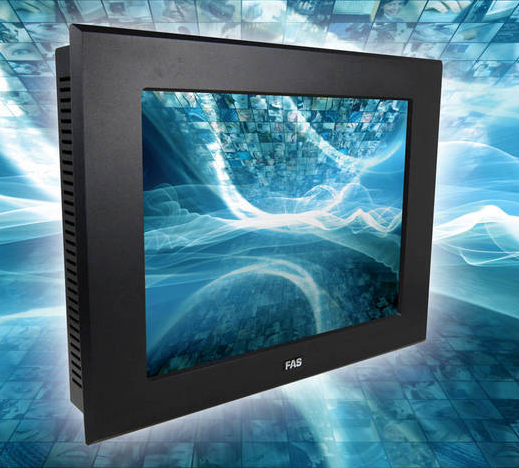

Panel PCs support CAN and WiFi.DSL Hertfordshire, SG6 1LP
Nov 28, 2011 Available in 7 and 15 in. versions with IP65-rated touchscreen, Model FASXX0-A16B is built around fanless 1.6 GHz Intel Atom CPU with up to 2 GB RAM. Screen resolutions are 800 x 480 for 7 in. model and 1,024 x 768 for 15 in. model. For connectivity, LCDs offer 10/100 Mbps LAN along with 4 USB 2.0 ports and single RS232 serial port. Suited for automotive applications and distributed industrial systems, PCs additionally support AC'97 audio, SSD and hard disk storage, and CF socket.
