Gloss Meters facilitate QC in surface finishing lines.

TQC BV    Zevenhuizen,
Oct 22, 2012 Offered in 3 models, TQC Gloss Meters measure specular reflection of surface, allowing user to define gloss level of that material. Sologloss, Duogloss, and Polygloss measure at angles of 60°, 60°/20°, and 60°/20°/85°, respectively. Hybrid aluminum and composite frame offers precision and stability for optics and LED light source, while ultra-clear OLED display placed at 35° angle ensures optimal readability in all positions. With TQC Ideal Finish Analysis Software, users can analyze results via PC.

Hull Roughness Gauge produces survey reports in MS Excel®.

TQC BV    Zevenhuizen,
Aug 24, 2012 Featuring 4-way directional push button control, Model DC9000 measures roughness during in-docking and out-docking surveys. Sensor, equipped with 3 non-slip wheels and carbide tipped stylus, is moved over ship's hull horizontally, collecting series of 12 measurements each. Statistics, time/date, and location of each series as well as average hull roughness are automatically calculated and stored in instrument's internal memory, which connects to PC via USB connection.

Wet Abrasion Scrub Tester offers adjustable parameters.

TQC BV    Zevenhuizen,
Mar 09, 2012 Serving paint and coatings industry, TQC wet scrub washability tester can be used to test various materials, such as hiding power test charts, scrub panels, as well as metal, plastic, or wood panels/parts. Settings are pre-set in machine for ISO and ASTM standards, but all parameters are fully flexible. Cycle speed (1-60 strkes/min), stroke length (2-300 mm), pump volume (0-3 mL/min), number of cycles, and test duration can all be set digitally by operator.

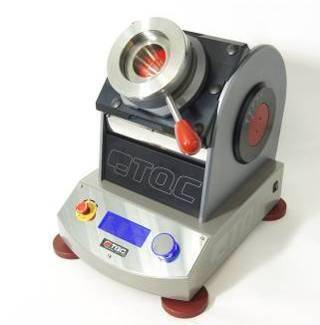

Cupping Testers offer micrometer accurate calibration.

TQC BV    Zevenhuizen,
Sep 09, 2011 By performing cupping test on coated steel panels, Cupping Testers define resistance of paint, varnish, or related products to cracking and/or detachment from metal substrate when subjected to gradual deformation by indentation under standard conditions. With complementary color selection, defects in coating will manifest as lines, cracks, or marks in different colors. Testers are driven by micro-step controlled electro motor, which allows precise and steady deformation with 0.01 mm steps.

Automatic Film Applicator applies paint, lacquers, and varnishes.

TQC BV    Zevenhuizen,
Oct 25, 2010 Designed to meet demands of paint and coatings laboratories, TQC Automatic film applicator offers ergonomic features that eliminate multiple standard operating procedure steps. Automatic chart clamp secures and releases test chart, and holder for applicator returns automatically after application. Along with adjustable speed (0-500 mm/s), length, and start/stop positions, features include multi-lingual, menu-driven interface and capacities for test charts as large as A3+.

Dust Test Kit offers reports for blast cleaned surfaces.

TQC BV    Zevenhuizen,
Aug 14, 2009 Used for inspecting pre-treatment quality during protective coating jobs, SP3200 kit assesses quantity and size of dust particles on blast-cleaned surfaces prior to painting according to ISO8502-3 standard. Ergonomic solution contains all required tools, such as specified adhesive tape, pictorial standard to define dust quantity and size, illuminated magnifier, scissors, tape-transfer sheet, and set of report forms for permanent record keeping of sample findings.
