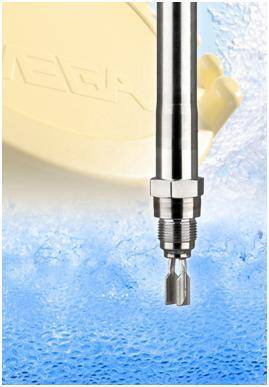

Tuning Fork Level Switch is unaffected by product properties.

VEGA Controls Ltd    West Sussex, RH15 9NF
Feb 04, 2013 Available in lengths up to 6 m, VEGASWING 66 is designed for self monitoring and fail safe switching in process temperatures from -196 to +450°C and pressures from 0–160 bar. Unit comes in 316L, Inconel, and Hastelloy and can be installed in any orientation. Integrated monitoring capabilities allow accreditation to SIL2 and EN steam boiler regulations and remote test is also available. Other applications include distillation columns in oil/gas industry and cryogenic liquid gas tanks.

Guided Wave Radar Sensors offer level and interface measurement.

VEGA Controls Ltd    West Sussex, RH15 9NF
Sep 06, 2012 Suited for use in both liquid and solids, VEGAFLEX 80 Series provides automated overfill protection, dynamic echo tracking, dielectric/moisture content monitoring, and probe length/condition detection. Optional automated set up wizard optimizes sensors to level, interface, and dielectric measurement. Available with upgraded sealing and hygienic designs, devices offer choice of output protocols such as twin analog outputs for interface and top level, HART, Profibus, FF, and Modbus.

Remote Monitoring System measures level and pressure.

VEGA Controls Ltd    West Sussex, RH15 9NF
Jun 10, 2011 Transmitting and receiving unit, PLICSMOBILE, is available as integrated module for plics®plus sensor generation or as standalone instrument PLICSMOBILE T61. Latter can be powered from existing signal cable, by battery, or other renewable energy source. SIM card and integrated modem allow worldwide data transmission via mobile network GSM/GPRS, including dial in remote diagnosis and service using PACTware FDT/DTM software. For flexible deployment, energy system manages any battery supply.

Radar Level Sensor measures level of water and sewage.

VEGA Controls Ltd    West Sussex, RH15 9NF
Feb 03, 2011 Utilizing radar electronics, VEGAPULS WL 61 performs measurement independent of temperature, high winds, fog, or rain, and can be deployed into crowded pumping chambers. Featuring sealed cable and IP66/68 rated housing, sensor can directly connect to existing fieldbus systems or be loop-powered from signal conditioning instrument for pump control. Integrated sensor linearization curves can be programmed using FDT/DTM software, allowing direct output of flow rate in open channels.

Solids Level Transmitter features 30 m rage.

VEGA Controls Ltd    West Sussex, RH15 9NF
Nov 16, 2010 Effective over 30 m range, VEGAPULS SR68 radar level trasnmitter offers process connections in threaded, flanged, and aiming swivel mountings. It withstands temperatures up to 250°C and accommodates air purging option for cooling and cleaning when required. Additional features include ATEX Gas and Dust choices as well as 4-20 mA, multi-drop HART, fieldbus, and Ethernet communications.

Microwave Barrier Switch targets bulk handling industries.

VEGA Controls Ltd    West Sussex, RH15 9NF
Dec 14, 2009 Providing non-contact measurement, VEGAMIP Microwave Impulse Point-Level Switch consists of VEGAMIP T61 transmitter and one or several R61 receivers. Unit can be applied to bulk solids or liquid level detection in abrasive, aggressive, or high temperature applications. In case of metallic or conductive vessels, VEGAMIP can measure from outside through non-conductive microwave permeable window. Offering measuring range up to 100 m, VEGAMIP provides switching delays from 0.1-20 s.

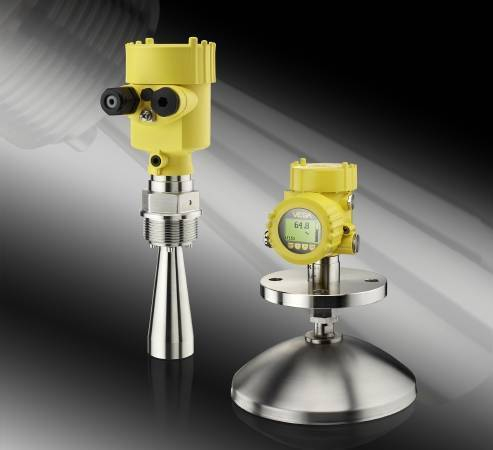

Radar Level Transmitter detects high definition echo details.

VEGA Controls Ltd    West Sussex, RH15 9NF
Sep 07, 2009 Using ultra-fast microprocessors, plics®plus radar sensor delivers level output changes down to 250 m/sec. It features temperature range up to 450°C, tantalum and titanium antenna options, optimized in-head programmer/display, and plug-in terminal connectors. Offered with additional housings in stainless steel and plastic dual chamber format, unit is backward compatible with current software, housings, and antennas.

Signal Conditioner offers flexible operation.

VEGA Controls Ltd    West Sussex, RH15 9NF
Jun 17, 2009 VEGAMET 391 can monitor remote tanks for theft of product/leakage or link to multi-pump system to respond to demand changes. It can take single 4-20 mA analog or HART input and compute level, flow (with totalizer), distance, weight, or temperature. Up to 6 relay alarms can be configured for standard tasks as well as tendency monitoring, and 2 modes of operation lets users evenly utilize, monitor, and control pumps as well as send notification of any failure from up to 4 digital inputs.

Hydrostatic Level Transmitter has non-clogging design.

VEGA Controls Ltd    West Sussex, RH15 9NF
Sep 05, 2008 Suited for water/wastewater and bore hole level measurement, VEGAWELL 51 suspended hydrostatic level transmitter features flush-ended design with CERTEC sapphire ceramic diaphragm that prevents clogging even when suspended solids are present. Its 22 mm slim stainless steel body facilitates installation and removal in confined spaces, and PE-reinforced cable suspension fixings include sliding clamp or 1 in. BSP locking nut. Standard ranges cover 0-100 mbar up to 10 bar.

Level Transmitter offers remote housing option.

VEGA Controls Ltd    West Sussex, RH15 9NF
Apr 03, 2008 Available with rod or cable electrodes, VEGAFLEX guided microwave radar level transmitter uses 2, 5, or 10 m cable to connect to remote housing, which incorporates electronics, programming, and cable terminals. Straight axial and right-angled plugs are supplied on each end of connecting cable, allowing most suitable orientation and installation in confined spaces. Transmitter includes 4-20 mA and HART protocol, integral device data logging, and backlit display.
