Yamaha Offers Full Line of Robots for High Speed Pick and Place Operations
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
5123 West Chester Pike
Edgemont, PA, 19028
Press release date: January 24, 2008

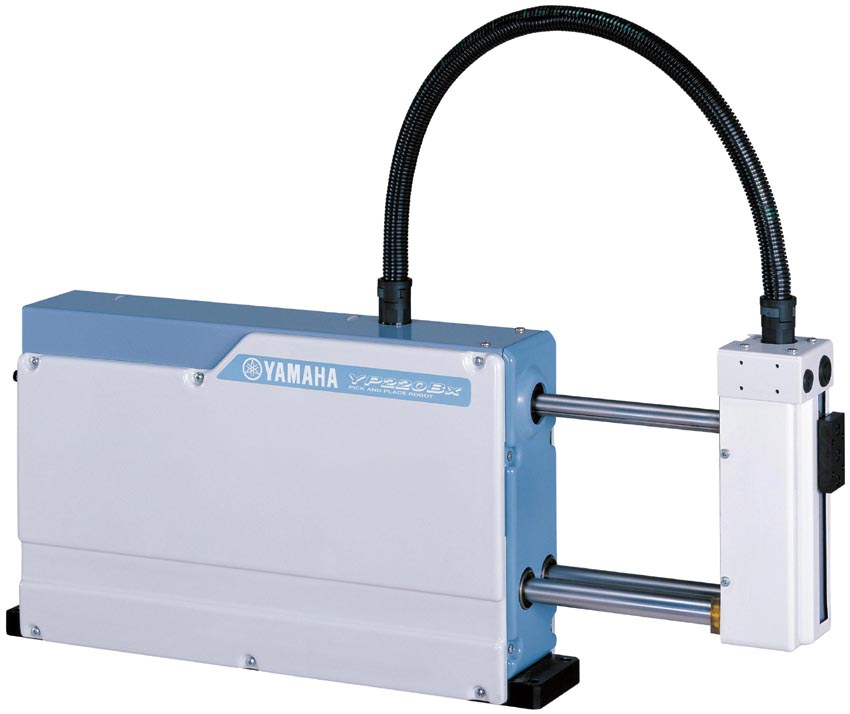

The YP-X Series from Yamaha Robotics offers six models, including 2 axes and 4 axes types, for high speed pick and place operations. Super high speed pick and place operation at 0.45 sec. cycle time provides extremely high productivity (YP220BX under operating conditions of 50 mm in vertical direction, 150 mm in longitudinal direction, 50 in arch volume and 1 Kg load). Since it is possible to output a signal to turn any external equipment on or off from any position while the axis is moving, the actual production cycle time is further reduced. Because of Yamaha's unique servo system, settings for the stop point and operation pattern can be programmed freely. This makes the YP-X Series ideal for applications where there are multiple items in a small lot, an operation that is difficult for cam-type robots to perform.
The YP-X Series includes models with both high speed performance and high precision of + 0.02 mm. Designed to be as compact as 109 mm in width (YP220B), it is possible to make the production line small and simple. The design of the moving arm structure eliminates peripheral interference and saves space when operating on an assembly line.
For more information call 610-325-9940, Fax: 610-325-9946, visit http://www.yamaharobotics.com or write Yamaha Robotics, PO Box 937, Edgemont, PA 19028.
CONTACT: DOUG DALGLIESH YAMAHA ROBOTICS 610-325-9940
