XYZ Nano-Positioning Stage for 3D Laser Lithography System |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Physik Instrumente (PI)
16 Albert St.
Auburn, MA, 01501
USA
Press release date: April 17, 2012
Auburn, MA - Piezo nano-positioning systems specialist PI (Physik Instrumente) provides a 3-axis nano-positioning stage that is employed in a novel laser lithography system by Nanoscribe GmbH. The lithography system can produce complex 3-dimensional structures, fully automatic and repeatable with a precision and flexibility previously unavailable. Sub-micron structures with sizes of up to 1 mm und widths to 150 nm are feasible
Piezo: The driving Force

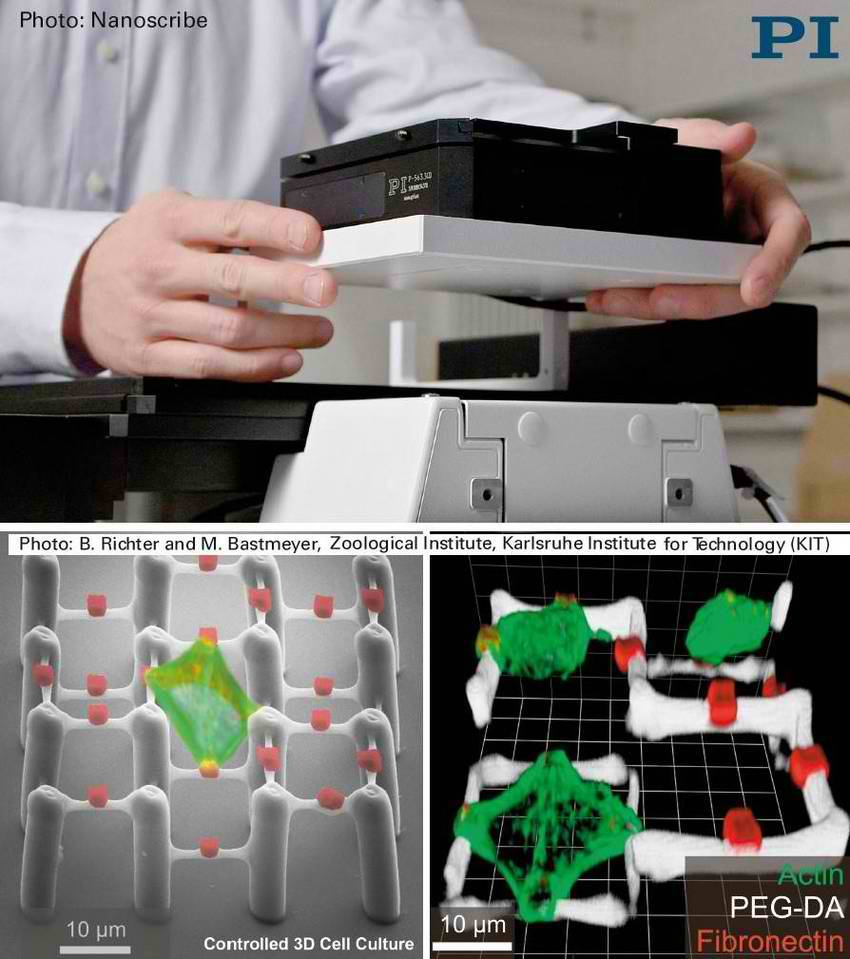

The driving force of Nanoscribe's laser lithography system is a PImars P-563 flexure-guided, piezo-driven nanopositioning XYZ stage from PI. It provides positioning ranges to 300x300x300 microns and nanometer range repeatability. A parallel-metrology position feedback system based on highly linear capacitive sensors is integrated and allows the sample to be moved precisely and repeatedly in relation to the laser focus. A digital piezo motion controller provides the necessary path control on a nanometric scale.
The high accuracy and fast response of the piezoelectric nano positioning stage makes it possible to equip surfaces with particular biometric characteristics or to create microstructures for small pumps and needles. Typical applications for 3D laser lithography are the creation of three-dimensional structures for cell biology.
More information on laser lithography for cell biology <br>www.nanopositioning.net/Nanopositioning_For_Biotechnology.htm
More information on XYZ piezo nano-positioning systems
http://www.nanopositioning.net/XYZ_nanopositioning_stage.php#P563
|
|
|
|
|
|
|
|
|
|
|
