Westermo Switches Used on Seattle Bus Fare Collection System
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
S 64040 Stora Sundby
Stora Sundby, Sweden
Press release date: August 21, 2007
The ERG Group, a world leader in the development and supply of integrated fare management and software systems for the transit industry, have chosen Westermo Ethernet switches to equip approximately 2500 buses operating in the Central Puget Sound Region of Washington State, around the city of Seattle. The new fare collection system provided by ERG will collect upwards of $250 million in annual passenger revenues from approximately 130 million passenger journeys per year. Low operating voltage and high reliability were the main criteria in the selection of the Westermo Ethernet switches.
The Central Puget Sound Regional Fare Coordination (RFC) Project features smart card technology that support and link all the fare collection systems of the major transit agencies operating in the Central Puget Sound region of Washington State. This includes King County Metro, Community Transit, Everett Transit, Kitsap Transit, Pierce Transit, Sound Transit and Washington State Ferries. King County is the largest one, gathering approximately 70% of the traffic flow that include buses. The RFC Project will consolidate hundreds of existing fare media in an effort to streamline the management of fare transactions and facilitate cross-jurisdictional and multi-modal trip making in the Puget Sound region.
The RFC Project allows customers to purchase or revalue regional fare cards (smart cards) from multiple outlets (e.g., customer service offices, phone, retail outlets, internet), and enables them to use the smart card on an estimated 2,379 fare transaction processors (2,207 on-board fare transaction processors, 91 stand-alone fare transaction processors, 81 portable fare transaction processors). The fare will be automatically debited from the available funds on the smart card account, and/or the card will be acknowledged as a fixed period unlimited ride pass. Each time a card is used, data relating to the date and time the card is used, the amount of fare paid, any incentives applied, the agency providing the service, the route, and if applicable, the institutional account, is captured and stored electronically. The fare transaction processors have the capacity to access information on the smart card and transfer data to a data acquisition computer. The regional revenue clearinghouse then performs transaction processing, revenue reconciliation, and financial reporting functions for the RFC system.

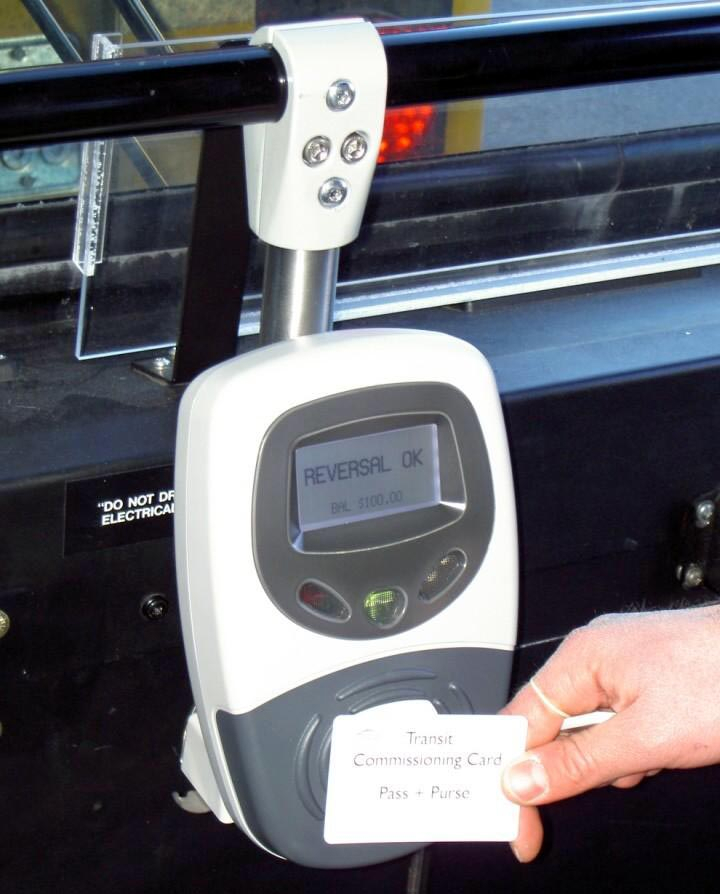

This new system is currently being installed by ERG with approximately 1000 buses now operating, and with upwards of 1500 more busses to be added later in 2007. Each bus is equipped with ERG's proprietary CP5000 Card Processor and Driver Display Unit (which is the bus driver interface). They then connect to the Westermo Ethernet switch as well as a Cisco wireless communication access point.
One of the key issues for on-board electronic devices in a bus is the low level of operating input voltage required. The SDW-550B that ERG has chosen is an unmanaged Ethernet switch that is designed to be a cost effective solution for harsh environment applications. One of the main characteristics of the Westermo switch is that it has a very wide input power range that goes from approximately 7 to 57 VDC. "We chose Westermo primarily due to the low operating voltage with which the device would continue to run. It runs down to around 7 volts which is excellent in a bus operating environment. When you start a bus, the engine cranks and draws a lot current from the battery. As a result, the battery voltage drops and any device that needs 8 or 9 volts may have trouble operating or reset."
"Vibration resistance inside of a bus technical box is another challenge. While Westermo's products are dedicated to demanding applications, an inductor and a couple of components have been re-enforced on the board with epoxy so as to ensure the highest levels of reliability" Said Christopher JEFFERIES, Deployment Manager at ERG.
"We particularly appreciated the ability of Westermo and Gross Automation, their US distributor, to customize the product and to give us the right level of technical support we needed. "
The SDW-550 has 5 TX (copper) 10/100 Mbit/s ports. These ports are set up for auto-negotiation of line speed and full or half duplex connection; however DIP switches do allow each port to be individually configured if necessary. All 5 ports support MDI/MDI-X which means there will never be a problem as to whether to use a standard or crossover patch cable. The connection at each TX port is individually isolated to help prevent earth loop problems within the network. The units have a wide DC power input range with polarity protection as well as being able to accept power from dual sources with an extended temperature range supported as standard, from -13°F to 185°F. For this application, ERG needed 3 ports, but the SDW-550 has two more, allowing additional RJ45 connectors to be plugged in from other on-board systems.
"At present Seattle is the only installation we have made in the US where Ethernet communications protocol is used. If ERG were to win any new projects that will require the use of an on-board Ethernet switch, we shall definitely consider the use of Westermo Ethernet products again." ends Christopher.
