WAGO 4-Channel Electronic Circuit Breakers Program Trip Characteristics and Current Monitoring |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
WAGO Corp.
N120 W19129 Freistadt Rd.
Germantown, WI, 53022
USA
Press release date: August 1, 2009

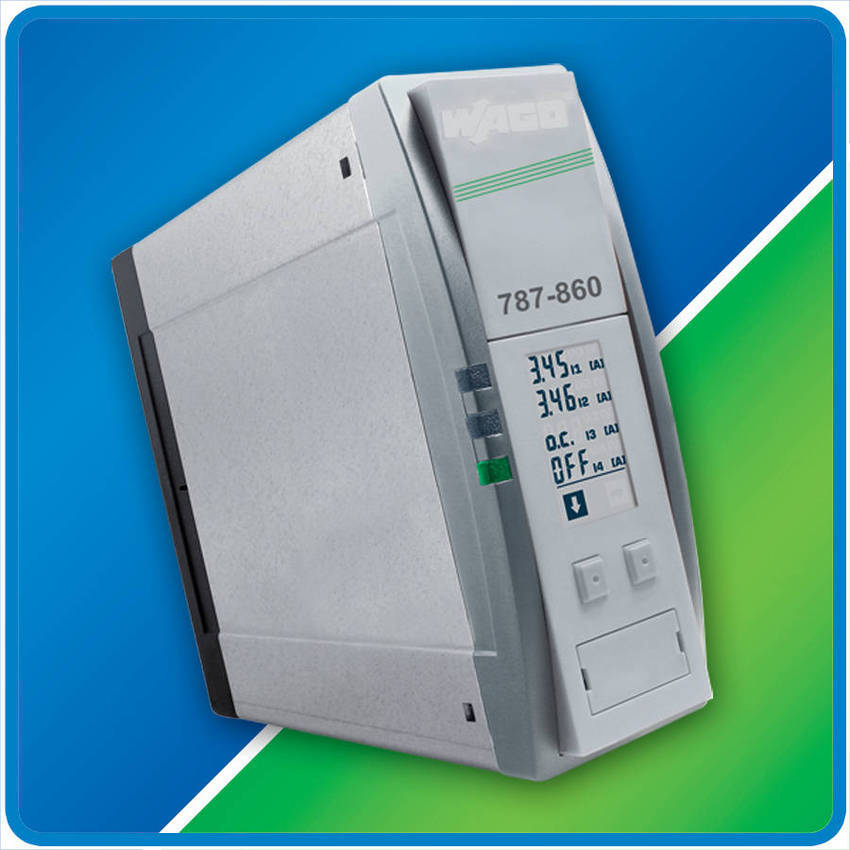

GERMANTOWN, WI - August 2009 - Three 4-channel Electronic Circuit Breakers have joined WAGO Corporation's 787 Series Power Supply System. The DIN-rail mount 787-860, 787-861 and 787-862 Electronic Circuit Breakers each separately protect up to four current paths (up to 10A at 24VDC max each), while offering independent programming of appropriate channel- or circuit-specific ratings and trip times via free 759-860 Configuration software.
In the event of a fault or short circuit, the Electronic Circuit Breakers can shut down the tripped channel within 100ms. Rather than halting the entire system, power is maintained to other loads (e.g., to a PLC on one path and HMI on another). This prevents a system-wide shut down, as well as possible data loss. Afterward, the tripped load may be remotely reset via a control input.
Through free 759-860 Visualization software (and available RS-232 cable) or on-unit LCD, the 787 Series Electronic Circuit Breakers provide independent channel monitoring of voltage, current, fault diagnostics and energy consumption. Additional Electronic Circuit Breaker features include four current channels w/delayed switching-in of channels (250ms/channel), rugged metal housing, LED status indication, signal outputs and CAGE CLAMP® Spring Pressure Connection Technology for vibration- and maintenance-free terminations.
The 787-861 Electronic Circuit Breaker features an integrated short-circuit current limitation, which avoids overload of upstream power supply units. This guarantees definite shutdown selectivity. The 787-860 and 787-862 do not feature short-circuit current limitation; however, they have adjustable trip times for quicker responses than those of melting fuses or traditional circuit breakers. Both units also allow for current path monitoring (e.g., overload or short circuit), as well as power consumption.
The Electronic Circuit Breaker modules are optimized for advanced applications, or those distributed over great distances. The Electronic Circuit Breakers can be used behind primary switch mode power supply units with any overload or short circuit behavior. If output of the power supply unit is divided into several circuit paths, the electronic circuit breaker will protect the circuit paths separately. This makes the Electronic Circuit Breakers ideal for control panels or machines powered by a single, larger power supply.
Monitoring capabilities are also ideal for applications where events must be logged (such as those in food, medical or process industries), where loads are separated over long distances (process), or if remote access is required (such as those in water/wastewater treatment and petrochemical facilities).
WAGO is the leader in spring pressure connection technology that eliminates loose wires resulting from vibration and temperature cycling, while providing highly reliable, corrosion-resistant and maintenance-free connections. Products: DIN-rail, PCB and chassis mount terminal blocks; signal conditioners; the WAGO-I/O-SYSTEM and more.
For additional information, visit www.wago.us, or contact WAGO at 1-800-DIN-RAIL or info.us@wago.com.
Contact: Michelle Goeman Product Manager Terminal Blocks and Electronic Interface Phone: (262) 255.6333 ext: 106 E-mail: info.us@wago.com http://www.wago.us/powersupply.htm
|
|
|
|
|
|
|
