Two Zone 650°F Walk-In Oven |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA
Press release date: February 8, 2012

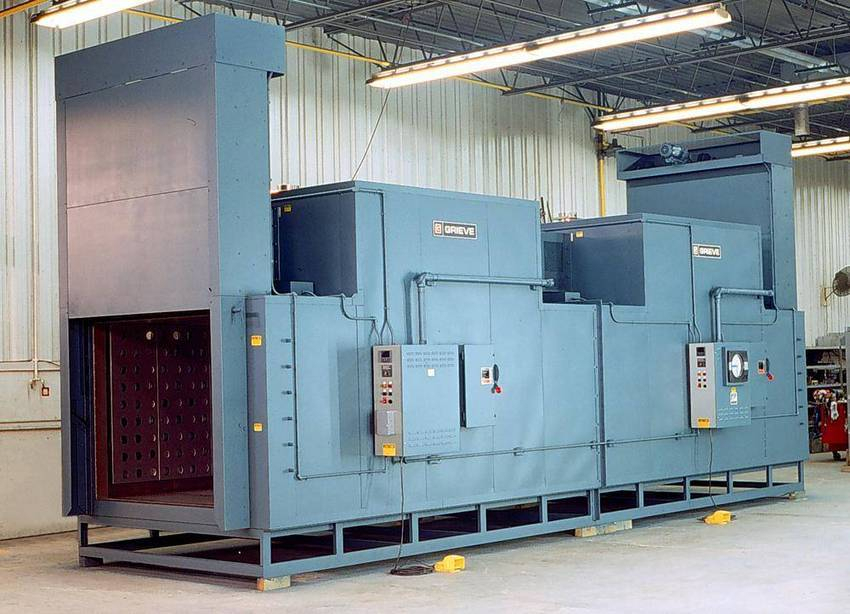

No. 803 is an electrically-heated, two-zone walk-in oven, currently used in tandem with a customer's conveyor system for heating 27' long pallets of vacuum laminations. This Grieve unit has a maximum operating temperature of 650°F and workspace dimensions of 6' W x 28' D (in two 14' zones) x 5' H.
A 100 KW heat input is installed in each zone in Incoloy sheathed tubular heating elements, while a 12,500 CFM, 10 HP recirculating blower provides horizontal airflow to the workload in each zone. A top-mounted heat chamber is located above each heating zone, as well, on this Grieve oven.
No. 803 features an aluminized steel interior, motor-operated vertical lift door with foot switch at each end of the oven and a reinforced floor and support stand to raise the oven floor to meet the customer's conveyor height.
Controls on this Grieve oven include a digital indicating temperature controller and manual reset excess temperature controller for each zone, as well as a two-pen circular chart recorder.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, IL 60073-2898. Phone: (847) 546-8225. Fax: (847) 546-9210.
Attention: Frank Calabrese, National Sales Manager.
|
|
|
|
|
|
