Two New Dock Lift Activators |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Advance Lifts, Inc.
701 Kirk Rd.
St. Charles, IL, 60174
USA
Press release date: March 8, 2011
Advance Lifts, Inc. of St Charles, Illinois announces the release of two new dock lift bridge activators. These new methods of bridge activation are by hydraulic cylinder and by winch. Both of these new methods allow for longer steel bridges and an alternative to costly aluminum bridges.

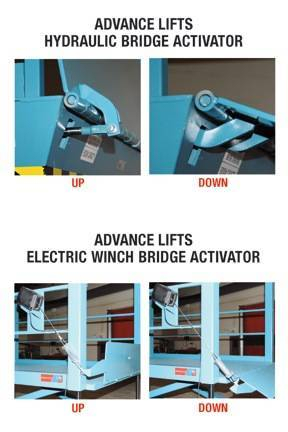

Hydraulic Bridge Activator
This option requires no additional electrical lines to the base frame. The control is a separate push button that can be moved to a convenient point on the platform. The cylinder actuator is either mounted under the platform for units with at least 8" lowered heights or on the side of the platform for lower units. Platform working space is never compromised. Truck bed deflection is automatically compensated for in the fully deployed position with a bridge float hydraulic circuit. Solid steel bridges up to 48" long can be used with this option.
Electric Winch Bridge Activator
This option requires 110V power at the base frame to power the winch. The winch is mounted on the outside of the handrails to preserve maximum platform working space and is still easily accessible. Because nothing is added to the underside of the deck, this option works well with very low units such as our 6000 series top of ground units and kits are available for adding this option in the field. The compensator spring is a visual cue for judging full bridge deployment and compensates for truck bed movement as loads are transferred between the lift and truck. This option allows use of one piece steel bridges up to 48 inches long and avoids the high cost of aluminum.
For over 37 years, Advance Lifts, Inc. has been manufacturing loading dock equipment, work positioners, lift tables, recycling equipment and packaging equipment.
To find out more information visit us on the Internet at www.advancelifts.com. For technical information contact Michael Renken sales@advancelifts.com or call 800-843-3625.
