Triaxial Force Sensors Ideal for Aerospace Vibration Testing |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
PCB Piezotronics Inc.
3425-T Walden Ave.
Depew, NY, 14043 2495
USA
Press release date: May 18, 2006

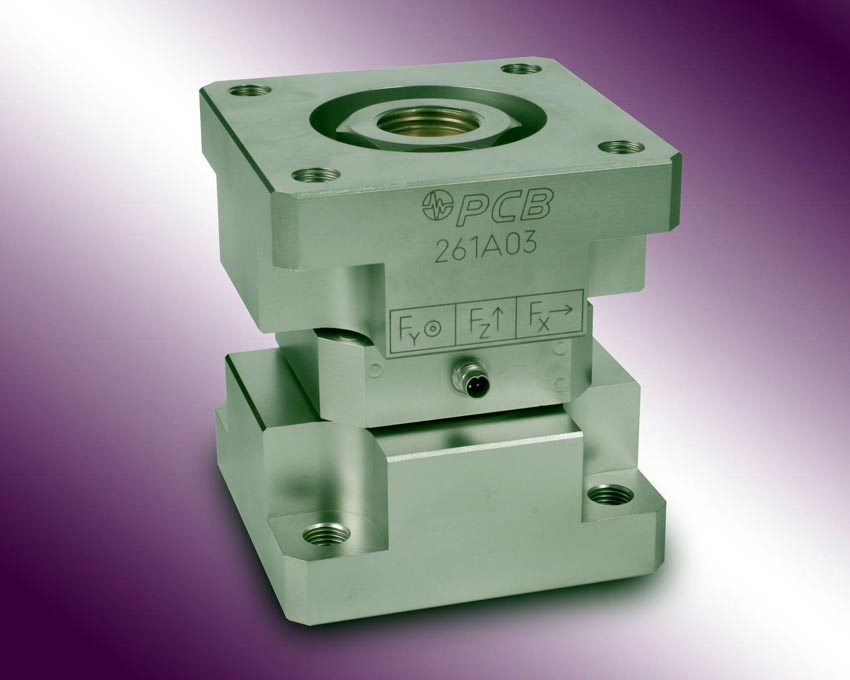

May 18, 2006, Depew, NY, USA - The 261A Series Triaxial Force Link Sensors from the Force/Torque Division of PCB Piezotronics, Inc. simultaneously measure dynamic and quasi-static forces in three orthogonal directions (X, Y, and Z-axes). The sensors are used during vibration testing of aerospace structures to match the mechanical impedance of shaker inputs and may be used to force limit the shaker controller to prevent damage to expensive structures. Other applications include cutting tool monitoring, biomechanics feedback, and automobile chassis dynamics.
Series 261A comes preloaded between two plates, with a four-screw mounting pattern to allow easy installation and feature full-scale measuring ranges from 500 lb to 4,000 lb (2.2 kN to 18 kN) in the X and Y directions, and from 1,000 lb to 10,000 lb (4.5 kN to 45 kN) in the Z direction. Single axis models are also available.
For additional information, contact the Force/Torque Division of PCB Piezotronics, Inc. toll-free at 888-684-0004 (in the U.S. and Canada) or 716-684-0001; e-mail: force@pcb.com; fax 716-684-8877; or visit PCB's web site at www.pcb.com.
