Toyoda's Spindle Design Optimizes Cut Time and Versatility |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Toyoda Machinery USA Inc.
316 W. University Dr.
Arlington Heights, IL, 60004
USA

Press release date: April 29, 2008

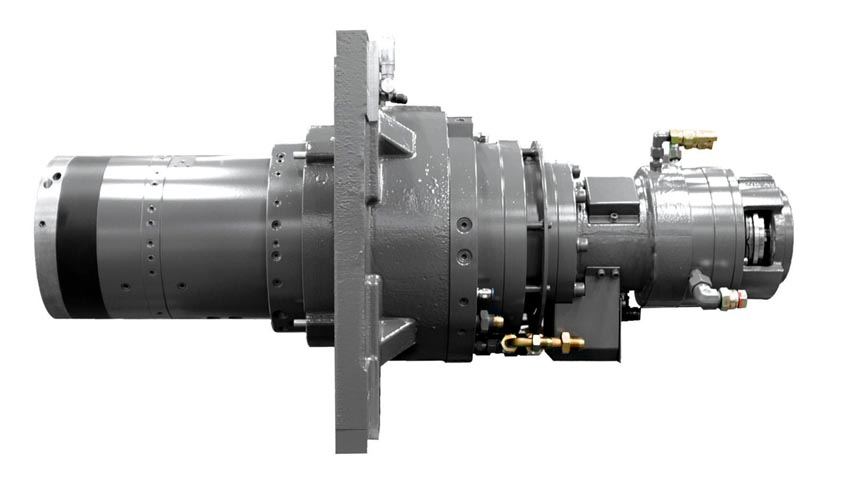

Arlington Heights, IL - Toyoda's spindle, designed with a removable taper, enables quick changes to accommodate different types of tooling and maximize machine uptime. To meet the demand for high productivity, Toyoda's spindle was designed with the perfect balance between speed and rigidity. The main components are easily accessible due the spindle's modular design engineered to optimize cutting times and minimize intervals between operations.
Toyoda's removable taper spindle design allows for easy changeovers between CAT, HSK, or BIG-PLUS tool holder types. The removable taper can easily be replaced if it is damaged due to impact or during high speed applications. In the past, an impact would often require replacing the entire spindle, which is extremely costly in downtime, parts, and labor. Now, the taper unit can be replaced in the field, and the machine can be up and running again quickly and at a lower cost.
The addition of the fourth bearing in the front bearing pack reduces vibration and helps the spindle withstand higher radial forces without damage. The spindle bearings are positioned over the tool taper and not the retention knob, creating a more rigid tool that can take on heavier cuts without chatter. This extends the life of the entire spindle assembly including the bearings, drawbar, taper, and tooling while improving machining accuracy.
Additionally, the unique spindle design provides easier accessibility to subassemblies. Its modular hydraulic cylinder unit is easy to remove, giving technicians easier access to the drawbar assembly and allowing for easier repair. This also helps minimize labor costs, downtime, and the number of replacement parts required.
Toyoda Machinery is one of the largest machine tool manufacturers worldwide. Toyoda is an engineering-driven company that builds, supplies and services flexible machining systems, horizontal and vertical machining centers and grinding machines. Toyoda Machinery headquarters is located in Arlington Heights, IL. The Automotive & Special Machines Division is located in Wixom, MI. For more information call 847-506-2488 or visit www.toyoda.com.
|
|
|
|
|
|
|
