The MR Flow Transmitters Are Here! |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Flo-tech, Div. of Racine Federated Inc.
2200 South St.
Racine, WI, 53404
USA
Press release date: April 3, 2006

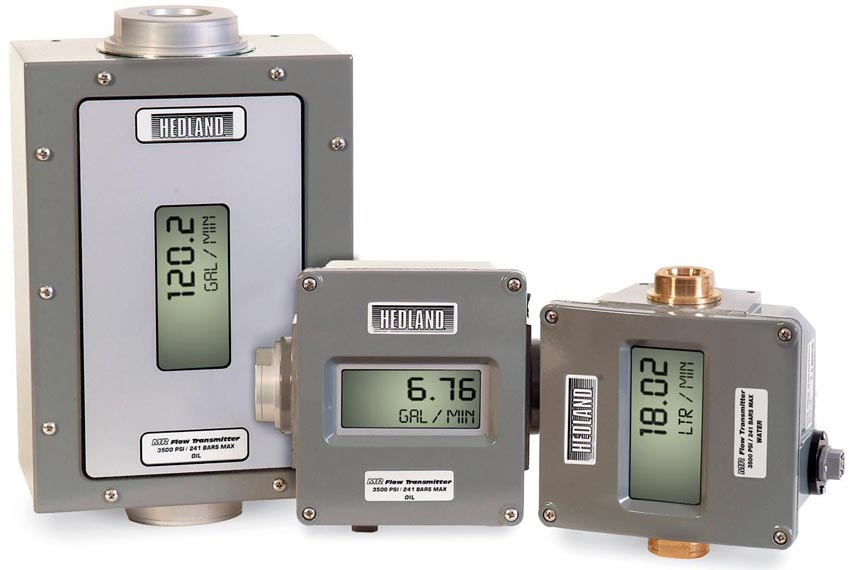

Racine, WI, April 3, 2006 - The MR Flow Transmitter combines state-of-the-art microprocessor-based technology with the rugged proven technology of a piston-type variable area flow meter. The solid state design electronically senses movement of the magnetic piston assembly and provides accurate, repeatable flow measurement. No mechanical linkages to bind or impede flow signal strength. The user may select fixed or toggle modes of operation for rate and total on the digital display. This advanced design has replaced our entire line of electromechanical model EL Flow Transmitters.
All MR Flow Transmitters come pre-calibrated from the factory. However, the unit may be adjusted by the user to meet specific system requirements. Calibration parameters are included for: specific gravity of all fluids, viscosity of petroleum-based fluids, as well as specific gravity, pressure and temperature of pneumatic systems. This, combined with user-selectable units of measure, eliminates the need for special scales.
Additional benefits and features include: o Non-contact sensor electronics o Digital flow rate and total indication o Proportional analog output o CE compliant - exceeds US and meets European standards from EMI/EMC o 6 point linearization (standard) o Low power design allows for 2-wire loop powered operation
The MR Transmitters provide voltage (0-5 VDC and 0-10 VDC) and current loop (4-20 mA) outputs, allowing for easy electronic integration. Optional remote display and signal processors are also available from Hedland.
The F6700/F6750 Series Digital Display with integrated signal processor capabilities is offered to further enhance the utility of the MR Flow Transmitters. In addition to remote flow monitoring, this unit can be configured to provide alarm processing and communication modes including RS232, RS485, Modbus, Profibus and DeviceNet.
Hedland is a leading manufacturer of flow meters, flow switches and transmitters and portable hydraulic test equipment for a broad range of industrial applications. The company offers products for use with liquid, compressed gasses and air. For complete specifications on the MR Flow Transmitter call 1-800-433-5263, visit Hedland's website at: www.hedland.com, or e-mail questions to: hedlandinfo@racinefed.com. Technically trained customer service representatives are available to assist in the selection process.
|
|
|
|
|
|
|
|
|
|
|
