Stainless Steel Vertical Lift from TKF Resists Rust and Corrosion, Making It Ideal for Food, Pharmaceutical, Cosmetic or Outdoor Applications
|
|
Click Here to Enlarge Picture
|
|
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
TKF, Inc.
726 Mehring Way
Cincinnati, OH, 45203
USA
Press release date: August 14, 2009

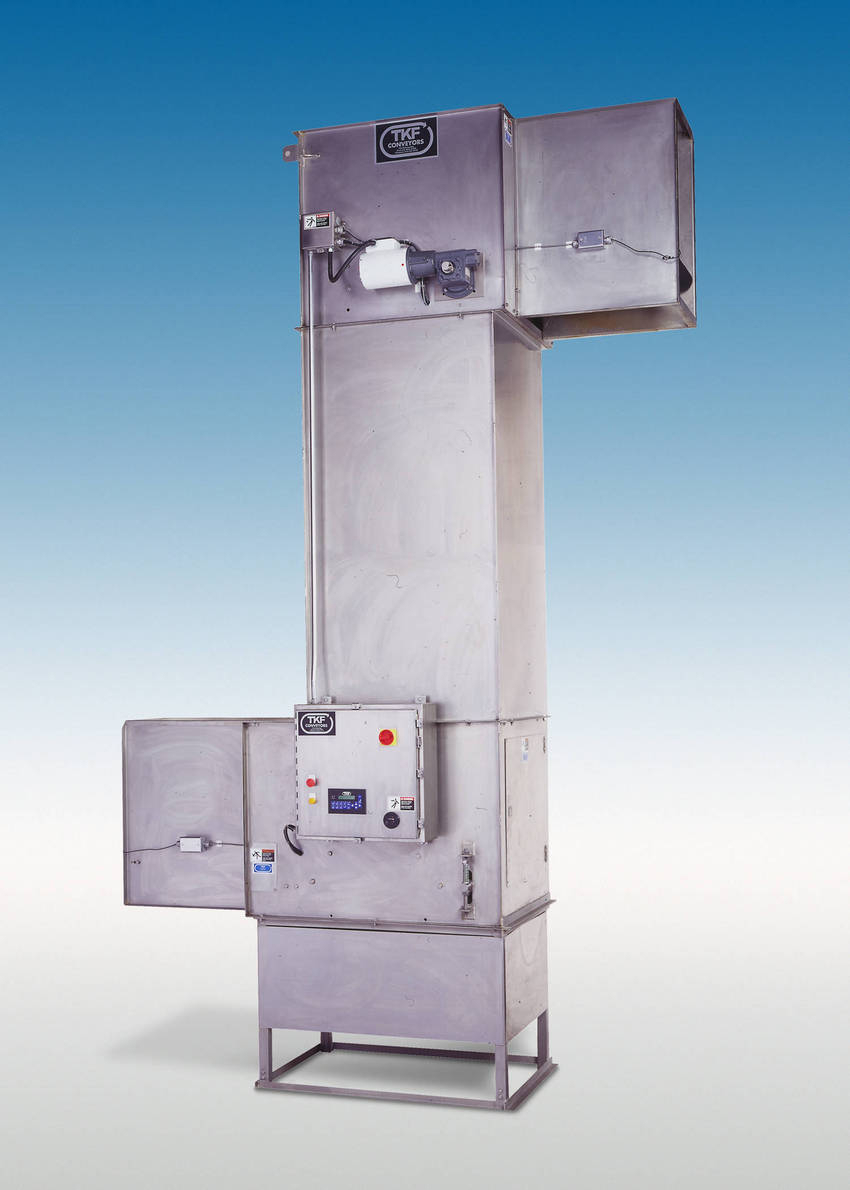

CINCINNATI, OH (August 14, 2009)- A stainless steel version of TKF's high-speed continuous vertical lift resists rust and other corrosion. Its stainless, easy-to-clean surface makes the conveyor ideal for wet or outdoor applications such as those found in the food, pharmaceutical and cosmetic industries, or processing applications where it needs to be cleaned, or even hosed down regularly.
The TKF continuous vertical conveyor accepts loads horizontally, conveys them vertically and discharges horizontally in a continuous non-stop operation with loading and unloading in a Z pattern. The lift can reverse direction - either up or down - as required. It features chain speeds up to 120 feet per minute, and depending on the dimensions of the items being conveyed, can output up to 40 loads per minute.
Each load is carried on a moving platform attached to continuous loops of chain. The unique platform carrier is rigid in the horizontal load-carrying position, yet flexible as it loops around the top and bottom sprockets as it returns to the load position. This design feature reduces the overall size of the lift.
Powered conveyors synchronized to the lift platform speed are used in loading and unloading, and are designed for the specific product to be handled, using roller, belt or chain. Five standard lift models are available, with unit load capacities ranging from 5 lbs. to 4,000 lbs., and vertical travel up to 80 feet.
Though they are assembled from pre-engineered modular components, TKF continuous vertical conveyors are customized for each individual application.
For more information, contact TKF, Inc., 726 Mehring Way, Cincinnati, OH 45203. Phone: (513) 241-5910. Fax: (513) 651-2792. Web: http://tkf.com/continuous_conveyors
About TKF
TKF designs, builds and installs conveying systems. The company's services range from systems integration, initial engineering concepts and final design, to manufacturing and installation. TKF's manufactured products include reciprocating and continuous vertical conveyors, PosiGrip conveyor, overhead, monorail and power and free conveyor, popup transfer, accumulation, curve, roller and a variety of custom engineered conveyor and material handling systems.
