Spline Shafts with Mated Bushing (Basic & Anti-Backlash) |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Nordex, Inc.
426 Federal Rd.
Brookfield, CT, 06804
USA
Press release date: April 27, 2009
Nordex's spline shaft system has been designed for light load applications, where low cost, low friction, and long life are primary design considerations.

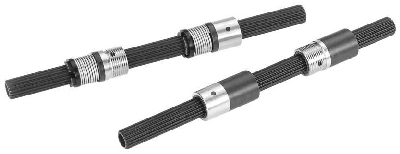

The assembly consists of a light weight, aluminum, spline shaft treated with proprietary low friction TFE coating, mated with a graphite and PTFE filled thermoplastic bushing. The bushing is supplied with an integral brass collar to facilitate various mounting configurations without nut distortion.
Standard shaft straightness is .003" per foot. Typical radial and torsional clearance between shaft and bushing for a basic assembly is .002" to .003" while an anti-backlash assembly is available for applications requiring additional system stiffness.
As with all of these assemblies, special bushing configurations and end machining configurations are available upon request.
To request a FREE copy of the Nordex Design Guide 2007 and to learn more about our winning combination of ISO 9001:2000 Certified Quality Management System, Class 100 Certified Clean room, as well as our commitment to quality and customer service, visit www.nordex.com or contact Nordex, Inc., 426 Federal Road, Brookfield, CT 06804 Phone (203) 775-4877 Fax (203) 775-6552 Email info@nordex.com
|
|
|
|
|
|
|
|
|
|
|
|
