Rehm Thermal Systems Announces Three Next-generation Soldering Solutions |
Rehm Thermal Systems
Leinenstrasse 7
Blauberen, Germany
Press release date: January 1, 2013
Rehm Thermal Systems announces its next-generation advanced packaging and semiconductor solutions with no atmosphere – the Vacuum Soldering process.

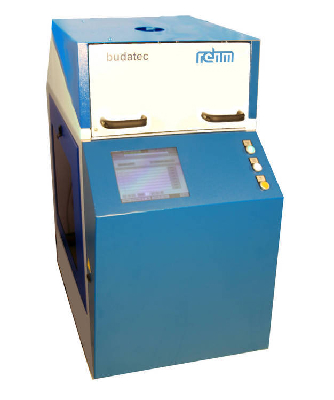

Rehm offers three VS Series Vacuum Soldering system models. They’re all small, all powerful, and all low cost. The VS320, the VS160UG, and the VS160S benchtop each feature fast heating and cooling rates with easy profile setup and editing plus data logging. The use of different gases as well as formic acid and microwave plasma is supported. All of the models offer a small footprint, and all are low cost to rapidly turn increased productivity into profitability.
Vacuum Soldering delivers a huge array of exceptional productivity and quality advantages by dramatically reducing voids in solder joints, crucial in the production of power electronics. It also supports processes such as plasma cleaning and gas exchange for advanced packaging through the controlled use of gases during the soft-soldering process at temperatures up to 450 degrees Celsius. It facilitates oxide-free and void-free connection of the chip to its substrate and allows flux free soldering and the use of solder preforms. Degassing and drying can be integrated into a single process. Vacuum Soldering delivers significantly increased yields through oxide-free processing and improving wetting to enhance solder filling.
Learn more about the wide range of soldering systems and technologies at www.rehm-group.com.
About Rehm Thermal Systems
Rehm Thermal Systems (www.rehm-group.com) is an international supplier to the photovoltaic and electronics industries, specializing in curing, drying and firing technologies as well as convection and condensation soldering. Rehm operates vertically integrated manufacturing facilities in Germany, China, and Russia, and technical support facilities throughout Europe, Asia and North America.
