Press release date: May 1, 2012
Booth # 6080, North Hall
Clacton-on-Sea - Pickering Electronics are Manufacturers of high quality Reed Relays for Instrumentation and Automatic Test Equipment (ATE), High voltage switching, Low thermal EMF, Direct drive from CMOS, RF switching and other specialist applications. Relays are available in Surface Mount, Single-in-Line (SIL), Dual-in-Line (DIL) and many other popular package styles.
Pickering Electronics will highlight the following products amongst others at Semicon West:

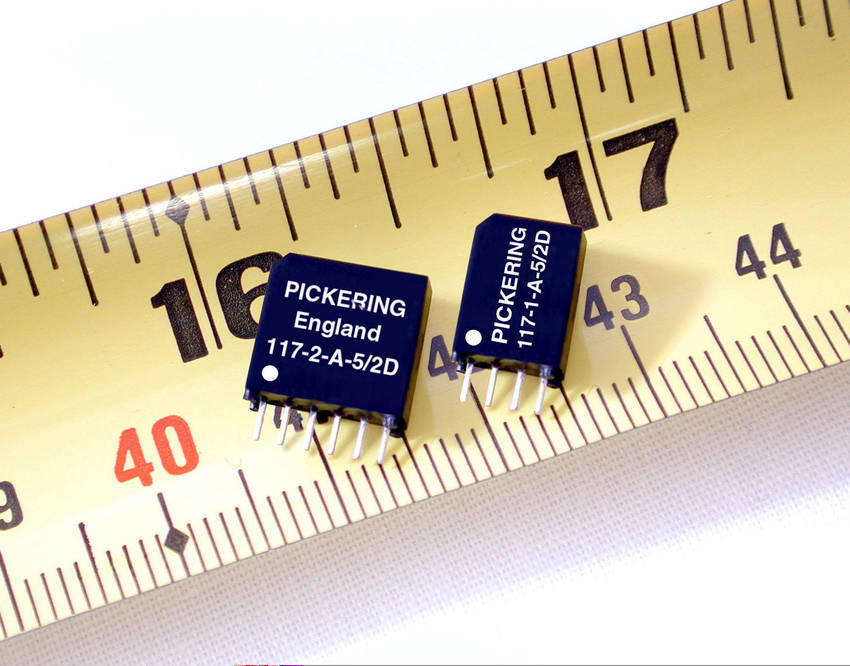

Pickering Series 117 SIL Reed Relays
Pickering Electronics' 117 Series Reed Relays are ideal for very high density applications such as A.T.E. switching matrices or multiplexers. They are available in 3V and 5V, 1 Form A and 2 Form A variants and like all of our Single-In-Line Series they are constructed using our SoftCenter(TM) technology.
Pickering Series 113 SIL Changeover Reed Relays
Pickering Electronics' Series 113 changeover single-in-line reed relay is our smallest changeover. They're magnetically screened and require a board area of only 0.15 inches (3.8mm.) by 0.5 inches (12.7mm.). They have a 3 Watts rating and like all of our Single-In-Line Series they are constructed using our SoftCenter(TM) technology.
Pickering High Voltage Reed Relays
If you need Reed Relays for High Voltage applications customers should take a look at Pickering's High Voltage Relays.
SERIES 104
The SERIES 104 fits on a Board area of 0.25 x 1.0 inches (1 Form A)
They are available up to 3 Kilovolts with Rhodium plated, vacuum switches in a Single-in-Line plastic package. Three voltage ratings are available.
1kV stand-off, 500 volts switching at 10 Watts (One or two Form A or one Form B).
1.5kV stand-off, 1kV switching at 10 Watts (One or two Form A or one Form B).
3kV stand-off, 1kV switching at up to 20 Watts (One Form A only).
Like all of our Single-In-Line Series they are constructed using our SoftCenter(TM) technology.
SERIES 60/65 fit on a Board area of 0.65 x 2.3 inches
These are available up to 15 Kilovolts with Tungsten plated, vacuum switches. Series 60 are for chassis mounting with solder tag connections, Series 65 are for PCB mounting. Three voltage ratings are available.
5kV stand-off, 3.5kV switching at 50 Watts (One Form A or one Form B).
10kV stand-off, 7.5kV switching at 50 Watts (One Form A or one Form B).
15kV stand-off, 12.5kV switching at up to 50 Watts (One Form A only).
SERIES 62/63 fit on a Board area of 0.8 x 2.55 inches
These are available up to 15 Kilovolts with Tungsten plated, vacuum switches in a chassis mounting package with push-on connections. Three voltage ratings are available.
5kV stand-off, 3.5kV switching at 50 Watts (One Form A or one Form B).
10kV stand-off, 7.5kV switching at 50 Watts (One Form A or one Form B).
15kV stand-off, 12.5kV switching at up to 50 Watts (One Form A only).
FREE Reed RelayMate Book - Expertise at first hand
The Reed RelayMate from Pickering Electronics is a publication which looks in detail at reed relays. In it you'll find out how reed relays are constructed, what types there are, how they work, what parameters affect their operation, how to choose the correct relay, a comparison with other relay technologies and how to drive and place reed relay coils. The Reed RelayMate is available free from the home page of Pickering Electronics' website and is available in either hard copy or pdf format. We will also have copies available free of charge at the show.
More information is available on our web site www.pickeringrelay.com Contact email: sales@pickeringrelay.com for further information please.
About Pickering Electronics
Pickering Electronics was formed in 1968 to design and manufacture high quality reed relays, intended principally for use in instrumentation and automatic test equipment.
Pickering Electronics offer an extensive range of high quality instrumentation grade reed relays designed for applications requiring the highest levels of performance and reliability. Through the experience of supporting the most demanding manufacturers of large ATE systems with high relay counts Pickering has refined its design, assembly and quality control methods to optimise its product range to this most challenging market.
|
|
|
|
|
|
|
|
|
|
|
