Portable Digital Scope w/FFT with Large Memory Capacity
GAO Instruments Inc.,
601 Milner Avenue. 2nd floor
Press release date: July 18, 2012
Toronto, Canada - GAO Instruments (www.GAOInstruments.com) is offering its portable digital scope with FFT and 20 types of automatic measurements. It is commonly used for electronic circuit debugging, circuit testing, design and manufacture, education and training, automobile maintenance and testing.

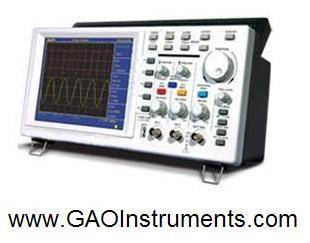

This 25 to 100 MHz bandwidth 2 channel digital storage oscilloscope, model A0110001, provides real-time sampling rates from 100 to 250 MSa/s and rise time from less than 14 ns to 3.5 ns. It is available in three different bandwidths of 25, 60 or 100 MHz and comes with 2 passive probes which are switchable between 1:1 and 10:1 input ratio. This unit can detect the average and peak values of a waveform and can store up to 5000 waveform points per channel.
The digital scope provides an autoscale function, multiple-waveform calculation function, FFT function and automatic settings function for fast set up. It offers advanced triggering functions including edge trigger, video trigger and alternate trigger. It uses RS232 or USB interfaces for data storage and printing. In addition, with the available battery, it can be used as a portable oscilloscope for up to 4 hours.
This portable digital scope belongs to GAO's family of Portable Digital Oscilloscopes. The family includes a variety of digital oscilloscopes with different bandwidths and sampling rates such as 4 Channel Mini Digital Oscilloscope which is based on ARM cortex M3 (STM32F103VCT6) 32 bit platform and provides a real-time sampling rate of 72 MSa/s with integrated FPGA and high speed ADC, Portable Two Channel 100 MHz Digital Oscilloscope which has 100 MHz bandwidth and 4 k memory depth per channel and Handheld Digital Storage Oscilloscopes which cover bandwidths from 25 MHz to 200 MHz and provide real-time and equivalent sample rates respectively from 1 GSa/s to 25 GSa/s.
