Northfield Model 620W Autolube Chuck |
Northfield Precision Instrument Corp.
4400 Austin Blvd., P.O. Box 550
Island Park, NY, 11558
USA
Press release date: September 4, 2012
Northfield Precision Instrument Corporation is a leader in the design and manufacture of precision workholding air and diaphragm chucks. Northfield manufactures precision air chucks with a guarantee of accuracy within millionths. We have come to be the precision workholding source for air & diaphragm chucks with workholding leadership in accuracy, reliability, repeatability, concentricity, productivity and customer service. Northfield has engineered a air chuck with customized top tooling that stays automatically lubricated for most effeicent functionality.

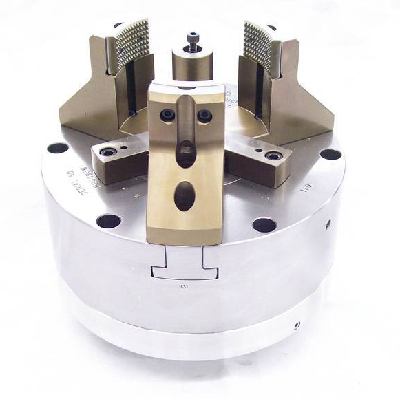

Shown here is our Northfield Model 620W Autolube Chuck (0.0001" TIR) with special top tooling.
Our customer manufactures pistons and required a way to hold the irregular surface on the OD of the as-cast piston so they could turn the piston's crown.
We came up with a set of Subjaws permanently mounted to the chuck's master jaws (T-shaped in the photo) which contain Changeable Serrated Insert Pads which allowed them to grip the piston very securely as the toothed serrations slightly bite into the part's OD while they perform their first operation for machining this part.
The center of this chuck has a locating pad (not shown) secured with a screw to locate the upper inside cavity of the piston for a repeatable stop surface.
This chuck is also an "Autolube" chuck which is a setup including a remotely-located oil reservoir tank and all hardware to facilitate a foolproof way to keep the chuck automatically lubricated. This feature can be had on almost all of our chucks at your request.
One competitive price for complete workholding system including chuck, top jaws, custom made air tube assembly, rotary joint, hoses, operating valve and accessory kit. No hidden extras. We welcome your global inquiries and offer our website in multi languages to include German, French, Spanish, Japanese and Brazilian Portuguese.
Custom workholding chucks, jaws and fixtures are available and FREE engineering and technical assistance is offered.
|
|
|
|
|
|
