New Integrated HCMOS TCXOs and VCTCXOs from Fox Electronics Available in Ultra Small Packaging |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Fox Electronics
5570 Enterprise Pkwy.
Fort Myers, FL, 33905 5022
USA
Press release date: July 28, 2009

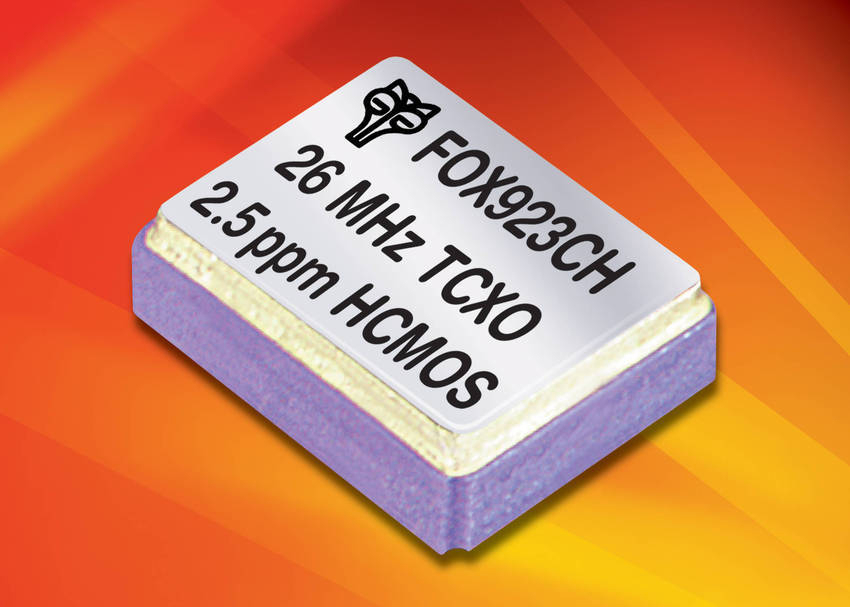

Fort Myers, Fla. - Fox Electronics, a leading global supplier of frequency control solutions, now offers its integrated SMD HCMOS TCXOs and VCTCXOs in a miniature 3.2 mm x 2.5 mm package size. The new 3.3-volt FOX923CH and FOX923CEH Series oscillators eliminate the need for supplementary external circuitry to obtain a HCMOS output.
Ideal for timing requirements in applications such as radio frequency identification (RFID) readers, utility metering, wireless telecommunications, GPS, data transfer and test and measurement equipment, these new oscillators offer significantly tighter stabilities than traditional oscillators. Stability is ±2.5 ppm over the -30°C to +85°C operating temperature range, ±0.3 ppm over the 3.3-volt (±5%) supply voltage and ±0.2 ppm over the 15 pF load change.
The series offers an input current (IDD) of 6 mA, an output symmetry of 40% to 60% over a frequency range of 9 MHz to 32 MHz and typical phase noise from -145 dBc/Hz at a 10 kHz offset to -85 dBc/Hz at a 10 Hz offset. Maximum reflow soldering temperature is 260°C at 10 seconds.
These RoHS-compliant oscillators have a gold termination finish and a maximum height of 1.2 mm. The FOX923CH TCXOs (temperature-compensated crystal oscillators) feature a no-connect on Pin 1, while the FOX923CEH VCTCXOs (voltage-controlled, temperature-compensated crystal oscillators) include voltage control on Pin 1 to further tune out inaccuracies.
Pricing for a FOX923CH-10.000MHz oscillator is $0.99 per unit in quantities of 10,000. Delivery is eight weeks ARO.
For more information, please visit http://www.foxonline.com/pdfs/fox923CH.pdf or contact Customer Service,
Fox Electronics,
5570 Enterprise Parkway,
Fort Myers, Fla. 33905.
Tel: 888-GET-2-FOX;
Fax: 239-693-1554;
E-mail: http://foxonline.com/email.htm;
Web: www.foxonline.com.
READER SERVICE INQUIRIES:
Please forward all reader service inquiries to Customer Service,
Fox Electronics,
5570 Enterprise Parkway,
Fort Myers, Fla. 33905.
Fox Electronics is a leading global supplier of standard and custom frequency control products, including the industry's broadest line of crystals, oscillators, VCXOs, TCXOs, OCXOs and crystal filters. The company, headquartered in Fort Myers, Fla., has facilities, representatives and distributors throughout the world.
