Model CW30 Large Reeler and Dereeler |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Eraser Company, Inc., The
Oliva Dr.
Syracuse, NY, 13221
USA
Press release date: December 26, 2007

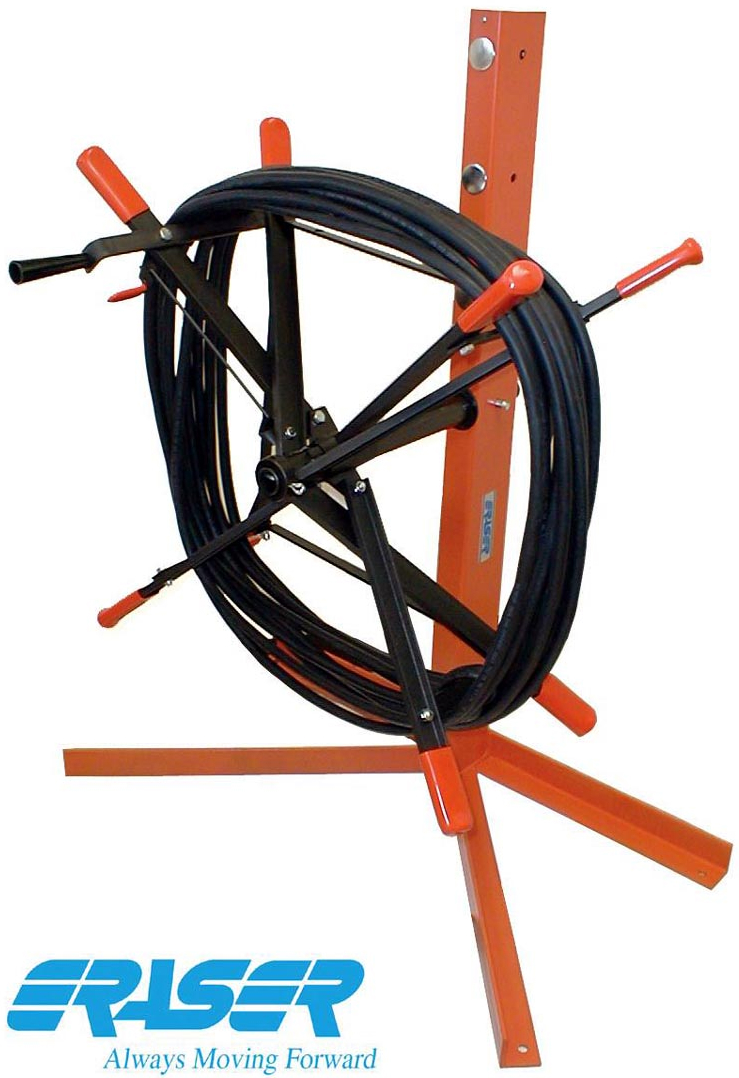

Eraser's Model CW30 Large Reeler and Dereeler is the ideal unit for use in dereeling, measuring, cutting and reeling operations by production kitters, jobbers, and electrical contractors. The CW30 is a collapsible unit perfect for producing neat coils of wire and cable. The unit is capable of dereeling hanks or coils of material by reversing the reeling operation. An adjustable friction clutch is incorporated to prevent overruns in dereeling operations.
o Coil Dimension/Inside Diameter: Fixed at 27" (686mm) o Coil Dimension/Outside Diameter: Variable up to 36" (914mm) o Width of Coil/ At Inside Diameter: Up to 6 1/4" (159mm) o Width of Coil/ At Maximum Outside Diameter: Up to 9 1/2" (241mm) o Capacity/ Length: Up to 300' (91M) of 3/4" (19mm) diameter wire or equivalent o Capacity/Weight of Coil: 150 lbs. (68.2 Kg) maximum
The Eraser Company, Inc., celebrating its 96th anniversary in business, manufactures a wide range of industrial products including wire, cable and tubing cutters, wire and cable strippers, wire twisters, wire brush wheels, dereelers, infrared heating equipment, measuring tools, and fybRglass® erasers. The company is ISO 9001:2000 certified. The company offers Free E.S.P. (Eraser Sample Program). Send a 10-20 foot sample of your material and Eraser will recommend the best solution for your processing needs from its line of more than 200 products. For unique processing needs, Eraser will custom design a solution for you. For more information on Eraser's entire product line visit www.eraser.com or call 315-454-3237.
Contact: Laura Prattico The Eraser Company, Inc. 123 Oliva Drive/PO Box 4961 Syracuse, NY 13221 Phone: Toll Free: (800)724-0594 or 315-454-3237 Fax: 315-454-3090 Email: lprattico@eraser.com
|
|
|
|
|
|
