Model 450 Custom-Designed Chuck |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Northfield Precision Instrument Corp.
4400 Austin Blvd., P.O. Box 550
Island Park, NY, 11558
USA
Press release date: March 5, 2012

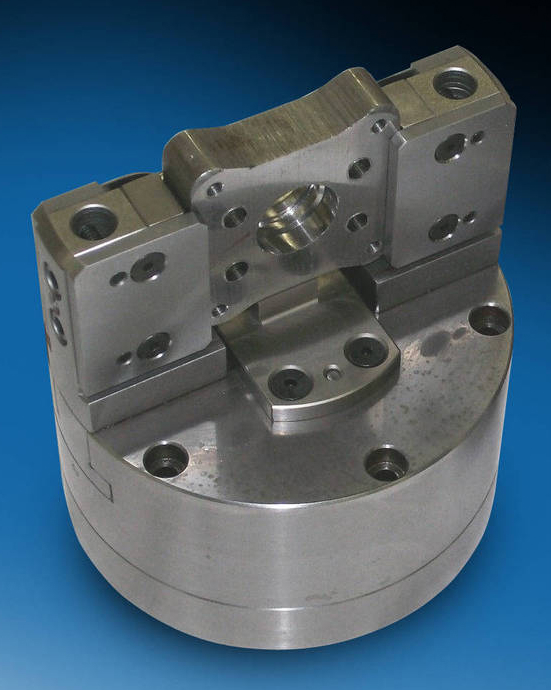

Island Park, NY... Northfield Precision Instrument Corporation, a leader in the design and manufacture of precision workholding chucks, retooled their Model 450 chuck for Caterpillar. The part (shown being gripped in the chuck) is a "Wheel Poppet Adapter". This chuck has special serrated insert pads to securely grip the part during the operation where they are drilling the holes on the side of the part. The chuck is mounted on an indexing head to expose the side of the part for drilling.
The plates attached to the sides of the jaws are used as a datum for drilling; one plate flexes to push the part, so that it maintains positive contact against the solid plate on the opposite side. In addition, the chuck also has an axial locator mounted in the center with line contact so as not to influence the grip of the part, but acts as a secondary datum.
Northfield Precision designs and manufactures the world's most accurate chucks for any lathe, boring machine, grinder or VMC. Models include through-hole, high-speed and quick-change. Chucks are available in SAE or metric, in sizes from 3" (76mm) to 18" (457mm). Accuracies of 0.001" to 0.00001" (0.254m) are guaranteed. Custom workholding chucks, air chucks and jaws are available and FREE engineering assistance is offered.
For more information, please contact Northfield Precision Instrument Corp. Call Toll Free 1-800-810-2482 | Fax (516) 431-1928 | Email: info@northfield.com. www.northfield.com
|
|
|
|
|
