MAG Fadal 40-Taper Vertical Machining Center Provides Capacity for Large, Heavy Workpiece Machining at High Cutting Rates
|
|

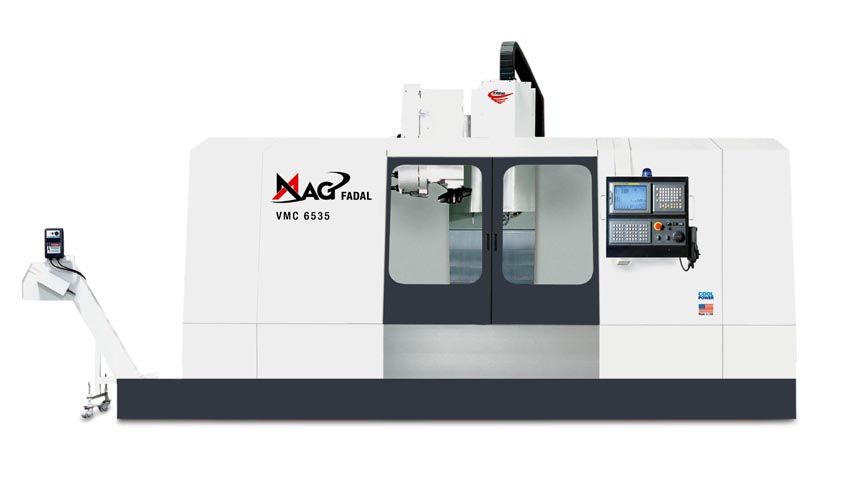

Click Here to Enlarge Picture
|
|
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
MAG Fadal
20701 Plummer Street
Chatsworth,, CA, 91311
USA
Press release date: January 25, 2008
Chatsworth, CA - The MAG Fadal VMC 6535-40T is a robust, economical vertical machining center with a work table size of 75" (1905 mm) X 35" (889 mm) that provides broad flexibility in terms of workpiece size and multiple-part setups. The machine delivers high material removal rates and reduced part cycle times while holding +/- .0002" axis positioning accuracy. Heavy cast iron construction and flame hardened box ways, including four on the base casting, support heavy workpiece machining, providing the rigidity and vibration damping required for aggressive metal cutting applications. The machine is designed for aircraft/aerospace, automotive, general industry, contract machining, and other durable goods manufacturing applications.
Cutting feed rates up to 600 IPM, with rapid travel rates up to 900 IPM, can be achieved. The 6535-40T is configured with a 10,000 RPM 40-taper spindle; a 6,000 RPM 50-taper high-torque spindle drive system is also available from MAG Fadal (VMC 6535 HTX). A leading-edge AC Vector Drive system with a high torque 22.5 HP spindle motor delivers 220 ft/lbs. of peak torque and maintains consistent torque over the full range from 10-10,000 RPM, with closed loop feedback.
X/Y/Z travel is 65" X 35" X 31" (1,651 mm x 889 mm x 787 mm). Large 63 mm diameter ball screws, large motors and a conservative lead pitch give over 5,000 pounds of axis thrust per axis while maintaining high rapid traverse rates. The machine comes equipped with a 24-tool dual-arm tool changer.
For more information contact: Gosia Jasinska at Fadal Machining Centers (MAG Fadal), 20701 Plummer Street, Chatsworth, CA 91311 USA. Phone: 818.678.2211; www.fadal.com. Fadal is part of MAG Industrial Automation Systems. About MAG Fadal
Fadal Machining Centers (MAG Fadal), a division of MAG Industrial Automation Systems, offers a wide range of Vertical Machining Centers (VMCs) complemented by a full line of performance-enhancing rotary products. Close to 40,000 VMCs have been installed worldwide in applications for general machining, medical, mold/die, automotive, aerospace, woodworking and many other dynamic industries. With over 40 years of experience in the machine tool business, MAG Fadal continuously strives to apply innovative metal-cutting technology to its VMCs. Headquartered in its 280,000 sq. ft. manufacturing facility in Chatsworth, CA (Los Angeles area), MAG Fadal offers extensive training and support programs, including a global network of distributors trained to deliver world-class after-sales support. Also see www.fadal.com. About MAG Industrial Automation Systems MAG Industrial Automation Systems, Sterling Heights, MI, is a group of leading machine tool and systems companies serving the durable-goods industry, worldwide, with a large portfolio of highly-recognized and well-respected brands. With manufacturing operations on five continents, MAG ranks as a leader in the global metalworking capital equipment market. Also see www.mag-ias.com
|
|
|
|
|
|
|
