MAE® Size 34 (Model HS 200) High-Performance Hybrid Stepper Motors Exhibit Superior Torque Characteristics for Industrial Applications
|
|

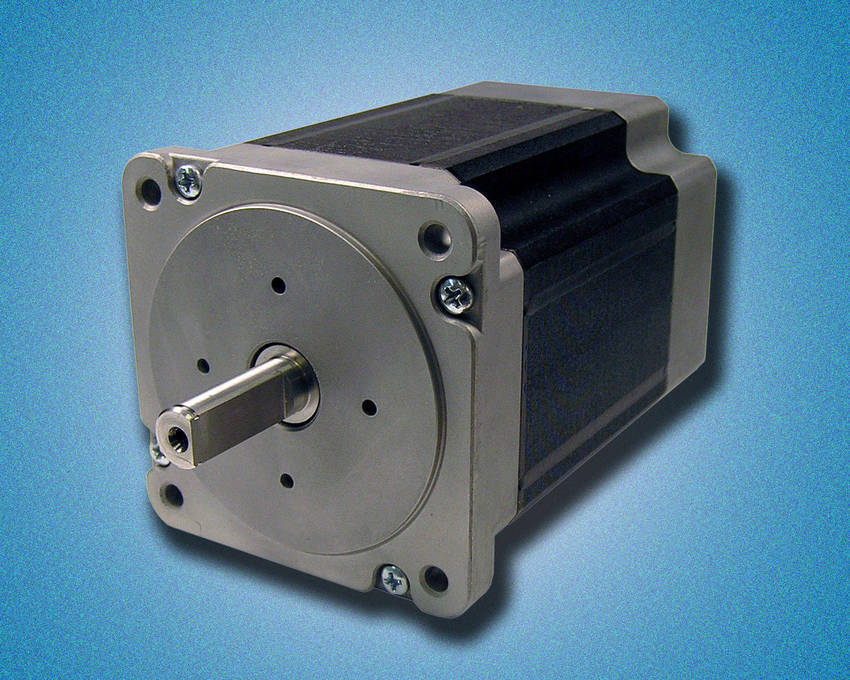

Click Here to Enlarge Picture
|
|
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
AMETEK Technical & Industrial Products
627 Lake St.
Kent, OH, 44240
USA
Press release date: December 8, 2009
MAE® brand Size 34 (Model HS 200) hybrid stepper motors exhibit superior torque characteristics to power a wide range of industrial equipment applications. Their low detent torque to holding torque ratios serve to deliver smooth and quiet operation and the fine positioning capability required for microstepping.
Typical applications for these steppers include actuators, packaging machinery, pumps, and other equipment across industries. The motors are CE approved and manufactured according to EN 60034-1 specifications. UL versions are available upon request.
Their top-to-bottom insulation system incorporating stator insulators and other components enables the steppers to withstand internal temperatures up to 130ºC. Robust design and rugged construction contribute to reliability and long service life.
These hybrid steppers include three versions with step resolutions of 1.8º (200 steps per rev) in full-step mode. Holding torques (bipolar) of 779 oz-in, 1062 oz-in, or 1416 oz-in can be achieved, depending on motor type. All are available in standard NEMA34 mounting configuration.
Other noteworthy features include precision-honed stators and ground rotors for tight air gap and maximum performance, single- or double-ended shaft extensions, and high-temperature grade neodymium iron bore magnets. Motors can be supplied with 4 leads and single- or double-ended shafts upon request and can additionally be customized with gearboxes, encoders, and other options to satisfy particular application specs.
AMETEK Technical & Industrial Products is a unit of AMETEK, Inc., a leading global manufacturer of electronic instruments and electromechanical devices with annual sales of more than $2.5 billion.
Contact Shannon Booth,
AMETEK Technical & Industrial Products, 627 Lake Street, Kent, OH 44240. Phone: 330-673-3452. Fax: 330-677-3306. Web site: www.ametektechnicalproducts.com
