M/A-COM Technology Solutions Announces C- Band Additions to Family of Digital Phase Shifters |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
M/A-COM Technology Solutions, Inc.
100 Chelmsford Street
Lowell, MA, 01851
USA
Press release date: April 27, 2012
Phase Shifters Deliver Fast Switching Speed, Low Phase Error, and Serial or Parallel Control Capability
Lowell, MA - M/A-COM Technology Solutions Inc. (M/A-COM Tech), a leading supplier of high performance analog semiconductor solutions, introduced today two new additions to its family of digital phase shifters for radar, communication, and electronic warfare (EW) applications.
The phase shifters facilitate easy implementation in communication antennas, phased array radars, weather radars, and EW receivers. The 3.5 GHz to 6.0 GHz GaAs pHEMT 4-Bit and 6-Bit digital phase shifters meet the high performance requirements of communications and radar system manufacturers, optimizing for fast switching speed, low phase error, and serial or parallel control capability.
"These new C-Band phase shifters are designed for low and constant phase error over a wide frequency range," said Kevin Harrington, Product Manager. "The low RMS phase noise error and options for 4-Bit and 6-Bit serial or parallel control provide our customers maximum flexibility."

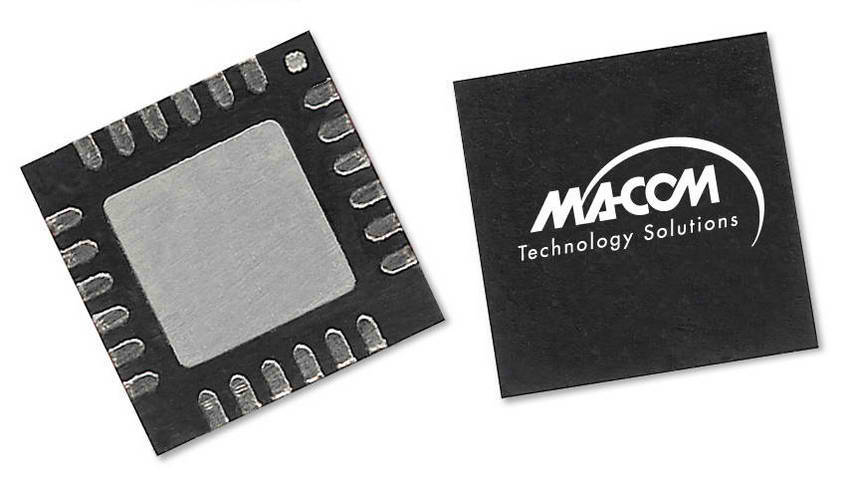

The MAPS-010145 is a 4-Bit digital phase shifter housed in a 4mm 24-Lead PQFN Package. It provides 360° phase shift range with a step size of 22.5°. It is controlled with a single +5.0V serial or parallel control line. Its insertion loss is 5.0dB, with a low +/- 1.0dB attenuation variation and +/- 2.5° phase accuracy over the 3.5 GHz to 6.0 GHz frequency range.
The MAPS-010165 is a 6-Bit digital phase shifter housed in a 4mm 24-Lead PQFN Package. It provides 360° phase shift range with a step size of 5.625°. It is controlled with a single +5.0V serial or parallel control line. Its insertion loss is 5.0dB, with a low +/- 0.8dB attenuation variation and +/- 5.2° phase accuracy over the 3.5 GHz to 6.0 GHz frequency range.
The table below outlines typical performance: MAPS-010145 MAPS-010165 MAPS-010145 MAPS-010165
Parameters Units Typ Typ Insertion Loss (any phase) dB 5.0 5.5 Attenuation Variation dB +/- 1.0 +/- 0.8 Phase Accuracy deg +/- 2.5 +/- 5.2 RMS Attenuation Error dB 0.4 0.4 RMS Phase Error deg 3.0 4.0 Input IP3 dBm 45 40 Package 4mm 24-Lead PQFN 4mm 24-Lead PQFN Production quantities and samples of MAPS-010145 and MAPS-010165 are available from stock. Final datasheets and additional product information can be obtained from the M/A-COM Tech website at: www.macomtech.com ABOUT M/A-COM TECHNOLOGY SOLUTIONS INC.
M/A-COM Technology Solutions (www.macomtech.com) is a leading supplier of high performance analog semiconductor solutions for use in radio frequency (RF), microwave, and millimeter wave applications. Recognized for its broad portfolio of products, M/A-COM Tech serves diverse markets, including CATV, wireless infrastructure, optical communications, aerospace and defense, automotive, industrial, medical, and mobile devices. M/A-COM Tech builds on more than 60 years of experience designing and manufacturing innovative product solutions for customers worldwide. Headquartered in Lowell, Massachusetts, M/A-COM Tech is certified to the ISO9001 international quality standard and ISO14001 environmental management standard. M/A-COM Tech has design centers and sales offices throughout North America, Europe, Asia and Australia.
