Low Cost Nibbler for Singulating Tab Routed Boards |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
FKN Systek, Inc.
86 Kendall Ave.
Framingham, MA, 01702
USA
Press release date: July 23, 2009

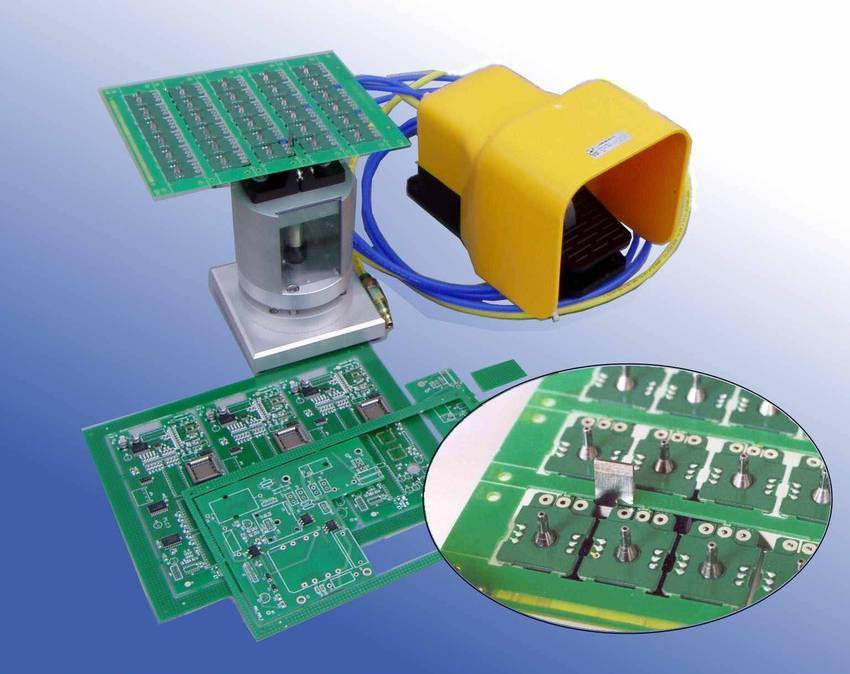

Singulating tab routed printed circuit cards in low to medium volume production quantities is safe and easy with the N100 Nibbler from FKN Systek. Blades are available in standard thicknesses of .120", .093" and .062". Custom sizes to match the width of the routed section can be ground. Tabs are cut cleanly on each side so that no further clean up is required to remove excess material, as is often the case when using hand tools or when breaking the panels manually. In addition, since only one tab is cut at a time , minimal stress is imparted to the board during the process as the panel is not pressed between two points during the cut.
The N100 is provided with a quick connect pneumatic port which plugs directly into factory air (80-100 PSI). Stepping on a foot pedal activates the cutting process. The excess material from the tab is stored inside a compartment of the tool and can be easily removed at the convenience of the operator. To see a video of the N100 and other depaneling methods go to fknsystek.com.
|
|
|
|
|
|
|
