Large-Volume Walk-In Oven from Grieve |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA
Press release date: March 20, 2012

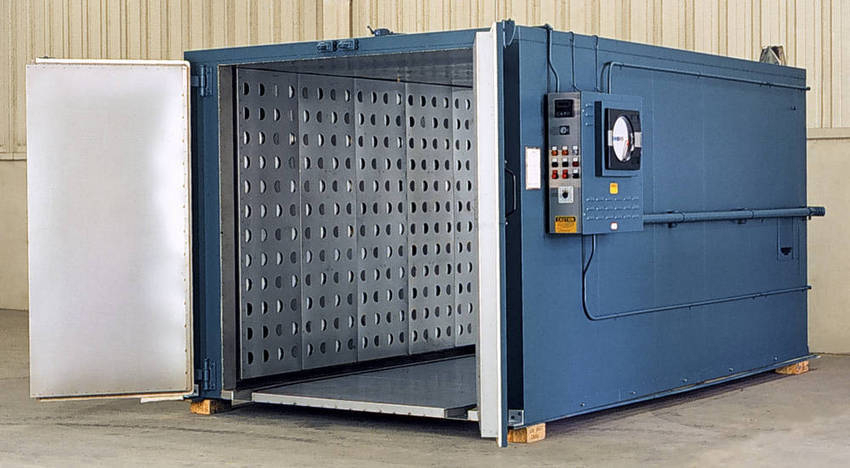

No. 850 is a 500ºF, electrically-heated walk-in oven from Grieve, currently used for curing composite parts at the customer's facility. Workspace dimensions of this oven measure 6' W x 10' D x 6-1/2' H. 80KW are installed in Incoloy-sheathed tubular elements to heat the oven chamber, while a 10,000 CFM, 7-1/2 HP recirculating blower provides horizontal airflow to the workload.
This Grieve walk-in oven features 4" insulated walls, aluminized steel interior and exterior, plus 2" insulated floor with integral truck wheel guide tracks for easier loading and unloading. All safety equipment is included for processing flammable solvents in the oven, including explosion-venting door hardware.
Controls on No. 850 include a digital programming temperature controller, manual reset excess temperature controller with separate contactors, recirculating blower air flow safety switch and 10" diameter circular chart event recorder.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com. Attention: Frank Calabrese.
|
|
|
|
|
|
