Kurt Introduces a Wide Range of Hydraulic Swing Clamps, Valves and Pumps - They Position and Clamp Workpieces for High Precision Machining Repeatability |
Kurt Introduces a Wide Range of Hydraulic Swing Clamps, Valves and Pumps - They Position and Clamp Workpieces for High Precision Machining Repeatability
|
|

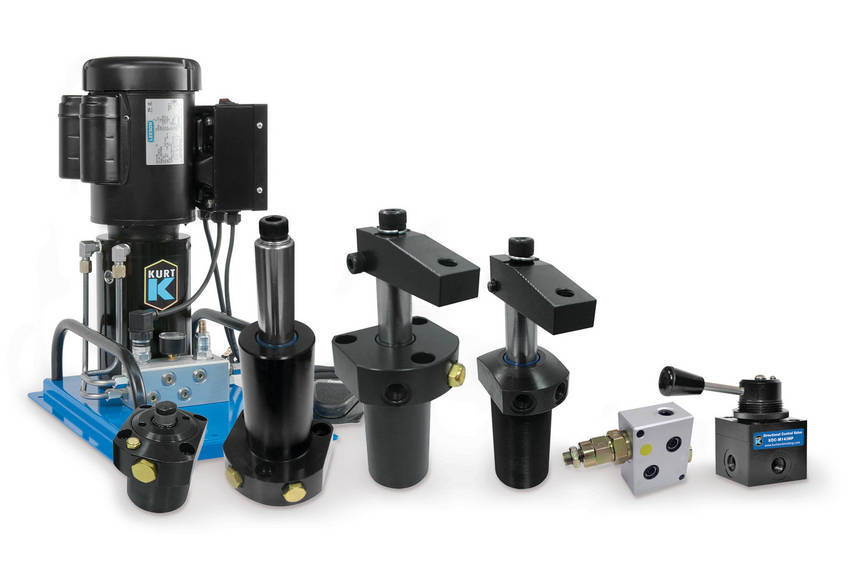

Click Here to Enlarge Picture
|
|
Kurt Manufacturing
5280 Main Street N.E.
Minneapolis, MN, 55421
USA
Press release date: August 2, 2011
Minneapolis, Minnesota: Kurt announces the introduction of a wide range of Hydraulic Swing Clamps, Valves and Pumps for clamping workpieces in a high production machining environment.
This new Kurt product line provides a wide range of Swing Clamps and accessory options for configuring the right workholding system for a single machining center or a multi-pallet cell with multiple machines. This new Kurt workholding system has been designed to increase productivity and reduce labor costs and scrap while improving part quality.
Kurt Swing Clamps Swing And Clamp In One Continuous Motion
Kurt's single cylinder Swing Clamps provide from 475 lbs to 6000 lbs clamping force with a maximum pressure of 5000 PSI. Kurt's single cylinder design actuates both the swing and clamping cycle in one continuous motion. Directional change of the swing clamp motion is easily made with a push/pull feature turning the clamping head left 90° or right 90°.
Available in upper and lower flange and threaded body mounting styles for added flexibility, Kurt Swing Clamp design features include:
o Cylinder bodies HRC 38 - 46 hardened tool steel with polished inner surfaces to ensure long operating life up to a million cycles.
o Pistons that are hard chromed and polished for maximum wear resistance and smooth piston operation. They are heat treated to HRC 60 - 63 to reduce abrasion and for maximum wear resistance.
o Guide rods with guide slots that reduce clamp stress while promoting smooth operation and longer life.
o Pins HRC 38 - 40 heat treated for extra pin strength.
New Kurt Hydraulic Pump Has Peak 127 Cu. In. Output
Kurt's Hydraulic Pump is the ideal power source to use with its new Swing Clamps. The pump provides peak 127 cu. in. (.54 gal) total capacity and 75 cu. in. (.32 gal) useable capacity. Compact design for easy mounting and accessibility, the pump has a 1 HP motor (115/208-230 VAC), maximum amps 11.1 @ 5000 PSI. An external pressure relief valve is user adjustable from 500 to 5000 PSI. Internal safety relief valve is set at 5000 PSI. The decibel rating is 72dBA at 5,000 PSI at a distance of 2 feet.
"Kurt's new line of Hydraulic Clamps, Valves and Pumps are another major addition to its existing offering of workholding products and accessories," reports Steve Kane, global sales and marketing manager for Kurt. "Known for its 360° Product Advantage, Kurt's mission is to provide a complete, one-stop solution for all workholding needs."
For more information and a FREE new brochure on Kurt Swing Clamps and Hydraulic Pumps, call in USA and Canada, 1-877-226-7823. Outside USA and Canada, call 1-763-574-8309. Email: workholding@kurt.com
Download a FREE new brochure from the Kurt website: www.kurtworkholding.com
Or write to Kurt Manufacturing Company, Industrial Products Division, 9445 East River Road NW, Minneapolis, Minnesota 55433. In USA, Fax 1-877-226-7828. Outside USA, Fax 1-763-574-8313.
