Jaytec, LLC Invests in CS-090 Flying Cold Saw
Thermatool Corp. announces the installation of a CS-090 Flying Cold Saw with supplementary material handling equipment for Jaytec, LLC. Located in Milan, MI, Jaytec specializes in round, square and rectangular HF induction welded metallurgical tubing. Jaytec is a top tier supplier for assemblies of instrument panels, seating, side impact beams, and structural support for the automotive industry. They also produce rack and frame components for ATVs, structural tubing for tractors, tubular chassis frames for golf carts, snowmobile frames, and trailer hitches. In addition, Jaytec serves in the conveyor, material handling, and recreational vehicles industries.

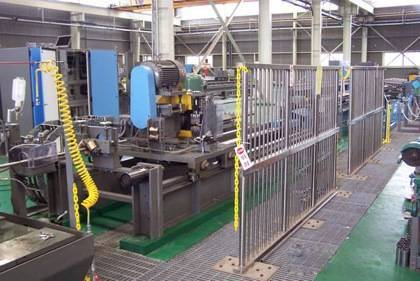

Jaytecʼs newly commissioned CS-090 Flying Saw retains much of the functionality and features of Thermatoolʼs larger CS2-170 Cold Saw allowing it to handle the high demands of heavy gauge and high strength tube cutting in a small footprint. It is capable of cutting a wide range of materials from 0.500 to 4.00 inch O.D. product and up to 0.250 inch wall thickness. This CS-090 Cold Saw was custom built for Jaytec to fit their needs of cutting up to 4.00 inch O.D. 115ksi UTS carbon steel and stainless steel tube at competitive speeds adding more versatility to their mill. The Jaytec CS-090 Cold Saw is capable of cuttings 20-foot lengths at 270 feet per minute and 40-foot lengths at 350 feet per minute. It is equipped with hydraulic clamping to ensure a proper tube support, reducing vibrations and prevents blade drag and pinching which results in longer blade life and lower operational costs.
Like other Thermatool flying saws, Jaytecʼs CS-090 has programmable feed rates to control the tooth load and plunge speeds resulting in greater cut quality, precision, and increased blade life. The CS-090 blade, powered by a 40 HP servo blade motor, is driven through the product via a servo controlled ball screw for accurate and repeatable blade motion to improve cut quality and reduce cut ime. The precision offered by the CS-090 Cold Saw helps Jaytec meet the stringent cut quality and length specifications of the automotive industry. The rugged one-piece base of the CS-090 Cold Saw was designed for stability, quick and easy installation, and possesses a sloped bed for convenient mill coolant and chip collection. To compliment the saw, Jaytec purchased a compact pinch roll table to aid with the material handling process and to consistently feed the pneumatic double dump table.
The Thermatool CS-090 Cold Saw helps Jaytec provide accurate tube cut lengths, better product, less down time and shorter deliveries.
Thermatool, a member of the worldwide Inductotherm Group, specializes in the design and manufacturing of high quality tube and pipe production equipment using the latest HF Solid State welding technology. Thermatool offers customers in-depth process expertise in tube welding, cutting and heating applications. To find out more information about how a CS-090 Cold Saw and other Thermatool products can improve your manufacturing needs, please contact info@thermatool.com
For more information on Jaytec and their products please visit www.jaytecllc.com
