ITT's Chip on Flex Filter Technology Withstands 1,000 Cycles of Thermal Shock and Vibration Testing |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
ITT Electronic Components
666 East Dyer Road
Santa Ana, CA, 92705
USA
Press release date: October 22, 2007
October 22, 2007

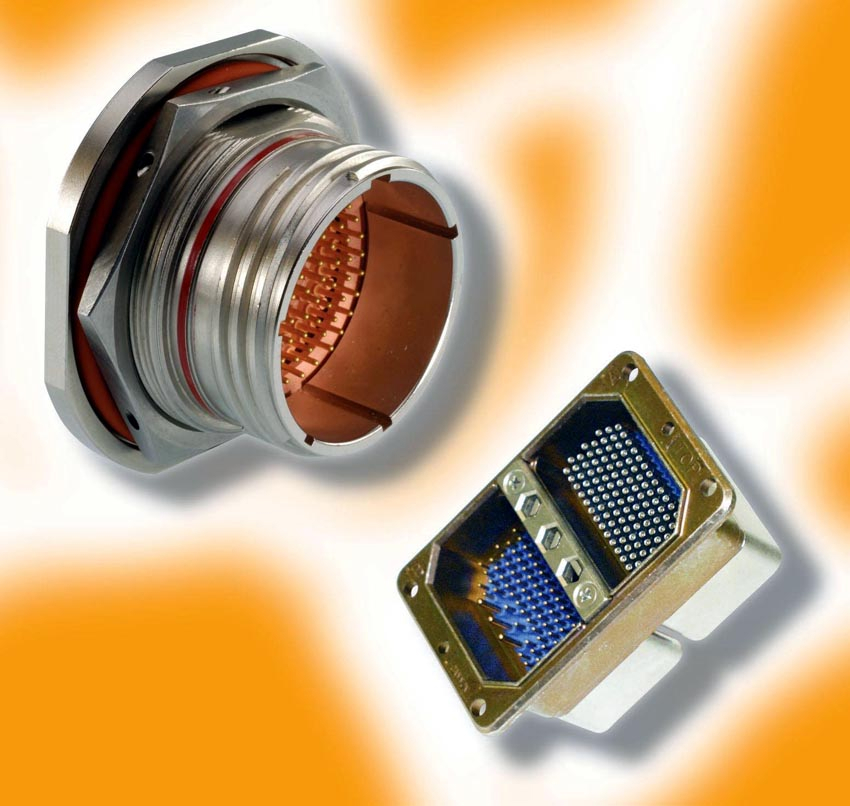

SANTA ANA, Calif. - October 22, 2007 - ITT Electronic Components, a leading global manufacturer and supplier of connectors, interconnects, and cable assemblies, has tested their Chip on Flex (CoF) filter connector technology to 1,000 cycles of thermal shock from -55°C to +125°C per MIL-STD-1344. Compared to the ceramic planar array block capacitor used in conventional filter connectors, the Cannon CoF connector utilizes a state-of-the-art flexible circuit where individual chip capacitors are surface mounted on a pad adjacent to the feed thru contact.
"We have eliminated the stress points that impact performance in shock and vibration environments by flex mounting the feed thru contacts rather than soldering them directly to the capacitor," said Keith Teichmann, director of product management for ITT Electronic Components. "While other filter connectors have typical lifespans of around 50 cycles, this robust design is capable of a life cycle 20 times that, making it the only military filter connector in the industry to pass 1,000 hours of thermal shock testing."
The robust connector design also provides superior reliability and protection in harsh environments. In MIL-DTL-38999 configurations, the Chip on Flex connector has passed MIL-STD-1344 and MIL-DTL-38999 Series III testing for mechanical shock, random vibration, humidity and high altitude. The connector features a voltage rating of 200VDC-120VAC rms 400Hz. Current ratings are 15A, 7.5A and 5.0A for sizes 16, 20 and 22, respectively.
The CoF connector is ideal for high reliability military, aerospace and industrial applications including integrated avionics, radio and navigation systems, fire control devices, electronic counter measures, satellite communications and data transmitters.
Typical pricing for the Chip on Flex filter connector ranges from $125 to $175 each in quantities of 100. Lead time is from 12 to 14 weeks.
About ITT
ITT Electronic Components is an international supplier of connectors, including circular, rectangular, fiber optic, RF, power and high voltage, audio and application custom specific connectors, PCMCIA and Compact Flash Card connectors and enclosures, and cable assemblies. ITT Electronic Components includes the brands Cannon, VEAM and BIW. http://www.ittcannon.com
