Hand Controller Enclosures with Trigger Action
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
OKW Enclosures, Inc
Abele Business Park, 3000 Old Pond Rd.
Bridgeville, PA, 15017
Press release date: August 1, 2008

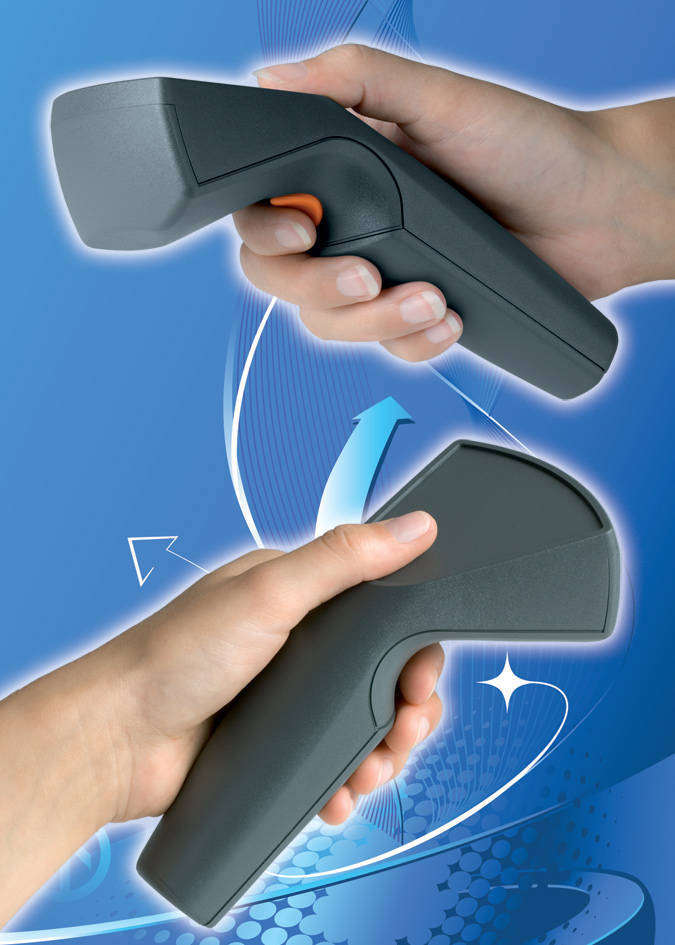

OKW have added two new models to the unique 'SENSO-CASE' series of hand controller enclosures. These new models have an integrated push-button switch, in the natural trigger position on the underside of the case, which ensures logical fatigue free operation of the unit for activation and logging functions. Typical applications will include measuring and control units, machine and robot controllers, stock and sales logging equipment, medical and laboratory technology and opto-electronics.
The 'SENSO-CASE' enclosures have an ergonomic hand grip profile with a large head section, and are molded in off-white or lava gray ABS (UL 94 HB). The external dimensions are 7.08" x 3.38" x 1.77". The design consists of four parts: top, base, battery compartment lid, and end panel. Screw pillars are provided inside for mounting PCBs, keypads, cable clamps etc. The new models are supplied with a single pole push-button switch (max. 28V/100mA), assembly elements for the switch, and an orange rubber button cover molded in soft TPE.
'SENSO-CASE' enclosures permit both right and left-handed operation, and can be used as mobile units with battery power or connected via a cable. The battery compartment will accept two 1.5V AA or one 9V cell. Optional cable glands replace the standard end panel, and along with a cable clamp, can be used for fitting the control cable.
The head section has a recessed area in the top for fitting membrane keypads, LCD modules, rubber keypads or push-buttons. The large front face can be used for mounting sensors or scanners. Prices for the new models start at $31.
OKW can supply the 'SENSO-CASES' with additional holes for the push-buttons, connectors and displays, plus silk-screen printed legends and logos, and EMI/RFI shielding.
More information on these enclosures can be found on OKW's website at: www.okwenclosures.com/senso
