H15 Female Pressfit PowerDIN |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
2E SysCom, Inc.
86 Kendall Ave.
Framingham, MA, 01702
USA
Press release date: January 30, 2009
15 pins at 15 A/pin in low profile pressfit variation.

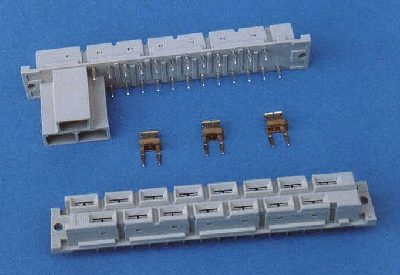

2E introduces the H15 female connector in pressfit variation. H15 DIN 41612 connectors have 15 pins rated at 15 amps per pin. The standard version has 30 pressfit pins (2 per contact) suitable for PCB thicknesses greater than 1.6mm. A special variation suitable for mains power supplies (also depicted here) has faston pins in position 28, 30 and 32. Leakage distance between these faston pins is greater than 8mm.
|
|
|
|
|
|
|
|
|
|
|
