Full Smt Assembly in Limited Production Spaces with Valueflex Line from Manncorp |
Manncorp
2845 Terwood Rd.
Willow Grove, PA, 19090
USA
Press release date: August 3, 2012

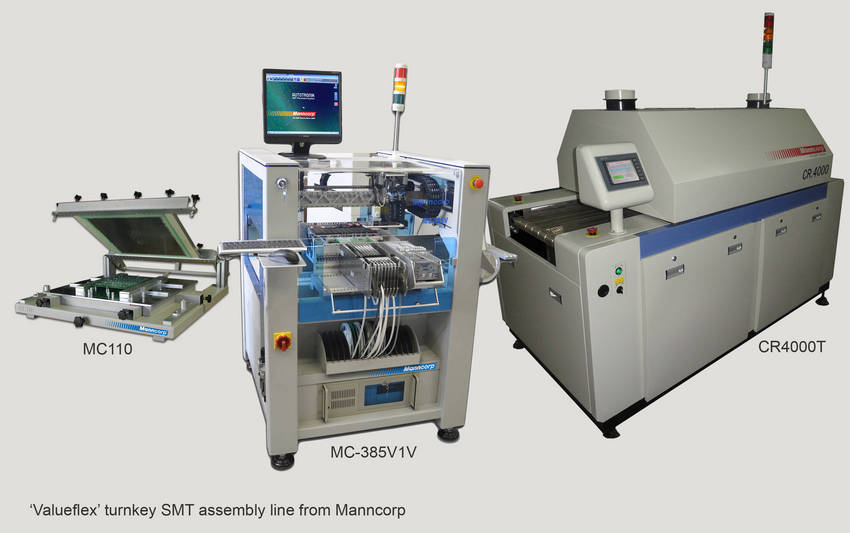

Electronics manufacturers who need the accuracy and dependability of a large SMT assembly line in a small footprint will find their needs met by Manncorp's new Valueflex turnkey line.
Perfect for production areas where space is at a premium, the Valueflex line excels in short-run to mid-range high precision surface mount assembly, including high-mix runs.
The pick and place machine featured in this line is the popular MC-385V1V, with placement speeds to 5,000 and capacity for up to 128 feeders-ample enough to keep the most commonly used components resident on the machine, allowing for faster job changeovers. Ball-screw drive, high-speed AC servo motors, and X&Y linear encoders ensure repeatability and accuracy for components from 0201 to 100 mm x 150 mm with 01005 capability as an option.
The Valueflex's four-zone, full-convection, lead-free reflow oven (model CR4000T) offers large-oven performance in just over 6 ½ feet while accommodating boards to 20" wide.
The large-board MC100 stencil printer with fine-pitch capability of 0.3 mm (12 mil) and registration repeatability to ±0.02 mm rounds out the line. Adjustable magnetic support pins and self-locking X, Y, Z and theta adjustments make for fast and easy job setup.
A Level 2 upgrade for the Valueflex increases placement speed by about 50% with dual placement heads. Computer control and KIC® profile prediction software are added to the reflow oven along with a 16"-wide pin conveyor over the mesh belt. The stencil printer in the Level 2 upgrade offers constant force on the dual squeegees with pneumatic pressure control.
Pricing, specifications and full details on the Valueflex turnkey SMT assembly line from Manncorp are available at www.manncorp.com/turnkey/valueflex-line
Manncorp offers a no-obligation Requirements Evaluation to help assemblers determine which turnkey assembly line is best suited to their workload. Simply send a typical BOM (bill of materials) to sales@manncorp.com or contact one of Manncorp's sales and support offices: 800-PIK-MANN (745-6266) for the East Coast office; 888-PIK-MANN (745-6266) for West.
With sales and support offices in three locations: East (Willow Grove, PA), West (San Diego, CA) and Mexico, Manncorp offers pick-and-place machines, stencil printers, reflow ovens, wave solder machines, turnkey systems, solder pastes, board cleaners, desiccant cabinets, rework systems, component counters and more. Pricing for all equipment is available right on the website. www.manncorp.com
