First-of-its-Kind Small Aircraft Tug |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Southland Equipment Service, Inc.
109 N. Shorecrest Dr.
Columbia, SC, 29209
USA
Press release date: June 15, 2009
Southland Equipment proudly announces they will be selling, installing, and servicing the worlds first Small Aircraft Tug that offers, Combination Crane Lift Auxiliary Power Unit (APU), and Winch, four machines for the price of one. This is a first-of-its-kind tug that includes a built-in crane lift and auxiliary power unit (APU). The Scorpion enables fixed base operator (FBO) aircraft mechanics to move and precisely position aircraft weighing up to 15,000 pounds and is manufactured by Air Technical Industries.
Traditionally, FBO aircraft mechanics require multiple pieces of equipment for servicing small planes: an APU to start the craft, a tug tractor to move it, a crane to remove the engine for service and to load and unload cargo, and a tow vehicle with a winch to retrieve stranded aircraft. By combining this functionality into one compact unit, the Scorpion Aircraft Tug offers significant cost savings. Because it is battery-operated, it also eliminates fuel costs and exhaust. An overnight charge is sufficient for typical daily operations.
To move a small plane, FBO mechanics must connect the aircraft to a large tractor via a 15 to 20 foot tow assembly, making it cumbersome to maneuver. The Scorpion Aircraft Tug is smaller and more maneuverable than a traditional tug, enabling the operator to walk behind or stand on its battery-powered frame. Its hydraulic lifting arms physically raise the front wheel of the aircraft off the ground, enabling precise positioning.

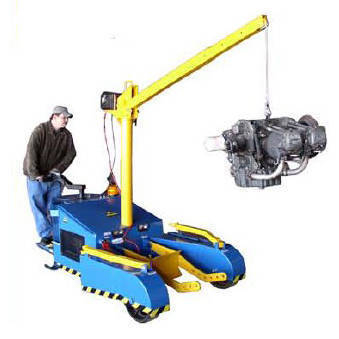

The Scorpion's built-in crane folds out of its base and offers a 7-foot telescopic boom with a lift-arm capacity of up to 1,000 pounds. It was designed for loading cargo and safely moving aircraft engines.
The Scorpion offers a built-in auxiliary power unit (APU) with powerful batteries that kick-start most general aviation aircraft in the coldest weather. For additional safety, the Scorpion offers an amber running light, headlights for nighttime operations, and an on-board fire extinguisher.
SPECIFICATIONS:
15,000# towing capacity / 1,000# lift arm capacity
24" maximum lift arm height
Overall Size: 96" long x 48" wide x 42" high
16" dia. Mold-on rubber wheels
24V DC powered drive and hydraulic system with 12V accessory plug
Unit includes: Foldable Tow Bar; On-board Fire Extinguisher; Amber operating light; Headlights; Battery Gauge/Hour Meter; Foldable Stand-up Rider Plate; Crane with Mast Extension and Power Winch providing 1,000 lbs. capacity with boom retracted at 7' lift height & 500 lbs. capacity with boom extended at 10' lift height; Utility Winch with 1,000 lbs. pulling capacity; Auxiliary Power Unit with 250 AH capacity sealed battery system providing 1,600 peak amps with a 12' cord and Heavy Duty APU plug; PE24V2060 Built-in Battery Charger, 10 amps, 110V AC input
Southland Equipment Service, Inc., serving material handilng needs started serving the lift truck market in 1971 as a Service Company and has built its reputation on Quality Service. Our dedication to customer service has earned hundreds of loyal customers, numerous awards, and a positive reputation in our industry and community. .
FOR FACTORY DIRECT PRICING CONTACT:
SOUTHLAND EQUIPMENT SERVICE, INC.
WWW.SOUTHLANDSC.COM
