Elfab First To Offer Detection As Standard
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Tyne & Wear, NE29 8SD
Press release date: June 6, 2006
Every Core Pressure-Relief Device Now Fitted With Burst Sensor

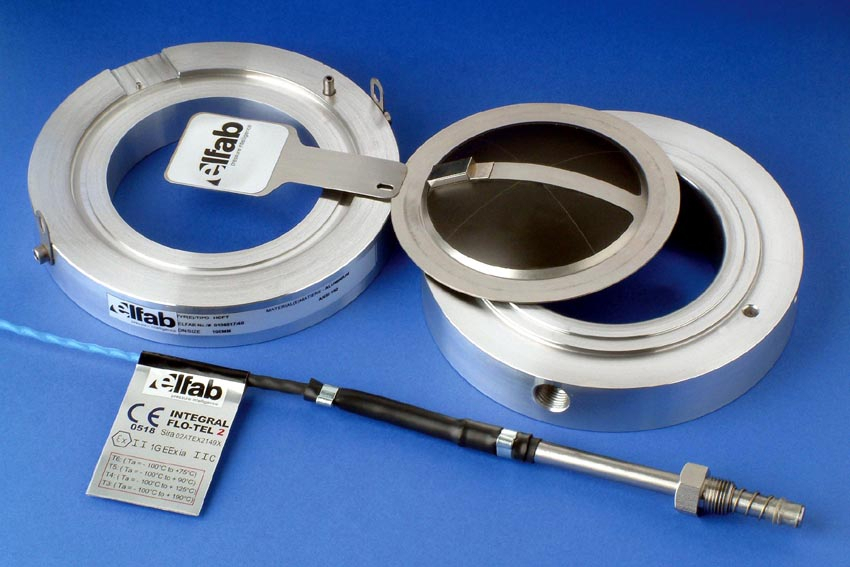

Elfab, Europe's leading supplier of pressure-relief systems, has added detection to each of its main product lines, giving end-users immediate indication of device operation. The company's ATEX-approved, non-invasive and reusable Integral Flo-Tel(TM) sensor is now fitted as standard to Opti-Gard(TM), Safe-Gard, Posi-Gard, Vac-Gard, Arma-Gard, Bursting Panels, and both Flat and Domed Composite Discs. Elfab is the first manufacturer to offer this service as standard.
Unlike most alarm systems, which are activated by the flow created after a rupture disc has operated, Integral Flo-Tel(TM) is installed on the vent side of rupture discs and is activated by the operation of the disc itself. During operation, a magnet arcs away from its rest position, removing the magnetic field from the sensor, and comes to rest in a position which no longer influences the sensor. This causes the sensor to switch to its fail-safe condition of an open circuit and a latched alarm condition is the result.
After operation, the rupture disc, complete with magnet, is the only part of the assembly that needs replacing. The sensor probe can be easily withdrawn from the rupture disc holder, prior to the holder being removed from the flange, and does not need to be electrically disconnected from the control system.
Similarly, verification of the sensor's operation is achieved by simply removing the sensor from the rupture disc holder. This triggers the sensor to change state (closed circuit to open circuit) and allows the plant control and monitoring system to confirm that a reading has been detected.
Integral Flo-Tel(TM) is IP65-rated and suitable for use in both chemically aggressive and hygienic environments. Since all of the sensor's electrical parts are non-invasive and situated outside the pipe or vent bore, they are subject to much higher levels of mechanical protection than more traditional membrane warning systems, and therefore benefit from a greatly reduced potential for spurious alarms.
Integral Flo-Tel(TM) also remains unaffected by damage from handling or installation and downstream back-pressure fluctuations; these can impact on the performance of other detection devices, leading to unnecessary and costly downtime.
