EDL's Tray Former / Loader System |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
EDL Packaging Engineers, Inc.
1260 Parkview Rd.
Green Bay, WI, 54304
USA
Press release date: July 18, 2008
"EDL provides technologies and engineering to configure systems that meet special and often unique customer requirements. We listen, study, design and deliver value."

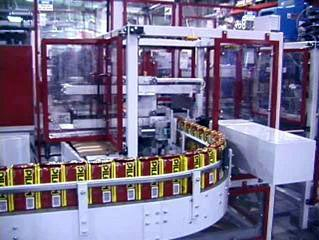

EDL's Tray Former / Loader System
Last month, EDL started up a new integrated wrapping system for a customer that produces bricks of vacuum packed coffee. The system consists of a Product Collator, Tray Former/Loader, and Side Feed Automatic Shrink Bundler.
The integrated system was purchased to replace equipment from other OEMs that was not performing well. A second EDL Tray Former/Loader and Shrink Bundler has also been purchased for start up later this summer to replace an older EDL system that has been in operation for over 20 years.
These systems operate by automatically accepting product in a single stream from the Vacuum Packer and collating it into 3 x 4 or 4 x 6 packs of bricks with a pneumatic pusher. A tray is formed from a blank by the tray former, and the collation is loaded into it. The loaded tray transfers to the infeed of the wrapper and is pushed 90o by a pneumatic transfer unit through the web of LDPE film and across the seal jaw. The seal jaw closes, creating a sleeve of film around the pack. The sleeved pack is conveyed through the shrink tunnel hood where the film is shrunk tightly around the pack to form a bull's eye enclosure. These systems operate at 80 bricks per minute. They have a significantly smaller footprint, and use less energy than the systems they are replacing.
EDL also offers turnkey system design, supply, and integration from the standpoint of a 'total solution' approach.
To view the video of the above system in action, please visit us online at: www.edlpackaging.com and go to the NEWS tab.
