Press release date: August 12, 2011
MINNEAPOLIS, MN --- The E-Switch PP1 series pushbutton switch has many great features. It is rated at 16A with 1HP, and has the option of either a long or short body. It has a very high tolerance for activation as a detector switch or door interlock switch.

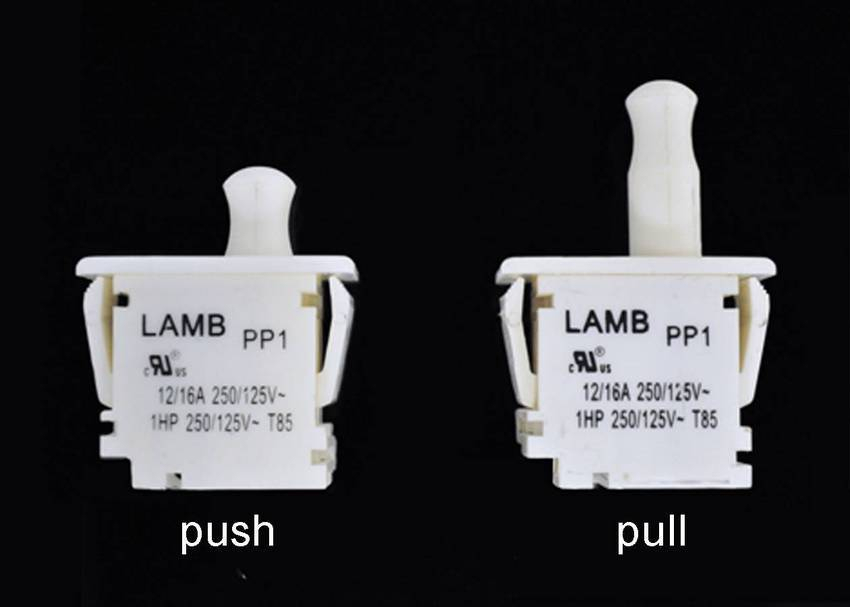

Its ability to include push and pull activation is useful for manual maintenance technicians.
This switch has multiple actuators available in different heights, so you get the exact switch you need for your application.
Specifications include:
ELECTRICAL RATING:
16A 125VAC [cULus]
12A 250VAC [cULus]
1HP 125/250VAC [cULus]
TEMPERATURE: 0°C to 85°C
ELECTRICAL LIFE: 6,000 Cycles [cULus]
CONTACT RESISTANCE: 50mW Max.
MATERIALS
BODY: Polyamide 6/6
ACTUATOR: Polyamide 6/6
CONTACTS: Silver Alloy
TERMINALS: Silver Plated Brass
The PP1 series pushbutton switch is a great product for the commercial appliance, gaming, HVAC and security markets. It can be found in air conditioning units, slot machines, washers and dryers, and security panels, among other applications.
Detailed specifications on the PP1
Visit E-Switch at www.e-switch.com to request your full-line catalog! You can also request a sample of one of over 4,000 discrete part numbers for one of your projects!
