DPM 100 Digital Pocket Microscope Measurement System |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Paul N. Gardner Co., Inc.
316 N.E. 1st St., Dept. TR
Pompano Beach, FL, 33060 6608
USA
Press release date: November 5, 2009

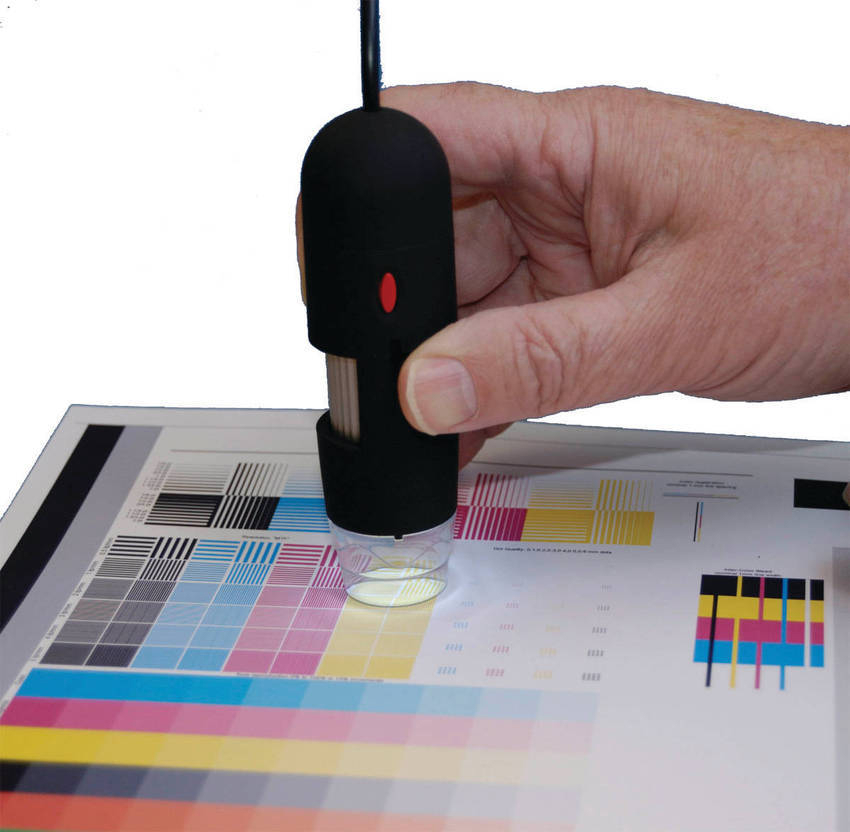

The Digital Pocket Microscope offers up to 200X magnifications, suitable for most quality inspection work.
The DPM contains a high-resolution color camera offering crisp, clear images. The integrated LED illumination can be switched off, which allows optional illumination for special investigations. The red button on the DPM is pressed to capture an image. With the DPM placed directly upon a surface, the focus wheel has two positions giving different magnification levels. The DPM can also be placed on a distance above the test
o Very Portable - as it connects directly to the USB port
o High Resolution 1600 x 1200 Pixels - offers crisp full color images at a resolution down to 1.4 ìm per pixel.
o Automatic Calibration of Light and Scale Factor - gives correct and accurate measurements
o Genuine Database Archiving - keeps track of all images and results
o Superimposed Tags For Comments Directly On The Image
o Measures Directly In Live & Captured Images - Distance, Circles, Areas
o Delivery Includes: Hard padded instrument case - Instrument metal stand - CD with the DPM software - User's Manual in English
o Multiple-Language Support With Free Software Upgrades And User's Manuals - European languages, Chinese, Japanese, Korean
o Optional Live Automatic Image Analysis (Advanced Version) - Dots, Lines, Text, Barcodes, Shapes, Satellites, Voids, Graininess, Mottling and more
o Applications Are Endless - Print quality, Paper structure, Coating, Textile, Forensic, Medical, Electronics, Agricultural, ...
If you would like more information please call:
1-800-762-2478
|
|
|
|
|
|
|
