ChekVolt(TM) Voltage Portal Now C-UL Listed |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Grace Engineered Products, Inc.
5000 Tremont Ave Ste 203
Davenport, IA, 52807
USA
Press release date: March 30, 2007

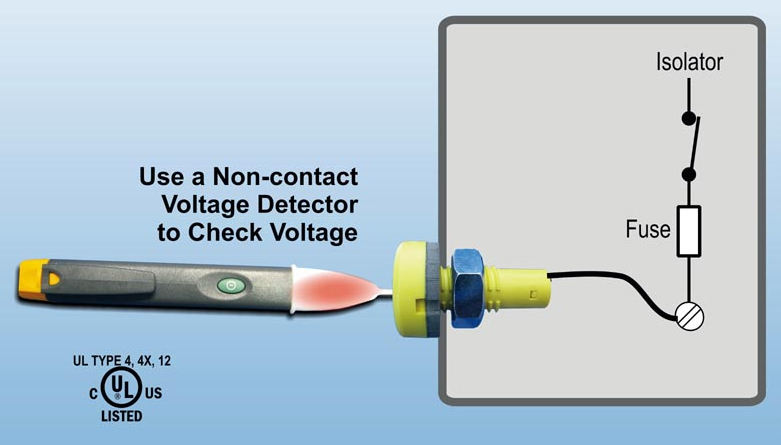

[Davenport, IA: March 30, 2007] - ChekVolt(TM), now C-UL listed, allows for NEMA 12/4/4X installations and is designed to increase electrical safety by diminishing the risk of arc flash. ChekVolt(TM) provides maintenance personnel a no-touch voltage portal on the outside of electrical enclosures. The ChekVolt(TM) interface, which is externally mounted on and internally wired to an electrical panel, allows maintenance personnel to use a non-contact voltage detector 'pen' to verify line voltage before and after a main disconnect is opened. This ability to pre-verify electrical isolation prior to opening an electrical panel puts an additional safety barrier between people and hazardous voltage.
Maintenance people often carry non-contact voltage detector 'pens' to quickly verify the presence of voltage in a conductor. These devices beep or flash in the presence of voltage. The ChekVolt(TM) simply extends the line voltage from the main disconnect (or other voltage source) through a wire into an encapsulated non-metallic assembly fastened to the enclosure exterior. For a low cost and reliable installation, the single point ChekVolt(TM) R-1A has 6' leads, mounts into a 0.50" (13mm) drilled hole, and can be ordered with a full line of bright yellow nameplates.
Non-contact voltage detectors typically operate from 50/90-1000VAC, which allow users to apply ChekVolt(TM) to single or 3-phase AC power systems. Optional bright yellow nameplates alert personnel to pre-verify every voltage point prior to accessing the panel interior. Nameplates offered include various power system graphics or generic single-phase/3-phase nameplates. For product information on ChekVolt(TM) visit our website: http://grace-eng.com/ChekVolt/Ds-ChekVolt.shtml
Grace Engineered Products also offers the VoltageVision(TM) thru-door voltage indicators. The VoltageVision(TM) (R-3W) Power Warning Alert is a 30mm pushbutton device hardwired into the load side of the main disconnect. Redundant flashing LED's provide external indication of voltage that is inside electrical system enclosures. The R-3W is cost effective and easily installed. Its inherent reliability reduces electrocution risks because it is hardwired to the voltage source and enhances LOTO procedures. The R-3W is "one-size-fits-all" and operates on 3-Phase AC/DC voltage from 40-750VAC/30-1000VDC. The VoltageVision(TM) is C-UL-US Nema 4X listed.
Product Information: http://grace-eng.com/VoltageVision/DS-R-3W.shtml
Grace Engineered Products manufactures GracePort Convenience Interfaces that bring data port connections from the inside of control panels to the outside. Grace provides over 9000 combinations of cables, connectors, and outlets in NEMA 1/12/4/4X, stainless steel, and Nema 7/9 housings. All ports are clearly marked as to their function. Orders are processed on a one-piece minimum with a typical 3-5 day delivery.
www.grace-eng.com
NEW Inside-Outlet(tm) http://grace-eng.com/DS/DS-ExInPlex/DS-ExInPlex.shtml
Brandi Borgstadt Grace Engineered Products 5000 Tremont #203 Davenport, IA 52807, USA 800-280-9517 x20
|
|
|
|
|
|
|
|
|
|
|
|
