CANopen and POWERLINK Now Also Available as X67 High Density Bus Controller |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
B & R Industrial Automation Corp.
1325 Northmeadow Pkwy., S-130
Roswell, GA, 30076
USA
Press release date: December 1, 2008
CANopen has become one of the leading I/O profile standards in the automation industry. Originally designed solely for CAN, it can now also be found in other forms. Particularly in combination with POWERLINK, it expands into the high-performance realm with real-time Ethernet.
New bus controllers have been introduced for both CAN and POWERLINK to round off the existing range of products.
The CAN bus controller meets the CANopen specifications DS 301 and DS 401. Automatic baud rate detection, PDO linking, life/node guarding, emergency objects and many more features are supported. The integrated X2X Link connection makes it possible to connect additional modules. AutoMapping is used to automatically detect these modules, whose data is then placed in the I/O map. 16 digital channels can be configured to operate as digital inputs or outputs, which are then individually directed to M8 connections.

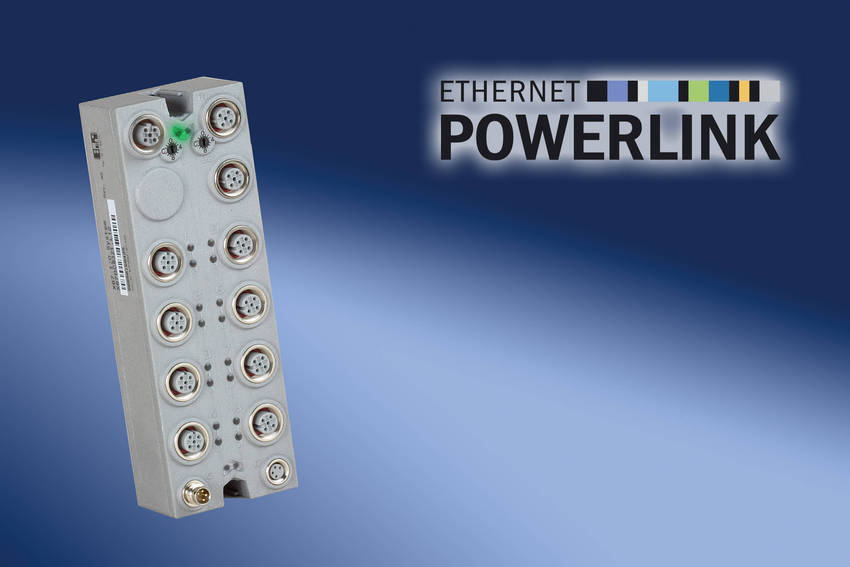

The POWERLINK bus controller, also designed with IP67 protection, has two M12 connections for the fieldbus to allow easy network wiring. An additional M12 serves as the connection for expansion modules. 16 additional digital channels are also provided here, which can each be configured to operate as input or output. Depending on the design, these are directed individually to M8 or in pairs to M12 connections.
Both systems provide the user considerable cost savings by offering an integrated T-connector / integrated hub. The integrated connection for local expansion makes it possible to connect any system component from the B&R series X20, X67 and XV.
B&R company profile B&R is the world's largest and most successful private company in the area of automation equipment manufacturing. The motto "Perfection in Automation" has provided the foundation for the company since B&R was founded in 1979. Today, B&R employs 1,780 employees worldwide and has an exceptional global presence with more than 155 sales offices in over 60 countries.
B&R USA, based in Atlanta, GA, has been working closely with their customers since 1987. Since then, B&R USA has continuously grown as a sales and support organization through both direct sales offices and B&R's unique Automation Partner distribution network. Today, B&R USA has a network of more than 20 offices throughout the USA and is there for its customers locally.
B&R Industrial Automation Corp. Attn: Daniela Stricker 1325 Northmeadow Parkway, S-130 Roswell, GA 30076
|
|
|
|
|
|
|
