Bustronic has over 30 Standard Slot Sizes of 6U and 7U VME64x Backplanes |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Elma Bustronic
44350 Grimmer Blvd.
Fremont, CA, 94538
USA
Press release date: September 8, 2009

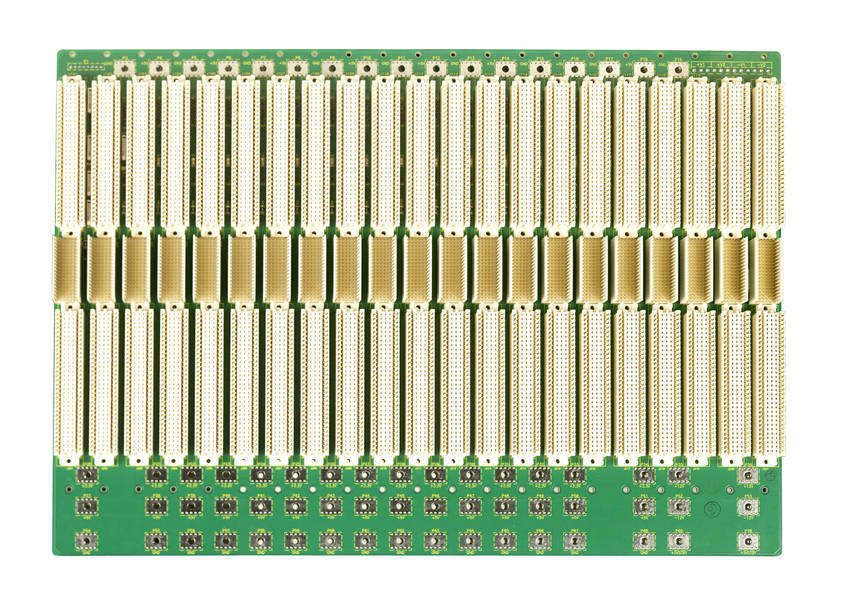

FREMONT, California, Sept 08, 2009 - Elma Bustronic Corporation, an industry leading designer and manufacturer of high performance backplanes has 6U and 7U VME64x backplanes in over 30 slot sizes and hundreds of standard configurations.
Bustronic offers all of the common slot sizes for its 6U and 7U backplanes, which range from 2-21 slots. With various power, connection pintail size, shroud, P0 connector, and other options there are hundreds of standard configurations available. The 7U backplanes have an extra 1U of height for extra power bugs to accommodate higher power requirements. In some configurations, this taller backplane acts as an air baffle to redirect the airflow path to aid cooling. In other chassis designs, the 6U height is required due to space restraints or airflow considerations.
The Bustronic VME64x backplanes come with power bugs for +5V, +3.3V, ±12V, ±V1, ± V2, and GND. Compliant to ANSI/VITA 1.1-1997 VME extension standard and ANSI/VITA 1-1994, the VME64x line features a controlled-impedance stripline design. The backplanes have an active BUSGRANT, IACK daisy chain and optional stiffeners. The standard design features three 2 oz. copper ground planes, which fully shield the backplane, minimize EMI/RFI emissions susceptibility, minimize crosstalk, and maximize power distribution. In addition, the robust outer ground layers provide mechanical and EMI/RFI protection for the backplane.
Pricing for Bustronic's VME64x backplanes depends on size, volume, and configuration. The lead-time is 2-3 weeks ARO.
About ELMA BUSTRONIC:
Founded in 1989, Elma Bustronic specializes in the design and manufacture of high-performance backplanes. Elma Bustronic has a complete line of industry-standard backplanes, including CompactPCI, VME, VME64x, H.110 CT, VXI, VXS, and ATCA. Elma Bustronic's custom design service combines creative engineering, highly sophisticated computer simulation and modern design techniques to offer customized backplanes that meet the most specialized system requirements. A member of the Elma Electronic group, Elma Bustronic is located in Fremont, California. Elma Bustronic is a member of PICMG(TM), VITA, and the StarFabric Trade Association and can be found on the World Wide Web at www.Bustronic.com.
Company Contact: Justin Moll, Elma Bustronic Corporation 510.490.7388 510.490.1853 fax e-mail: justin.moll@elmabustronic.com
|
|
|
|
|
|
