Bluetooth Module for the MAC Motors |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
JVL Industri Elektronik
Blokken 42
Birkeroed, DK-3460
Denmark
Press release date: January 26, 2007

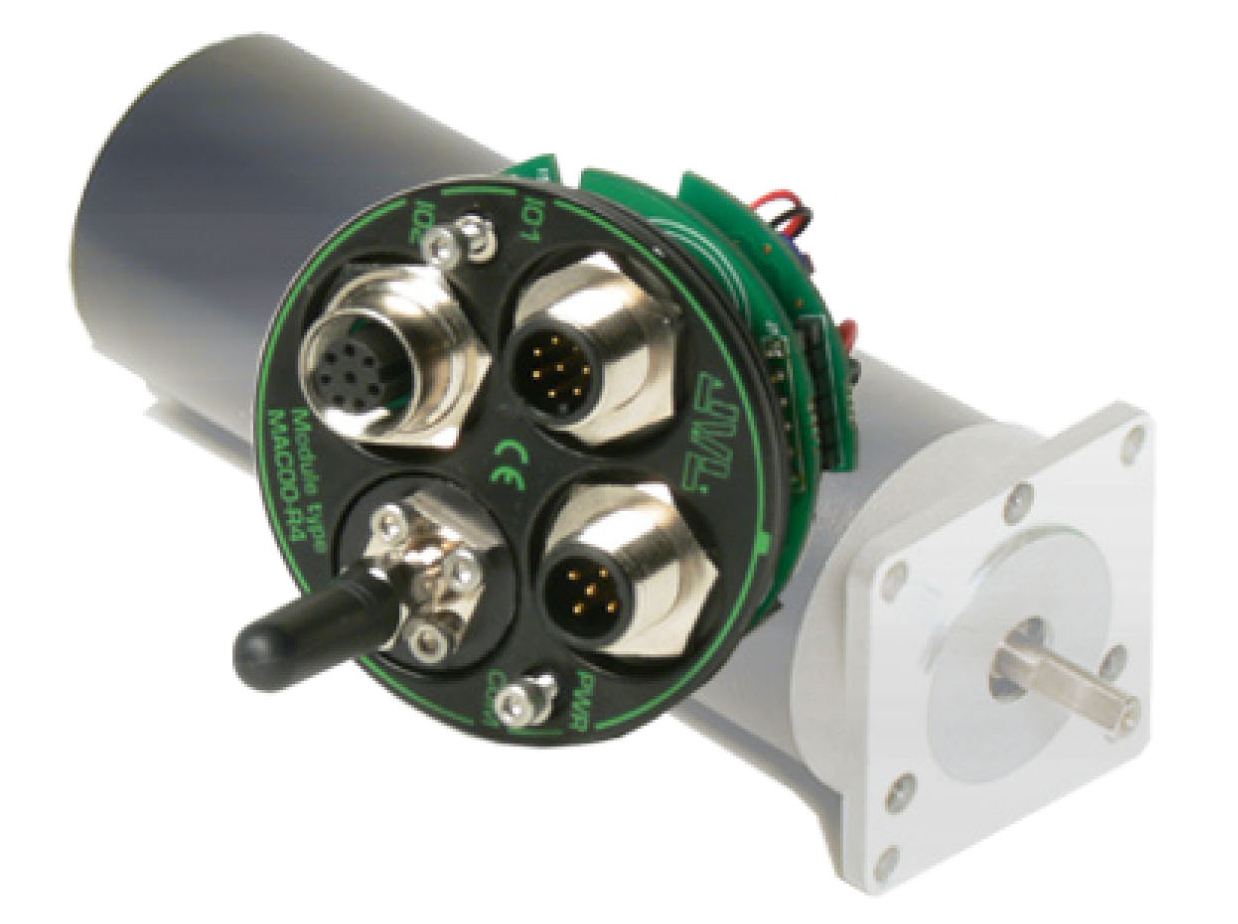

Wireless expansion module for the MAC motors gives total freedom from cables
JVL has recently developed a new expansion module (MAC00-FB4) that enables Bluetooth connection directly to the MAC range of motors. Via the BlueTooth link, the motor can be setup or controlled using the same features that a serial connection offers. Using the module, motor control is typically done from a mobile telephone, PDA or a PC. On a PC, JVL's MacTalk software can be used directly, or commands can be sent from the user's own software. In addition, the BlueTooth module provides the possibility for connection of a local home sensor, 2 digital outputs and a multi-I/O port. The Multi-I/O port can be used for either an encoder output, pulse/direction input, or an encoder input. Connection of power supply and signals is achieved via 2 robust M12 connectors. The Module is equipped with a standard antenna connector, allowing the supplied antenna or other antenna to be used.
|
|
|
|
|
|
|
