Avalue Introduces the New Embedded Boards ECM-CDV, EBM-CDV and EQM-CDV - Based on the Next Generation Intel® Atom(TM) Processor N2000 and D2000 Series and Intel® NM10 Express Chipset
|
|

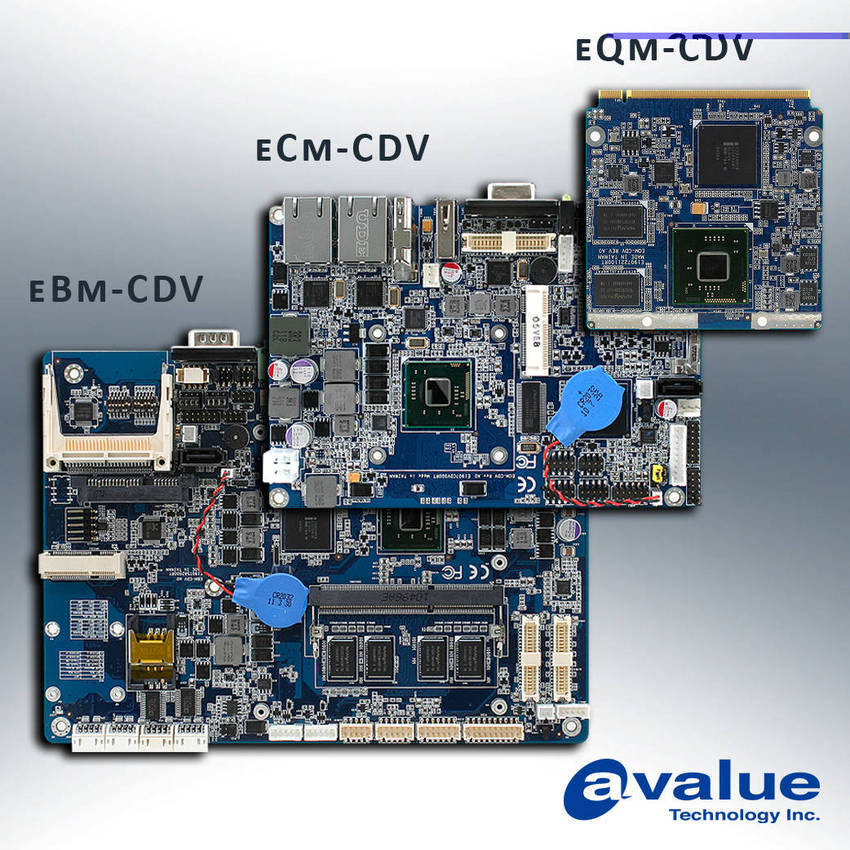

Click Here to Enlarge Picture
|
|
Avalue Technology Inc.
7F, 228, Lian-cheng Road,
Chung Ho City, Taipei, Taiwan
Press release date: December 29, 2011
Taipei, Taiwan - Avalue Technology Inc. (TAIEX: 3479-TW), an Associate member of the Intel® Embedded Alliance, is unveiling new products - ECM-CDV, EBM-CDV and EQM-CDV, which are powered by the next-generation Intel® Atom(TM) processor N2600, N2800 and D2700 and Intel® NM10 Express chipset with low power consumption and high performance.
The newest Intel Atom processor series, formerly codenamed "Cedar Trail," is based on Intel's 32nm process technology, and features a two-chip platform, integrating the Northbridge chip with CPU, and has advanced the Southbridge chip to the higher class. This new two-chip solution will provide system builders with supports for slimmer housing designs. This platform brings enhanced performance, energy efficiency, manageability, security functions and smoother visual experiences.
The 3.5-inch embedded borad, ECM-CDV, supports one 204-pin DDR3 SODIMM system memory with up to 4GB capacity. ECM-CDV supports dual channel 18/24-bit (Noted: 24-bit is enabled on D2700 only) LVDS (with eDP) and multiple display configurations (CRT+LVDS, HDMI+LVDS or CRT+HDMI). The rich I/O deployment includes 1 SATA, 2 COM, 7 USB 2.0 and 16-bit GPIOs, makes various requirements of embedded applications possible. One audio jack supports Realtek ALC892, 7.1-CH audio. Two Intel® 82574L Gigabit LANs and one expansion slot of mini PCIe card (support mSATA) and one CF card slot.
The 5.25-inch embedded board, EBM-CDV, supports one rank of onboard DDR3 system memory with up to 2GB capacity and one 204-pin DDR3 SODIMM system memory with up to 2GB capacity. EBM-CDV supports dual channel 18/24-bit ((Noted: 24-bit is enabled on D2700 only) LVDS (with eDP) and multiple display configurations (CRT+LVDS, HDMI+LVDS or CRT+HDMI). The rich I/O deployment includes a 1 SATA, 6 COM, 8 USB 2.0 and 16-bit GPIOs, makes various requirements of embedded applications possible. One audio jack supports Realtek ALC892, 5.1-CH audio. Two Intel® 82574L Gigabit LANs and one expansion slot of mini PCIe card (support mSATA).
The Q7 Module board, EQM-CDV, supports onboard DDR3 system memory with up to 2GB capacity. EQM-CDV supports single-channel 18-bit LVDS and HDMI+LVDS display configurations to baseboard. For I/O, includes 2 SATA ports to baseboard, 8 USB 2.0 ports to baseboard, one Intel® 82574L Gigabit LANs and three PCIex1.
Avalue's Intel® Atom(TM) processor N2000 and D2000 series boards are able to meet the embedded market requests for low power consumption, and provide customers a better choice for higher level graphics and system performance. Therefore, it is a great choice for customers who need an embedded board for high-performance, multi-media and small form factor and which is suitable for versatile applications, such as POS/KIOSK, digital signage, ordering machine, medical and transportation.
ECM-CDV Features:
o Onboard Intel® Atom(TM) processor D2000 or N2000 series
o Intel® NM10 Express chipset
o One 204-pin DDR3 SODIMM Socket, Supports Up to 4GB DDR3 800/ 1066 SDRAM
o HDMI, VGA, Dual-channel 18/ 24-bit LVDS
o 7.1-CH Audio, Dual Intel® 82574L Gigabit Ethernet
o 1 CF, 1 SATA, 2 COM, 7 USB, 16-bit GPIO
o 1 x Mini PCIe Card (Support mSATA)
o Optional Built-in Touch Screen Interface
o Fanless Operation
EBM-CDV Features:
o Onboard Intel® Atom(TM) processor N2800 or D2700
o Intel® NM10 Express chipset
o Onboard 1G DDR3 Up to 2GB DDR3 800/1066 SDRAM, One 204-pin DDR3 SODIMM Up to 2GB
o Dual View, 2-CH 18/ 24-bit LVDS, HDMI
o Built-in Touch Screen Interface
o 5.1-CH Audio, Dual Intel® 82574L Gigabit Ethernet Controllers
o 1 x Mini PCIe Port (Support mSATA)
o 1 SATA, 6 COM, 8 USB 2.0, 16-bit GPIO
EQM-CDV Features:
o Onboard Intel® Atom processor N2600 or N2800
o Intel® NM10 Express chipset
o Onboard DDR3 800/ 1066, Up to 2GB DDR3 800/ 1066 SDRAM
o Intel® 82574L Gigabit Ethernet
o Single-channel 18-bit LVDS
o 2 SATA, 8 USB 2.0, LPC, 3 PCIex1
o Fanless Operation
More product information, please visits our website at www.avalue.com.tw, or contact with sales@avalue.com.tw
About Avalue Technology
Avalue Technology (TAIEX: 3479-TW) is a professional industrial computer manufacturing company, which is dedicated to developing the x86 architecture products, including embedded computers, single board computers (SBC), Systems-on-Modules/ ETX (SoM/ ETX), industrial motherboards, all-purpose panel PCs, and barebone products, etc. Having expanded, Avalue offers its expertise on PCB/ Assembly/ BIOS version control and after-sales all type of services. An ISO 9001:2008 certified company; Avalue offers assurance to customers in every aspect of its business. With its headquarter located in Taiwan, Avalue has global subsidiary company, including offices in Shanghai, New Jersey, California, Tokyo, and Denmark. In addition, Avalue Technology operates an extensive distribution network to accommodate and serve customers all over the world.
