500°F Gas-Fired Walk-In Oven
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
Press release date: September 21, 2011

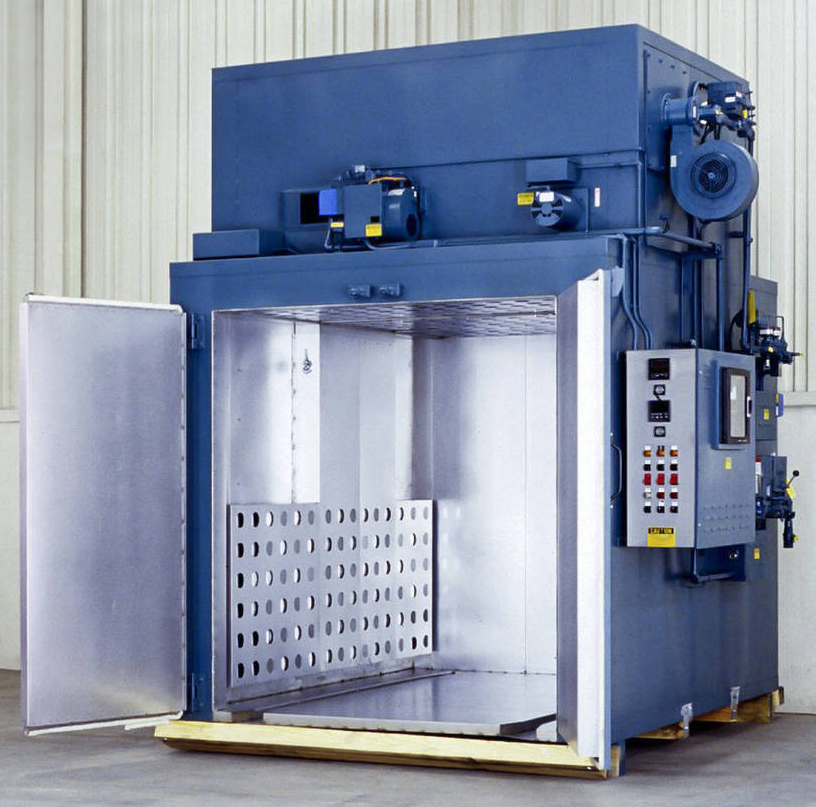

No. 940 is a gas-fired 500°F (~260°C) walk-in oven from Grieve, currently used for curing brake friction materials at the customer's facility. Workspace dimensions are 72" wide x 96" deep x 78" high. 400,000 BTU/HR are installed in a modulating natural gas burner inside the oven, while 700,000 BTU/HR are installed in a modulating natural gas afterburner. The oven's initial exhaust passes through the 1400ºF afterburner. A 6000 CFM, 5-HP recirculating blower provides combination airflow to the workload.
The oven has 4" thick insulated walls, aluminized steel interior and exterior, plus a top-mounted heating chamber. All safety equipment required by IRI, FM and NFPA Standard 96 for gas-heated equipment is onboard, including a 650 CFM, ½-HP powered forced exhauster.
Controls on No. 872 include digital indicating temperature controllers and a 10" diameter circular chart recorder.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546- 9210. Web: www.grievecorp.com. Email: firstname.lastname@example.org. Attention: Frank Calabrese.
