17-4PH St ainless Steel Provides Twice the Torque Capacity |
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Helical Products Co., Inc.
901 W. McCoy Lane, P.O. Box 1069
Santa Maria, CA, 93456 1069
USA
Press release date: March 6, 2006

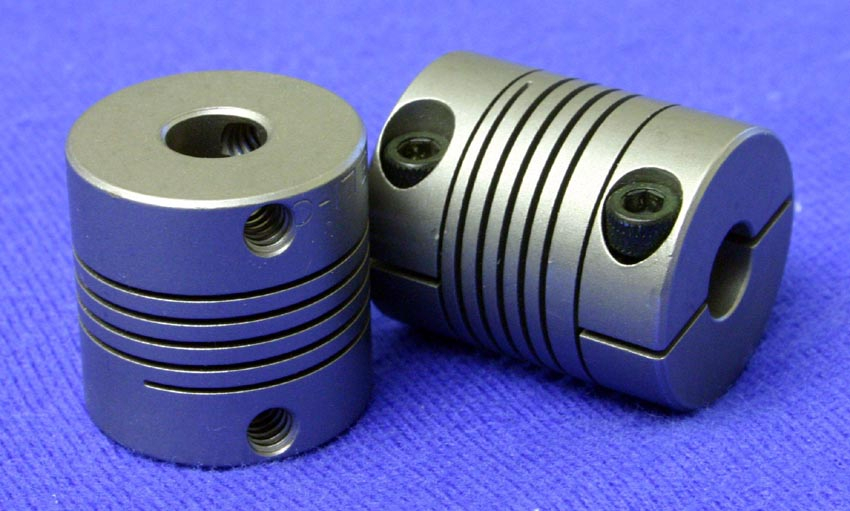

SANTA MARIA, CA., March 6, 2006-Helical's 17-4PH stainless steel couplings are ideal when high strength, excellent fatigue resistance and high torsional stiffness are called for in an application. When compared to both 303 stainless steel and 7075-T6 aluminum, 17-4PH provides twice the torque. Helical is the only company that claims to manufacture beam couplings out of 17-4PH stainless steel. They are machined from a solid piece of material. The H Series and W Series general purpose couplings are ideal for heavy duty uses such as pumps, lead screws, positioning systems, and processing equipment. The MC Series (not shown) has higher torque capacity and torsional stiffness with two sets of flexures for increased parallel offset. It is good for pumps, conveyor systems, and industrial processing equipment where absolute reliability is required.
An array of options, in a variety of OD sizes, enable the designer to tailor each series for their specific application. The H Series accommodates shaft sizes from .059 to 0.75 inches (1.5mm-19mm), the MC Series from .156 to 1.75 inches (3.96mm to 44.45mm), and the W Series (metric) from 3mm to 20mm. All three series include configurations with reliefs, and set screw or integral clamp attachments with inch or metric bores. The W Series is configured with metric fasteners. All 3 series are capable of transmitting torque through 5º if required, and can operate in temperatures up to 600º F (300° C).
For more information contact Helical Products Company, Inc., P.O. Box 1069, Santa Maria, CA 93456. Toll free (877)353-9873, Web site: http//www.Heli-Cal.com.
From: HELICAL PRODUCTS COMPANY, INC. 901 West McCoy Lane P.O. Box 1069 Santa Maria, CA 93456
Contact: Tom Puerling Tel: 805-928-3851 FAX: 805-928-2369
|
|
|
|
|
|
|
