Modular Drive Inverter features 0.75-25 hp rating.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Feb 15, 2012 Featuring quick-connecting plug-in terminals to facilitate installation, Sinamics G120C operates and controls induction motors. Unit includes port for memory card and can also be configured using PC via USB interface. Dual safe inputs control Safe Torque Off function without need for external devices. For network communications, Sinamics G120C supports Profibus, and can also be directly integrated into other communications structures via USS protocol, ModBus RTU, and CAN Open.

DC Drives suit limited-space installations and retrofits.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Feb 06, 2012 Offering complete and fully tested solutions with all necessary components mounted onto back panel, pre-wired Sinamics DC Master (DCM) Base Drives carry 15-850 A continuous current ratings and are suited for new installations as well as retrofits where space is limited. Standard features include input fuses, output DC fuses (regen only), control transformer, AC line contactors, PROFIBUS, BOP20, UL508A Certification, and 65KA SCCR rating.

Multi-Axis Motion Controllers handle complex tasks.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Oct 05, 2011 Suited for production machines involved in jobs from single-axis positioning to complex synchronous applications, Simotion D445-2 DP/PN and D455-2 DP/PN deliver scalability and flexibility needed for changing demands. PLC, motion control, and advanced technology functions are standard, and integrated drive control is based on Siemens Sinamics S120 drives. Capable of supporting up to 128 axes of motion, controller provides onboard Profinet and high-speed I/O interfaces.

Multitasking CNC is optimized for performance, operability.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Sep 29, 2011 Offering range of functions, Sinumerik 840D sl universal control covers machining technologies used in metalworking operations - turning, drilling, milling, grinding, laser machining, nibbling, and punching - and can also be used in multitasking machines. UI provides integrated turning functionality for milling vice-versa, supplemented by measurement cycles featuring animated elements. Other features include touchscreen operation and 19 in. glass front that conforms to IP66 rating.

Power and Signal Cables feature quick release mechanism.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Jun 07, 2011 Designed to protect against vibration shakeout on Motion-Connect® line of power and signal cables, Speed Connect facilitates installation and changeover, even in very restricted space applications. No tools are required; just ¼ turn locks or unlocks bayonet-style connectors. Intended for motion control systems, Motion-Connect cables are fully shielded to prevent EMC noise emissions and protect system from ambient environmental noise.

Servo Motors are suited for motion control applications.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 04, 2011 Exhibiting efficiency levels up to 94%, 1FK7 series integrates encoder with DRIVE-CLiQ interface as well as high inertia design that demonstrates optimized dynamics and control properties. Mechanical decoupling of encoders from motor shaft increases ruggedness and serviceability, while integration of encoder interface electronics allows compact motor design for simplifying machine installation. All models are resistant to vibration and shock.

Power Inverter features 0.55-18.5 kW power range.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 03, 2011 Suitable for global operation in industrial environments, Sinamics G120C can operate in pumps, compressors, fans, mixers, extruders, and handling machines. Unit includes memory card port for commissioning and can also be parameterized using PC via USB interface. Designed for ambient temperatures up to 60°C, inverter integrates Siemens safety technology to ensure drives can be stopped safely. Sensorless vector operation enables precise control for energy-efficient operation of induction motors.

Compact Torque Motors are available with plug-in or solid shaft.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 03, 2011 Series 1FW3 torque motors are available in plug-in shaft version with axis heights of 150, 200, and 280 mm, while solid shaft models are offered for axis heights of 150 and 200 mm. Both versions have rated torque rotational range from 100-7,000 Nm. At height of 280 mm, rated speed range is from 250-600 rpm, suiting motors for use as roller drives. Units are water-cooled and rated power range for all versions is from 3-380 kW.

Asynchronous Motors cover efficiency classes IE2 and IE3.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 02, 2011 General Purpose and Severe Duty motors are offered across High Efficiency (IE2) and Premium Efficiency (IE3) classes, covering application range of EU Regulation 640/2009 from 750 W to 375 kW. IE3 motors use rotor technology and are more compact than IE2 versions. General Purpose motors come with aluminum housings, 80-160 shaft heights, and output of 550 W to 22 kW, while Severe Duty versions have cast iron housing, 100-315 shaft heights, and power range of 2.2 kW to 375 kW.

Asynchronous Motors are offered with cast iron housings.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Mar 02, 2011 Suited for applications in production and process industries, 1LE1 Severe Duty series includes models rated for European energy efficiency classes IE2 and IE3. EISA-certified versions are also available for NAFTA market, and performance range is 2.2-200 kW. Housings withstand industrial environments, and motors are available with 100-315 shaft heights. Operating concept with terminal boxes divided at angle makes terminals accessible and reduces installation time.

Distributed Drive suits material handling applications.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Dec 14, 2010 Offering plug-and-play power and control, Sinamics® G110D operates with pumps, fans, compressors, and other industrial equipment. Drive is suited for either direct communication with PLC or control via I/O inputs. Housed in IP65 metal enclosure, unit can be installed in close proximity to motors where dust and water ingression are of concern. Optional Intelligent Operator Panel enables text application setup with alarm status alerts and resolution advice for troubleshooting.

Spindle Motors combine induction and servo technologies.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Sep 27, 2010 Intended for heavy-duty machine tool and motion control applications, Series 1PH8 is available in power range from 2.8-1,340 kW, with solid or hollow shaft to match mechanical interface. Assorted bearing designs enable speeds up to 20,000 rpm, while single stator and rotor design allows modular adaptation of various motor options. Available in forced-air or water-cooled models, motors feature built-in absolute or incremental encoders for high-resolution feedback.

Digital Output Module targets safety applications.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Sep 15, 2010 Measuring 40 mm wide, Simatic ® SM 326 F-DO 10 interfaces with Siemens ET200M modular I/O stations and S7-300 and S7-400 safety-rated controllers. Unit features 10 outputs with output current of 2 A per channel and rated load voltage of 24 Vdc. Module eliminates nuisance tripping with hold last value option and by isolating faults to individual channels. With built-in protection against short-circuit and overload, unit is suitable for magnetic valves, DC contactors, and pilot lamp applications.

Mining Operations Software delivers data logging and reporting solution.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Sep 14, 2010 Featuring data logger, visualization tool, and report generator, Midas v2.0 boosts efficiency of mining machines that use Siemens electrical drives. SQL Server Reporting Services generates predefined and custom reports spanning any time period and covering any number of machines. Real-time monitoring and historical review is facilitated by desktop GUI and user-friendly controls. User screens are based on industry-standard icons to reduce training for non-English speakers.

Mulit-Axis Drive Control Unit manages servo or vector axes.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Sep 14, 2010 With optimized processor, Sinamics® S120 CU320-2 manages up to 6 servo or vector axes and handles positioning, safety integrated functions, and drive control charts. For standard applications, up to 12 V/Hz axes can be operated from one CU320-2 control unit. Additionally, drive control includes 12 binary inputs, controller-to-controller communications, and Ethernet port that expands programming options.

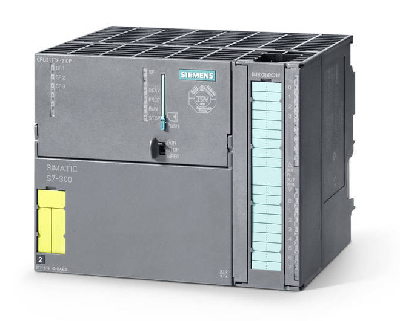

Motion Controller meets all relevant safety standards.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Aug 26, 2010 Intended for plant floor, Simatic® CPU 317TF-2DP supports applications ranging from controlled single-axis positioning to complex, synchronized sequences of motion, such as geared synchronous motion and curve synchronization. Unit accepts centralized and distributed fail-safe I/O and fail-safe drives according to PROFIsafe. Step 7 option package, supporting simultaneous processing of up to 64 technology objects, meets engineering requirements for programming and commissioning of all functions.

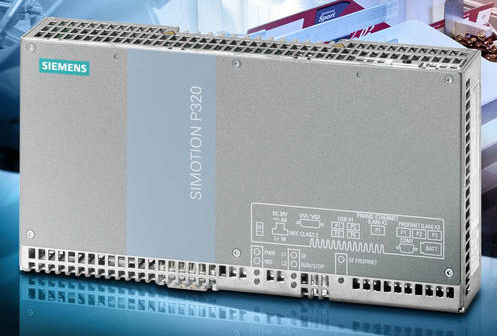

Motion Control System includes solid-state, embedded PC.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Aug 26, 2010 Providing maintenance-free controls, Simotion® P320-3 incorporates PC with DDR3 memory and Intel® Core2 CPU. Motion control system accommodates centralized or decentralized machine concepts for PC-based applications or those that require compact dimensions. Multiple onboard interfaces support communication over Profinet as well as 10/100/1000 Mb Ethernet interfaces. Also provided, 4 USB interfaces facilitate connection of other devices, while DVI port enables display/monitor attachment.

High-Inertia Servomotors provide stall torque from 3-20 Nm.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Jul 01, 2010 Rated IP64 or IP65 with IP67 flange, self-cooled 1FK7-HI Series is available with plain or keyed shaft, holding brake, and 22-bit incremental or absolute encoders. Mechanical decoupler between motor and encoder shaft protects encoder from mechanical vibrations. If encoder needs to be exchanged, device automatically aligns encoder signal to rotor pole position. Drive-Cliq® serial bus and electronic nameplate recognition allow virtual plug-n-play operation when paired to Sinamics® S drive platform.

CNC Retrofit Package promotes productivity, efficiency.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Apr 15, 2010 Available for 3-axis milling or true 2-axis turning machines, Sinumerik 802D sl retrofit package is based on Sinumerik 802D sl operator panel-based control system, which combines NC, PLC, and HMI in one maintenance-free unit. CNC machine tool retrofit package has 10.4 in. color TFT display, graphical support for machining cycles and simulation, USB interface, and remote diagnostic capabilities. This control-only retrofit maintains and integrates machine's current motors and drives.

Tunable Diode Laser System measures gas concentrations.

Siemens Industry, Inc.    Elk Grove Village, IL 60007
Dec 18, 2009 Available in FM 1D1 and ATEX versions for Zones I and II, Sitrans SL combines benefits of tunable diode laser technology with direct operating mode close to process. Non-interfering inline reference cell enables laser locking independent of process gas concentration. Laser light is sent from transmitter, through process gas, and arrives at detector on receiver side. Since bandwidth of laser light is narrow, only gas component of interest will interact with it, providing accurate O2 analysis.
