Multilayer Organic RF Inductors range from 1-32 nH.

AVX Corp.    Myrtle Beach, SC 29578
Sep 10, 2012 Featuring 0402 case size, RoHS-compliant RF Inductors are based on patented MLO(TM) multilayer low loss organic technology. Units offer 100% tin finish, are rated for operation from -55 to 125°C, and can support frequencies above 1 GHz. Expansion-matched to printed circuit boards, devices are suitable for RF power amplifiers, low noise amplifiers, filter networks, and MRI systems.

Resistive Products suit high power applications.

AVX Corp.    Myrtle Beach, SC 29578
Jun 11, 2012 Featuring power handling from 4-800 W, Thin Film Resistive products include resistors, terminations, and attenuators, available in variety of sizes and termination styles, including flange, leaded, and surface mount. Resistors provide consistent values from 10-20 W. Additionally, series includes several BeO-free resistors, terminations, and attenuators, which feature 100% thin film process, aluminum nitride substrates, and power rating of 4-250 W.

Insulation Displacement Connectors offer gas-tight contacts.

AVX Corp.    Myrtle Beach, SC 29578
May 25, 2012 Supporting wire gauges from 14-28 AWG, Insulation Displacement Connectors feature solder-free wire-to-PCB connection scheme. Phosphor bronze contact system delivers true gas-tight connection for both stranded and solid discrete wires. Operating from -40 to +125°C, automotive-performance tested IDCs can handle up to 6 A and are suited for sensors, portable electronics, smart meters, building electronics, lighting, and medical applications.

Wire-to-Wire Connectors suit junction box applications.

AVX Corp.    Myrtle Beach, SC 29578
May 25, 2012 Supporting wire gauges from 18-26 AWG with up to 8 positions, 9286 Series connects numerous wires together electrically, creating junction box. Single power, ground, or signal wire can be branched out to run multiple devices/units identically. Pushbutton activation allows for stripped solid or stranded wires to be inserted and removed or replaced. Featuring 4.00 mm pitch, reusable connectors feature 8 A current rating and operate from -40 to +125°C.

Automotive Varistors provide multiple-strike protection.

AVX Corp.    Myrtle Beach, SC 29578
May 11, 2012 Designed specifically for FlexRay(TM) Communication BUS Systems used in automotive applications, AEC-Q200 qualified Flexray Automotive Varistor Series combines ESD protection with EMI/RF filtering and insertion loss characteristics to protect against transients on high-speed data lines up to 10 Mbps. Low profile 0402 devices also provide protection during jump-start and are capable of withstanding 1,000 successive strikes of ESD at 8 kV per IEC 61000-4-2.

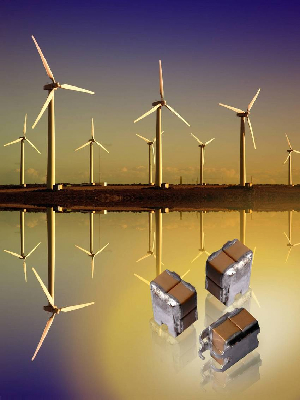

Miniature SMPS Capacitors feature double-stacked construction.

AVX Corp.    Myrtle Beach, SC 29578
Apr 25, 2011 Stacked vertically and horizontally, TurboCap(TM) Series is available in X7R dielectric with voltage range of 50-100 V and capacitance value of 100 µF. Switch mode power supply capacitors are suited for DC/DC converters, hybrid vehicles, and military/COTS Plus power supplies, as well as medical electronics equipment, industrial equipment, telecom and alternate energy applications. Lead frame technology places ceramic tip up off board to minimize cracking issues.

Switch Mode Power Supply Capacitors are RoHS-compliant.

AVX Corp.    Myrtle Beach, SC 29578
Mar 23, 2011 Utilizing Base Metal Electrode technology and vertically stacked construction, TurboCap(TM) Series features voltage range of 50-100 V with capacitance values up to 220 µF. Units are assembled using lead frame technology, which places ceramic up off board and minimizes cracking issues as well as susceptibility to shock and vibrations. Available in X7R dielectric, capacitors are suited for DC/DC converters, hybrid vehicles, military/COTS Plus power supplies, and industrial equipment.

Automotive Varistors are qualified to AEC Q200 standards.

AVX Corp.    Myrtle Beach, SC 29578
Mar 03, 2011 Comprised of automotive-specific varistors tested to Load Dump and Jump Start requirements, TransGuard® VCAS Series provides bi-directional protection and is print controlled to include users in product modification. Voltage ratings range from 16-85 Vdc, and case sizes are offered from 0402-1210. Applications include CAN-based module, sensor, module load dump protection, and motor/inductive load transient suppression in diverse range of vehicles.

Feedthru Filters address automotive EMI concerns.

AVX Corp.    Myrtle Beach, SC 29578
Feb 24, 2011 Featuring miniature surface mount design, LC T configured FeedThru Filters provide design engineers with consistent broadband EMI filtering for critical drive by wire applications such as throttle and braking. AEC Q200-qualified units typically provide -30 dB of attenuation across 300 MHz frequency spectrum. Response can start as low as 75 MHz or end as high as 1,500 MHz. Current ratings range from 2 A steady state in 0805 package to 5 A steady state in 1206 package.

Tantalum Capacitor features 3,300 µF, 4 V rating.

AVX Corp.    Myrtle Beach, SC 29578
Nov 23, 2010 Featuring 2 mm profile and low ESR of 55 mW, PulseCap(TM) 3,300 µF Capacitor is suited for PCMCIA/USB wireless express cards and power backup in solid state drives. Surface mount unit uses undertab termination style, where traditional J leads are replaced by terminations that do not protrude outside of outline of case, enabling parts to be positioned closely together. Operating from -55 to +125°C, RoHS-compliant capacitor withstands soldering profile of 3x reflow at 260°C.

Miniature Land Grid Array Fuse provides 125 mA current rating.

AVX Corp.    Myrtle Beach, SC 29578
Sep 06, 2010 Accu-Guard® Low Current Series includes 0402 fuse, which utilizes thin film land grid array (LGA) and thin-film technologies that allows precise control of component electrical and physical characteristics. Suited for handheld devices, UL E141069-approved and RoHS-compliant product features fusing resistance of greater than 1 MW. Nickel solder coating is compatible with automatic soldering technologies.

Discrete IDC Wire-to-Board Connector carries up to 6 A.

AVX Corp.    Myrtle Beach, SC 29578
Aug 06, 2010 Suited for applications requiring one wire to connect to PCB, 9176-400 Series provides SMT termination point for 22-24 AWG wires. Individual contacts can be located anywhere on PCB, promoting design freedom. Tested to automotive levels of shock, vibration, and temperature cycling, product enables range of devices to be connected to PCB without soldering. IDC contact provides gas-tight connection to wire, and optional cap provides positive strain relief in severe vibration applications.

Low Insertion Force Connectors have 0.5 mm pitch.

AVX Corp.    Myrtle Beach, SC 29578
Jun 29, 2010 Low-profile 6284 Series FFC/FPC connectors have dual-contact arrangement to ease positioning and insertion. Available with 8-60 positions, they are suited for audio/video/recording devices, set-top boxes, satellite receivers, as well as medical applications and industrial test and measurement equipment. Units operate over temperature range of -40 to +85ºC, which can be extended to +105ºC for automotive applications.

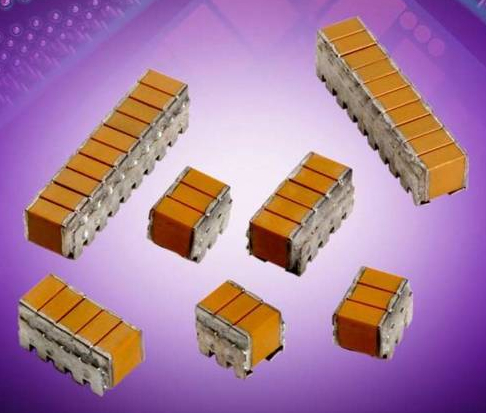

Lead-Free SMPS Stacked Capacitors offer high capacitance values.

AVX Corp.    Myrtle Beach, SC 29578
Jun 21, 2010 Lead-free, RM Series switch mode power supply (SMPS) stacked capacitors can be used as snubber capacitors on input and output of power supplies. Rugged units provide high capacitance values with low ESR ratings for high-current and high-ripple telecom power, industrial power, DC/DC converter, and hybrid automotive applications.

Compact Multilayer Varistors offer capacitance to 150 pF.

AVX Corp.    Myrtle Beach, SC 29578
Jun 02, 2010 Including 125 and 150 pF versions, miniature TransGuard® 0201 Series MLVs provide multiple strike capability and are able to withstand 1,000 strikes at 8 kV of contact. They feature sub 1 nsec response time to ESD strike, 5.6 V rating, and have leakage current of less than 5 µA at rated voltage. Offering bi-directional transient voltage suppression with low insertion loss, devices are suited for handheld devices, as well as embedded components such as hearing aids and camera modules.

Thin Film Low Pass Filter suits high frequency applications.

AVX Corp.    Myrtle Beach, SC 29578
May 28, 2010 Available in miniature 0402 case sizes with LGA termination for frequencies from 787 MHz to 5.5 GHz, LP0402N Series enhances harmonic performance for WiMAX, WiBro, and W-LAN applications. Products are based on thin film multi-layer technology and provide minimal insertion loss and optimal attenuation at second and third harmonics in 0402 case size. Filters are designed specifically to improve signal-to-noise ratio in wireless communication systems.

SMPS Capacitors minimize board space requirements.

AVX Corp.    Myrtle Beach, SC 29578
May 28, 2010 TurboCap(TM) switch mode power supply (SMPS) capacitors help designers reduce component count and board space as well as maintain benefits such as low ESR/ESL, ability to withstand transients, and ability to handle large amounts of power. Offered in 100 V/47 µF, 25 V/220 µF, and 50 V/100 µF versions, series features ceramic placed up off of board to minimize cracking issues as well as susceptibility to shock and vibrations.

Polymer Tantalum Capacitors offer 10 µF nominal capacitance.

AVX Corp.    Myrtle Beach, SC 29578
May 26, 2010 Housed in 6.0 x 3.2 x 2.6 mm package with conductive polymer cathode, TCJ Series features operating voltage of 35 V and is suited for DC/DC converters supplying power for LCD TVs, base stations, rectifiers, switching hubs, routers, and line filters. Surface mount units require derating by only 20% up to 85°C, enabling use at 28 V for additional applications. Operating from -55 to +105°C, capacitors feature halogen-free, environmentally compliant design.

Insulation Displacement Connectors eliminate soldering.

AVX Corp.    Myrtle Beach, SC 29578
May 24, 2010 Consisting of standalone, surface mount discrete wire IDC contact and cap, 9176 Series allows wide range of devices to be connected to PCB without soldering. IDC contact provides gas-tight connection to wire conductor, while optional cap provides positive strain relief, even in harsh conditions. Suited for LED lighting applications, connectors support current rating of 10 A and accept 18-24 AWG wires with insulation diameter from 1.1-2.1 mm.

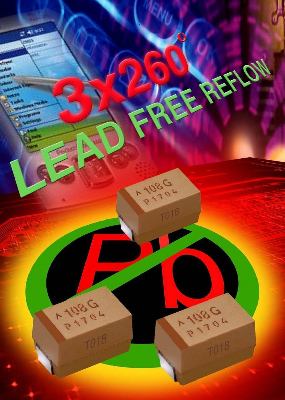

High Capacitance Tantalum Capacitors have low profile design.

AVX Corp.    Myrtle Beach, SC 29578
May 21, 2010 With max case height of 2 mm, PulseCap(TM) capacitors are designed to boost transmitter power in reduced-height applications such as SSDs, PCMCIA/USB wireless express cards, and wireless pulse applications. They are available in 2 case sizes; 6 (14.5 x 7.5 x 2.0 mm) and 4 (7.3 x 6.1 x 2.0 mm), and are rated from 1,000-3,300 µF with voltage rating of 4-10 V. RoHS-compliant devices operate at -55 to +125°C and are capable of withstanding soldering profile of 3x reflow at 260°C.
