Brushless Servo Motors suit space-restricted applications.

AC Technology Corp.    Uxbridge, MA 01569 2001
Oct 19, 2006 Maintenance-free MUS Series is fitted with high flux density Neodymium Iron Boron magnets, reducing rotor inertia. Motors cover torque range from 380 W to 3.5 kW and feature torque-to-inertia ratio that promotes acceleration and dynamic responses. Design and location of thermal sensor eliminate risk of overheating and demagnetizing.

Vector Drives offer multiple communication options.

AC Technology Corp.    Uxbridge, MA 01569 2001
Sep 29, 2006 With power range up to 25 hp and input voltage from 120 Vac, 1-phase to 600 Vac, 3-phase, SMVector Drives provide 4 modes of operation, including V/Hz, Enhanced V/Hz, Vector Speed, and Torque. Communication options include RS-485/Modbus, CANopen, and DeviceNet. Offering auto-tuning, low-speed control, and dynamic speed regulation, drives are suited for packaging machinery, food processing machinery, material handling/conveying systems, and HVAC systems.

Variable Frequency Drive has dynamic speed regulation.

AC Technology Corp.    Uxbridge, MA 01569 2001
May 23, 2006 Featuring power range up to 20 hp and input voltage range from 120 Vac 1-phase to 600 Vac 3-phase, SMVector Drive is designed for packaging and food processing machinery, material handling/conveying, and HVAC systems. Modes of operation include V/Hz, Enhanced V/Hz, Vector Speed, and Torque. SMVector also includes Electronic Programming Module, which is drive's memory in removable chip that enables users to program multiple drives in seconds.

Variable Speed AC Drives feature a removable memory chip.

AC Technology Corp.    Uxbridge, MA 01569 2001
Jul 29, 2003 Offering controlled start-up and overload protection, smd Series drives incorporate removable memory chips and desktop programming modules that reduce programming and service time. Controls on front are provided for speed adjustment and basic programming. Additional features include adjustable slip compensation, voltage boost, and DC injection braking.

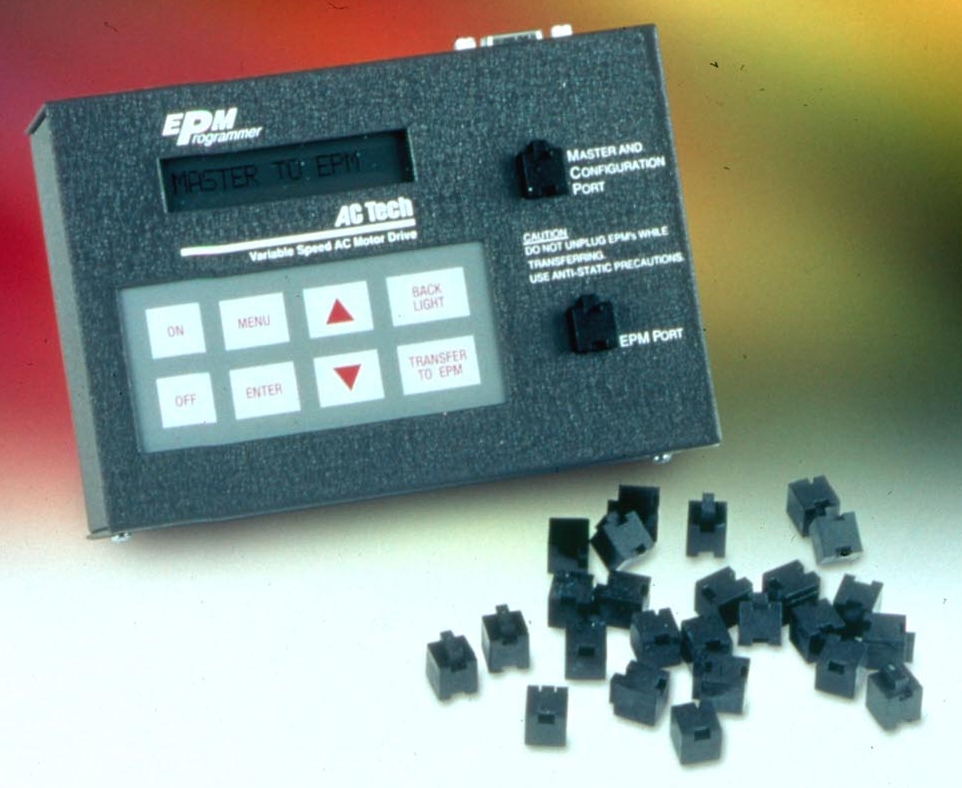

Module System speeds drive programming.

AC Technology Corp.    Uxbridge, MA 01569 2001
Apr 04, 2002 Electronic Programming Module (EPM) System consists of memory chip that plugs into front of SC Series drive and hand-held EPM Programmer. Programming changes can be made from drive's front keypad, PC, or by plugging drive's EPM into EPM Programmer. Drive profiles can be copied from EPM into Programmer memory. Using EPM Programmer's backlit 16-character LCD display, operator can label and store up to 30 files for later review, editing, or transfer.

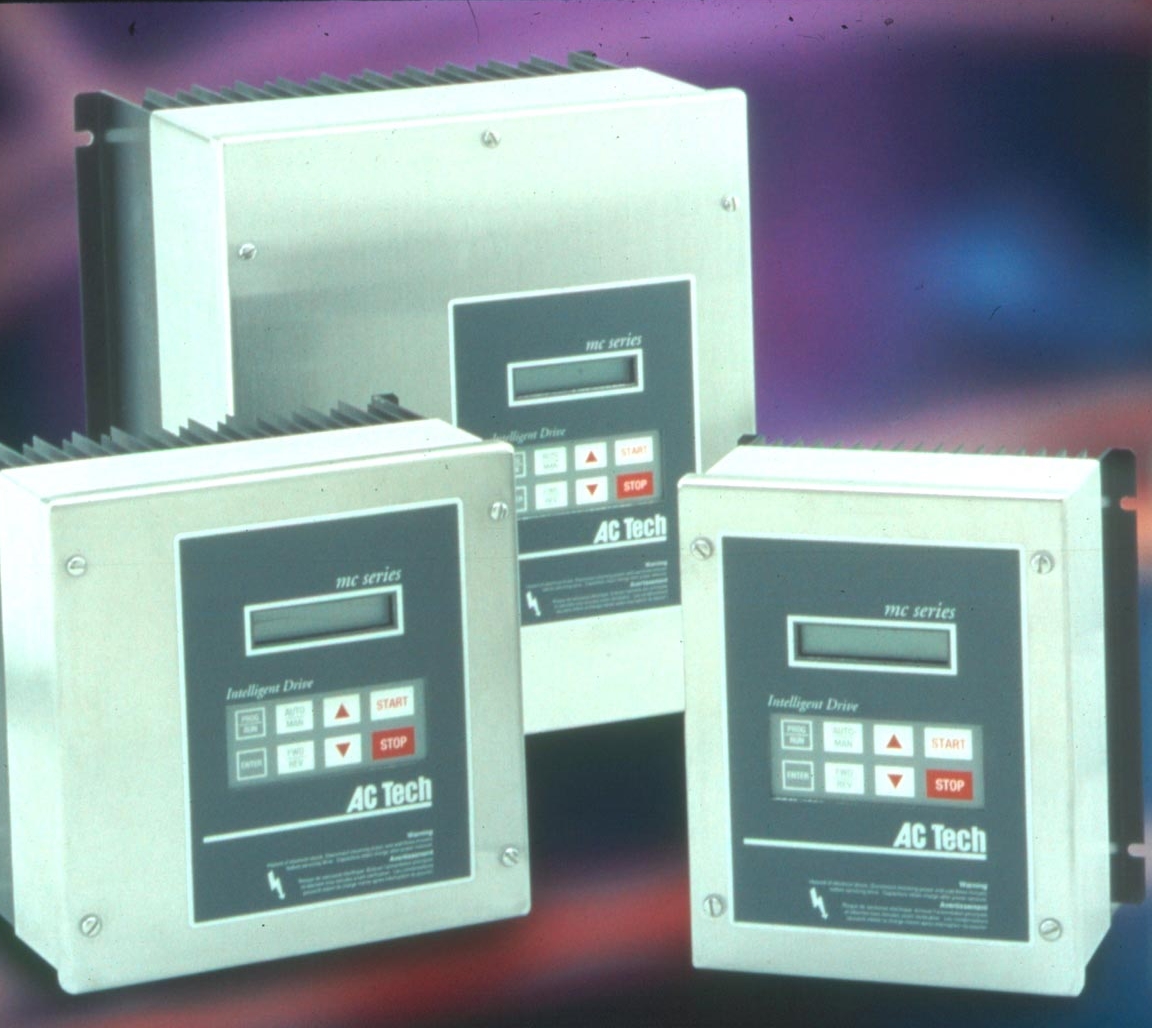

Microdrives deliver constant and variable torque.

AC Technology Corp.    Uxbridge, MA 01569 2001
Dec 19, 2001 MC 4X stainless steel enclosed microdrives use external heatsinks for natural convection cooling. Models range in power from fractional to 20 HP and voltages are 240, 480, and 590 Vac. Features include 4 pre-set speeds; 2 skip speeds with adjustable bandwidth; PID setpoint control for temperature, pressure, and flow; and either Modbus or Metasys serial communication protocol. Control board has surface-mount components and integrated Intel 196 processor.

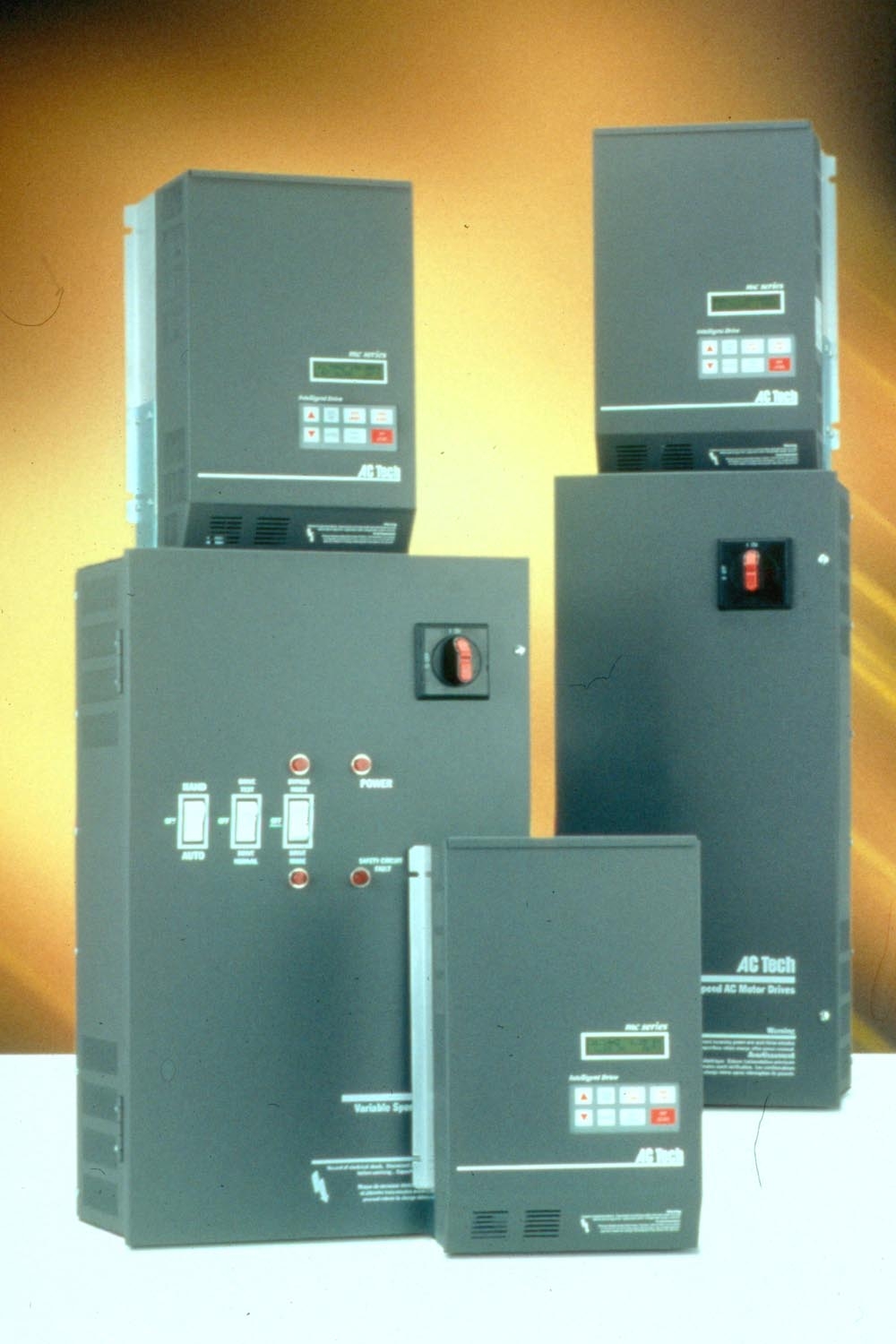

HVAC Drives can be programmed for any application.

AC Technology Corp.    Uxbridge, MA 01569 2001
Dec 05, 2001 MCH Series can be used for centrifugal fans, blowers, pumps and cooling towers. Programming is via front panel keypad and 32-character, 2-line, English language backlit display. Drives have PID control, V/Hz profile for centrifugal loads, 66 programmable parameters, and RS485 communications. Options include input disconnect or circuit breaker, line reactor, and manual or automatic three-contactor bypass. Drives are available from 1-250 hp.
