Solids-from-Liquid Centrifuges use media-free filtration.

Eriez Magnetics    Erie, PA 16506
Nov 26, 2012 Available in manually cleaned basket style with reusable liner, or fully automatic self-cleaning design for media-free filtration, Solids-from-Liquid Centrifuges remove metal chips and fines that collect in machine tool sumps and large central systems. Whether used on single machine, component, or as supplement to complete paper media filtration/recycling system, centrifuges can remove solids typically missed by barrier filtration and minimize or eliminate filter paper, bags, and cartridges.

Metal Separator is maximized for sensitivity.

Eriez Magnetics    Erie, PA 16506
Nov 20, 2012 Available in 6 pipe sizes from 3.15–9.84 in., Model FF4 is primarily used in plastics and food industries to inspect dry bulk products under gravity free-fall conditions. System detects all ferrous and nonferrous metal contamination, even when enclosed in product, and rejects metal contaminants through Quick Flap. In addition to separate detection and reject valves, features include automatic or manual product compensation as well as EMI and vibration resistance.

Fluid Reclamation Machine features portable, inline design.

Eriez Magnetics    Erie, PA 16506
Oct 15, 2012 Utilizing 3-step process, Hydroflow® SumpDoc™ provides complete coolant restoration and rejuvenation treatment of metalworking fluids in machine tool sump with minimal operator interface. System includes sump cleaner for removal of sludge and solids 50 microns and larger, pleated bag filter for removal of solids down to 10 micron, continuous flow tramp oil coalescer, high speed centrifuge for removal of emulsified tramp oil and fines down to 3–5 micron, ozone generator, and coolant makeup system.

Fluid Reclamation Machine eliminates production interruption.

Eriez Magnetics    Erie, PA 16506
Aug 16, 2012 With minimal operator interface, SumpDoc(TM) provides complete coolant restoration and rejuvenation treatment of metalworking fluids in machine tool sump with no interruption in production cycle or need to transport fluids. Portable inline machine features sump vac for removal of all sludge and solids 50 microns and larger, pleated bag filter and housing for removal of solids down to 10 microns, and high-speed centrifuge for removal of emulsified tramp oil and fines down to 3-5 microns.

Self-Cleaning Grate In Housing enables automated operation.

Eriez Magnetics    Erie, PA 16506
Aug 10, 2012 Model GH-12 Drawer Grate In Housing integrates Rare Earth magnets that automatically remove fine tramp iron contamination. Suited for applications where process is continuous and cleaning occurs during operation, product cycles each grate row independently to ensure at least one row always remains in product flow. Unit uses single skin tubes housed in dust-tight, stainless steel housing that can be installed in square, rectangular, or round piping.

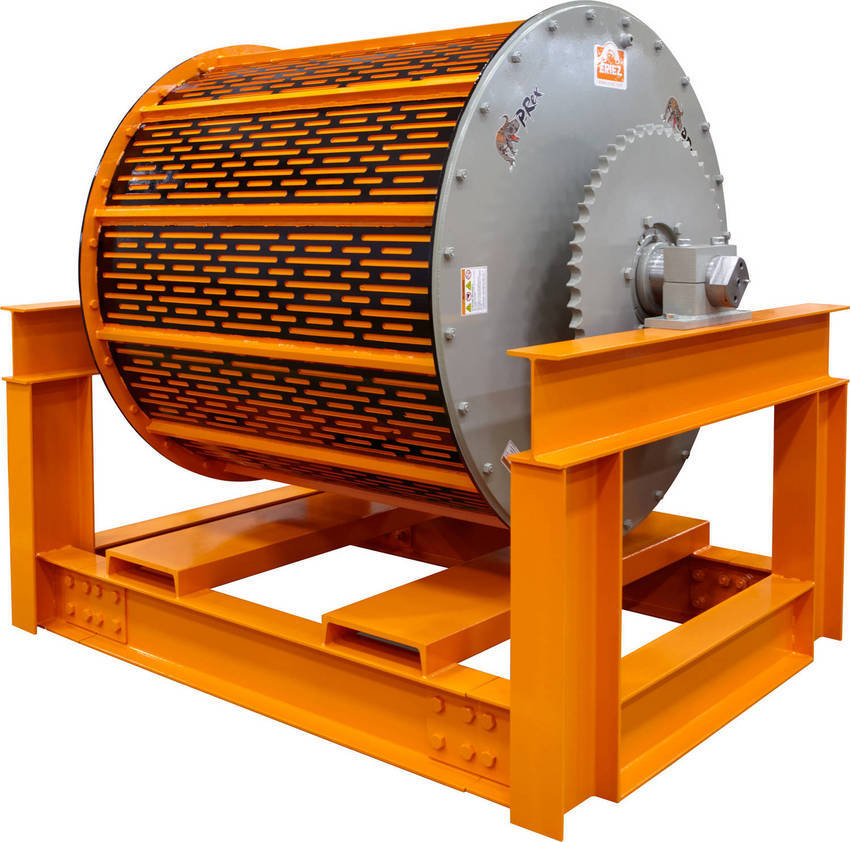

Hybrid Scrap Drum Separator efficiently handles ferrous.

Eriez Magnetics    Erie, PA 16506
May 17, 2012 Offering edge-to-edge separation, electro-permanent EP-Rex(TM) Scrap Drum handles sphere-shaped ferrous (meatballs or knuckles) and delivers degree of strength that benefits scrap recycling operations. There is no transfer point drop in magnetic force, nor is there any decline in performance due to heat rise.

Roll Separators purifies product via powerful magnets.

Eriez Magnetics    Erie, PA 16506
May 14, 2012 Available in single-, double-, and triple-stage versions with non-magnetic or magnetic-rerun, Eriez® Rare Earth Roll Separators feature rolls constructed with neodymium-boron-iron rare earth permanent magnets. High gradient magnetic circuit includes proprietary items designed to produce magnetic field in excess of 21,000 gauss. Capable of recovering weakly magnetic particles and handling feeds from ½ in. to very fine materials, rolls come in 3, 4, and 6 in. dia and widths from 5-60 in.

Reverse Osmosis Systems provide pure, mineral-free water.

Eriez Magnetics    Erie, PA 16506
Mar 12, 2012 Available from 100-10,000 gallons/day, Reverse Osmosis Systems remove up to 98% of dissolved minerals and virtually 100% of colloidal and suspended matter. Pure mineral-free water optimizes performance of water-miscible cutting and grinding fluids. Supplied with multi-stage centrifugal pump, pre-filtration cartridge, and low-pressure switch, water treatment systems feature 3-11 pH range within temperatures of 33-100°F.

X-Ray Visible Plastic Additives promote food safety.

Eriez Magnetics    Erie, PA 16506
Mar 05, 2012 Used to impart x-ray contrast into food contact plastic articles, PolyMag® XRD products can be used to safeguard consumers against plastic-contaminated food products. FDA-compliant product, available in beige-colored pellets, has co-polymer carrier resin that is compatible with various polymers, including polyethylene, polypropylene, TPE, and TPU resins. Detectable plastics are most often pigmented blue, which can be accomplished when using PolyMag XRD.

Electromagnetic Vibratory Feeder incorporates tuning technology.

Eriez Magnetics    Erie, PA 16506
Oct 18, 2011 In addition to electromagnetic design that provides near silent operation, HS-8 features E-Z Tune(TM) technology that lets those who build their own trays reduce time spent tuning feeders. Low-profile design facilitates installation in areas where space is limited, and wedge-shaped body allows feeder arrangement in small diameter weigh scale systems. System can be provided with all stainless steel hardware and also offers rubber isolators and threaded insert to aid mounting.

Metal Separators removes contaminants from pneumatic conveying lines.

Eriez Magnetics    Erie, PA 16506
Sep 29, 2011 Used in vacuum and pressure pipelines, PN Metal Separators remove metal contaminants from pneumatically conveyed materials, plastic pellets, and regrind. Contaminants, even those encapsulated in pellets, are removed via reject mechanism that operates reliably at conveying speeds to ~4,000 fpm without interrupting flow. Modular design enables flexible adaptation to different conveying methods, and options are available to accommodate high temperature, abrasive, and powdery bulk materials.

Ballistic Separator produces low-copper shred.

Eriez Magnetics    Erie, PA 16506
Jul 12, 2011 Using ballistics to separate iron-rich ferrous from mixed metals and waste material in post drum magnet flow, Shred1(TM) Separator delivers 3 distinct fractions. Fraction 1, representing 60-80% of flow, contains less than .2% copper and does not require picking. Fraction 2 represents 20-30% of flow and contains mostly mixed metals, copper, and aluminum with steel housings or cores. Containing 5-7% of flow, Fraction 3 consists of heavy steel objects and light material, such as fluff and rubber.

Rare Earth Drawer Magnets promote separation efficiency.

Eriez Magnetics    Erie, PA 16506
Apr 29, 2011 Eriez® Aftermarket Model PM Rare Earth Drawer Magnets capture and hold fine and weakly magnetic particles, preventing plugged valve gates, machine damage and equipment downtime. Available in 4 sizes, products install in less than 5 minutes and feature guide-rod design that enables use with mild steel housings. Magnets can handle resin temperatures up to 250°F, and close tube spacing lends to effective ferrous removal.

Magnetic Pull Test Kit monitors efficiency of separation equipment.

Eriez Magnetics    Erie, PA 16506
Apr 26, 2011 Eriez Pull Test Kit helps monitor efficiency of magnetic separator by measuring holding force of magnet. This quality assurance device includes one graduated scale, 4 non-magnetic spacers (¼, two ½, and 1 in. thick), one 1/8 x 1 x 3 in. steel plate, one 1/8 x 1 x 3 in. steel plate with attached radius non-magnetic spacer, one 1 in. dia steel ball, and one ¼ in. dia steel ball, all housed in hard plastic case. Kit is designed for use on variety of magnetic separators.

Metal Separator removes metal particles from plastic regrind.

Eriez Magnetics    Erie, PA 16506
Mar 31, 2011 Installed directly above material feed throat of extruder, injection molding or blow molding machine, Model CF removes both magnetic and non-magnetic metal contaminants from slow, downward moving column of material. Separator features automatic self-calibration and monitoring as well as adjustable scanning sensitivity and reject duration. Available in 4 pipe sizes from 2.9-5.9 in. diameter, separator discharges contamination into reject container with air-powered separating slide.

Rugged Metal Detectors suit quarry and mine applications.

Eriez Magnetics    Erie, PA 16506
Feb 09, 2011 Hawk Metalarm Metal Detectors feature coil that offers sensitivity equal to approximately 5% of aperture height, while Eagle detectors have coil that detects ferrous sphere equal to 2% of aperture height. Both microprocessor-based units include self diagnostics and fault indication, as well as variable operating frequency to suit different applications. Integrated Model 3600 control is IP66-rated and supplied with either painted steel or stainless steel enclosure with anti-condensation heater.

Magnetic Separators feature sanitary stainless steel design.

Eriez Magnetics    Erie, PA 16506
Jan 26, 2011 Part of ProGrade® Series, Xtreme(TM) Rare Earth Grates in Housing remove weakly magnetic fine ferrous contamination from dry products such as powders or granules. Units include 2 rows of staggered magnets, 1 in. diameter magnet tubes on 2 in. centers, and glass bead surface finish. Available in 3 different degrees of magnetic strength, separators are suitable for food, chemical, pharmaceutical, and packaging applications where high product purity is essential.

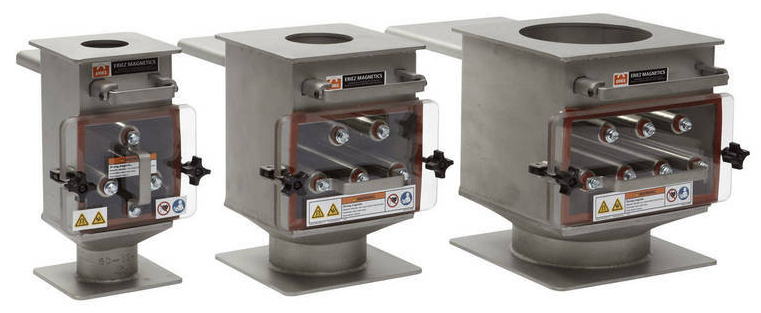

Rare Earth Grate Magnets prevent downstream equipment damage.

Eriez Magnetics    Erie, PA 16506
Dec 22, 2010 PM Grate-in-Housings remove fine ferrous contamination from plastic pellets, flake, and regrind prior to injection molding machine, extruder, or compounding equipment. Magnets come in 3 standard housing sizes to suit application requirements and can even capture and hold pellets with encapsulated ferrous particles. Supplied in stainless steel housing, products feature 2 banks of Rare Earth permanent magnets and are suitable for operating temperatures up to 250°F.

Tramp Metal Detectors offer job-tailored sensitivities.

Eriez Magnetics    Erie, PA 16506
Jun 11, 2010 MPU-based Hawk and Eagle models of Metalarm MA3600 utilize pulse induction technology and are suited for installation in quarries, mines, and other locations. Hawk offers sensitivity to 20% of aperture height, while Eagle is used where high sensitivities are required - nominally 2% of aperture height. Self diagnostics and fault indication are standard on both models, which also offer local or remote on/off and trip counter.

Eddy Current Separators are designed for PET flake recyclers.

Eriez Magnetics    Erie, PA 16506
May 25, 2010 Performing nonferrous particle separation from PET flake, Eddy Current Separators optimize purity and yield for recycling of beverage containers made from polyethylene terephthalate (PET). Recyclers can obtain single-pass aluminum reduction up to 92% and achieve clean PET yield of 97-99% percent. Systems use rare earth magnets arranged into composite shelled rotor that has 22 poles and is balanced to operate up to 3,200 rpm. Normal bearing life is calculated to exceed 15 years.
